SDO HMI 2011-10-23 21:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 23.74 | 0.00 | 13.45 | 23.11 | 332.01 | 23.71 | 310.49 | 0.4887 | -743.5 | -562.9 | |
|
previous
or next observation for the same group /

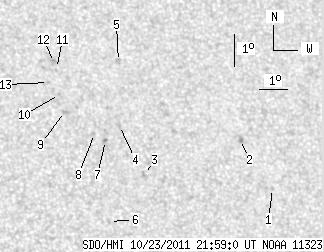

back to the solar disc SDO HMI 2011-10-23 21:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.48 | 0.00 | 0.86 | 20.75 | 336.86 | 28.56 | 301.90 | 0.5288 | -660.0 | -465.2 | |
| 0.00 | 3.04 | 0.00 | 1.77 | 22.31 | 336.02 | 27.73 | 305.22 | 0.5290 | -767.0 | -592.3 | |
| 0.00 | 2.00 | 0.00 | 1.13 | 21.36 | 332.40 | 24.11 | 306.90 | 0.4777 | -738.0 | -525.9 | |
| 0.00 | 2.00 | 0.00 | 1.13 | 22.91 | 331.80 | 23.51 | 310.25 | 0.4834 | -698.0 | -525.3 | |
| 0.00 | 3.13 | 0.00 | 1.79 | 24.92 | 332.16 | 23.87 | 313.19 | 0.5053 | -712.0 | -525.3 | |
| 0.00 | 1.22 | 0.00 | 0.67 | 19.95 | 330.96 | 22.66 | 305.79 | 0.4484 | -715.0 | -538.6 | |
| 0.00 | 1.65 | 0.00 | 0.93 | 22.46 | 331.23 | 22.94 | 310.10 | 0.4728 | -957.0 | -819.3 | |
| 0.00 | 1.13 | 0.00 | 0.63 | 22.69 | 330.88 | 22.59 | 310.89 | 0.4708 | -760.0 | -643.4 | |
| 0.00 | 2.52 | 0.00 | 1.41 | 23.41 | 329.96 | 21.67 | 313.22 | 0.4668 | -851.0 | -728.7 | |
| 0.00 | 0.87 | 0.00 | 0.49 | 23.95 | 329.88 | 21.58 | 314.22 | 0.4711 | -822.0 | -655.2 | |
| 0.00 | 0.61 | 0.00 | 0.34 | 24.77 | 329.92 | 21.63 | 315.52 | 0.4796 | -576.0 | -537.1 | |
| 0.00 | 3.39 | 0.00 | 1.91 | 24.96 | 329.89 | 21.59 | 315.87 | 0.4811 | -650.0 | -384.3 | |
| 0.00 | 0.70 | 0.00 | 0.39 | 24.34 | 329.56 | 21.27 | 315.26 | 0.4714 | -759.0 | -518.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
