SDO HMI 2011-10-23 21:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 17.21 | 0.00 | 8.99 | 17.90 | 320.95 | 12.65 | 314.65 | 0.3181 | 836.3 | 701.2 | |
|
previous
or next observation for the same group /

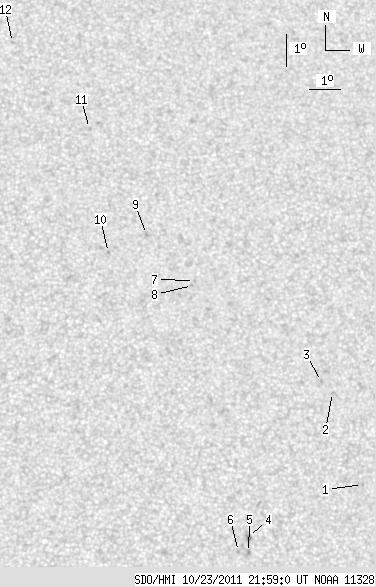

back to the solar disc SDO HMI 2011-10-23 21:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.78 | 0.00 | 0.41 | 14.52 | 325.52 | 17.23 | 300.05 | 0.3327 | 737.0 | 605.8 | |
| 0.00 | 1.13 | 0.00 | 0.60 | 17.33 | 324.79 | 16.50 | 308.25 | 0.3467 | 832.0 | 665.2 | |
| 0.00 | 1.48 | 0.00 | 0.78 | 17.68 | 324.47 | 16.17 | 309.59 | 0.3458 | 925.0 | 696.4 | |
| 0.00 | 3.39 | 0.00 | 1.74 | 13.04 | 321.79 | 13.49 | 301.40 | 0.2676 | 930.0 | 839.4 | |
| 0.00 | 2.69 | 0.00 | 1.38 | 12.56 | 321.76 | 13.47 | 299.85 | 0.2633 | 962.0 | 744.0 | |
| 0.00 | 1.13 | 0.00 | 0.58 | 12.59 | 321.45 | 13.16 | 300.52 | 0.2590 | 894.0 | 699.5 | |
| 0.00 | 0.96 | 0.00 | 0.50 | 20.87 | 320.61 | 12.31 | 323.77 | 0.3387 | 774.0 | 648.4 | |
| 0.00 | 0.61 | 0.00 | 0.32 | 20.71 | 320.53 | 12.24 | 323.65 | 0.3359 | 850.0 | 653.4 | |
| 0.00 | 1.39 | 0.00 | 0.73 | 22.32 | 319.16 | 10.86 | 329.50 | 0.3450 | 784.0 | 657.3 | |
| 0.00 | 0.96 | 0.00 | 0.50 | 21.78 | 317.87 | 9.58 | 331.66 | 0.3270 | 814.0 | 664.3 | |
| 0.00 | 1.39 | 0.00 | 0.74 | 25.69 | 317.53 | 9.24 | 337.61 | 0.3814 | 797.0 | 668.1 | |
| 0.00 | 1.30 | 0.00 | 0.71 | 28.49 | 315.13 | 6.83 | 345.20 | 0.4112 | 737.0 | 535.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
