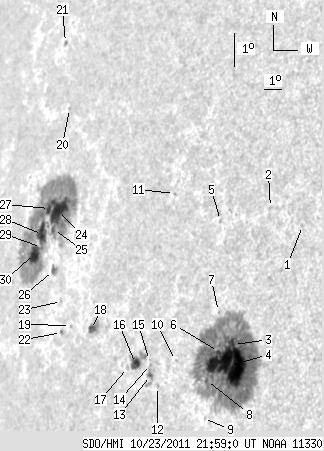

SDO HMI 2011-10-23 21:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 144.12 | 799.45 | 137.69 | 760.85 | 7.83 | 249.58 | -58.71 | 84.08 | 0.8494 | -178.7 | -102.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-23 21:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.96 | 0.00 | 0.74 | 10.69 | 257.86 | -50.44 | 80.41 | 0.7706 | -473.0 | -441.2 | |
| 0.00 | 1.13 | 0.00 | 0.91 | 11.12 | 256.19 | -52.10 | 79.93 | 0.7887 | -172.0 | -234.6 | |
| 0.87 | 447.83 | 0.71 | 369.00 | 6.93 | 255.22 | -53.08 | 85.24 | 0.7986 | -835.4 | -305.6 | |
| 71.10 | -3.00 | 58.43 | -3.00 | 6.29 | 255.11 | -53.18 | 86.04 | 0.7999 | -1043.9 | 999999 | |
| 0.00 | 1.04 | 0.00 | 0.88 | 10.55 | 253.78 | -54.51 | 80.73 | 0.8133 | -418.0 | -338.5 | |
| 0.78 | -3.00 | 0.65 | -3.00 | 6.67 | 254.50 | -53.80 | 85.55 | 0.8061 | -407.8 | 999999 | |
| 0.00 | 0.87 | 0.00 | 0.73 | 7.85 | 254.29 | -54.00 | 84.07 | 0.8080 | -381.0 | -238.6 | |
| 1.56 | -3.00 | 1.32 | -3.00 | 5.76 | 254.02 | -54.28 | 86.65 | 0.8114 | -274.9 | 999999 | |
| 0.00 | 0.61 | 0.00 | 0.51 | 4.62 | 254.01 | -54.29 | 88.05 | 0.8120 | -363.0 | -362.0 | |
| 0.00 | 0.87 | 0.00 | 0.76 | 6.23 | 252.31 | -55.99 | 85.99 | 0.8282 | -389.0 | -387.4 | |
| 0.00 | 0.96 | 0.00 | 0.87 | 11.17 | 251.10 | -57.19 | 80.04 | 0.8393 | -333.0 | -279.5 | |
| 0.00 | 0.87 | 0.00 | 0.78 | 5.39 | 251.46 | -56.84 | 86.97 | 0.8367 | -452.0 | -289.1 | |
| 2.09 | 7.48 | 1.90 | 6.80 | 5.69 | 251.02 | -57.27 | 86.59 | 0.8407 | -400.2 | -251.5 | |
| 0.00 | 0.87 | 0.00 | 0.79 | 6.01 | 250.97 | -57.32 | 86.20 | 0.8411 | 472.0 | 433.8 | |
| 0.00 | 0.78 | 0.00 | 0.71 | 6.13 | 250.90 | -57.40 | 86.06 | 0.8417 | 470.0 | 371.9 | |
| 7.56 | 15.73 | 7.04 | 14.62 | 5.98 | 250.13 | -58.17 | 86.20 | 0.8489 | -513.8 | -349.9 | |
| 0.00 | 1.22 | 0.00 | 1.15 | 5.83 | 249.69 | -58.60 | 86.35 | 0.8530 | -103.0 | -37.9 | |
| 4.35 | 10.78 | 4.38 | 10.82 | 6.78 | 247.34 | -60.95 | 85.13 | 0.8732 | 724.7 | 568.4 | |
| 0.00 | 1.04 | 0.00 | 1.10 | 6.80 | 246.00 | -62.29 | 85.06 | 0.8843 | 440.0 | 424.0 | |
| 0.00 | 0.96 | 0.00 | 1.09 | 13.18 | 243.66 | -64.63 | 77.86 | 0.9017 | -117.0 | -144.9 | |
| 1.22 | 1.83 | 1.45 | 2.18 | 15.09 | 242.31 | -65.99 | 75.77 | 0.9116 | -152.9 | -212.0 | |
| 1.13 | 1.83 | 1.21 | 1.96 | 6.54 | 245.47 | -62.83 | 85.32 | 0.8887 | 337.2 | 230.4 | |
| 0.00 | 1.56 | 0.00 | 1.69 | 7.46 | 245.25 | -63.05 | 84.28 | 0.8902 | 219.0 | 227.2 | |
| 24.25 | 296.06 | 27.04 | 338.15 | 10.12 | 244.21 | -64.09 | 81.27 | 0.8977 | 770.5 | 107.0 | |
| 2.35 | -24.00 | 2.63 | -24.00 | 9.53 | 244.07 | -64.23 | 81.92 | 0.8988 | 655.6 | 999999 | |
| 1.65 | 4.17 | 1.83 | 4.61 | 8.33 | 244.46 | -63.84 | 83.28 | 0.8961 | 500.5 | 371.0 | |
| 2.17 | -24.00 | 2.48 | -24.00 | 10.13 | 243.56 | -64.73 | 81.25 | 0.9025 | 212.0 | 999999 | |
| 11.39 | -24.00 | 13.09 | -24.00 | 9.33 | 243.36 | -64.94 | 82.13 | 0.9042 | 489.4 | 999999 | |
| 1.22 | -24.00 | 1.39 | -24.00 | 8.94 | 243.42 | -64.88 | 82.57 | 0.9038 | 566.4 | 999999 | |
| 10.43 | -24.00 | 12.14 | -24.00 | 8.72 | 242.98 | -65.31 | 82.79 | 0.9070 | 537.7 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
