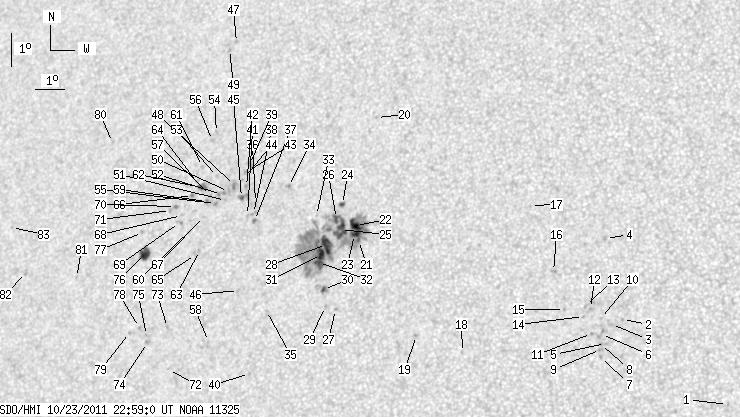

SDO HMI 2011-10-23 22:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 67.89 | 352.86 | 39.08 | 202.62 | 15.50 | 278.95 | -28.79 | 67.62 | 0.5029 | -106.4 | -124.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-23 22:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.96 | 0.00 | 0.49 | 10.94 | 293.19 | -14.55 | 67.36 | 0.2684 | -817.0 | -590.4 | |
| 0.00 | 0.78 | 0.00 | 0.41 | 13.41 | 289.70 | -18.04 | 63.98 | 0.3368 | -876.0 | -676.8 | |
| 0.00 | 0.87 | 0.00 | 0.46 | 13.25 | 289.36 | -18.38 | 64.79 | 0.3408 | -977.0 | -762.5 | |
| 0.00 | 2.26 | 0.00 | 1.20 | 15.84 | 288.94 | -18.81 | 58.61 | 0.3649 | -726.0 | -582.0 | |
| 0.00 | 1.04 | 0.00 | 0.55 | 12.67 | 289.21 | -18.53 | 66.54 | 0.3396 | -834.0 | -703.8 | |
| 0.00 | 3.56 | 0.00 | 1.88 | 12.94 | 289.06 | -18.68 | 65.95 | 0.3434 | -690.0 | -757.3 | |
| 0.00 | 1.39 | 0.00 | 0.73 | 12.24 | 289.08 | -18.66 | 67.85 | 0.3392 | -752.0 | -567.0 | |
| 0.00 | 1.30 | 0.00 | 0.69 | 12.63 | 289.05 | -18.69 | 66.79 | 0.3418 | -927.0 | -763.1 | |
| 0.00 | 1.65 | 0.00 | 0.87 | 12.48 | 289.06 | -18.68 | 67.19 | 0.3408 | -765.0 | -642.2 | |
| 0.00 | 0.96 | 0.00 | 0.50 | 13.42 | 288.99 | -18.75 | 64.73 | 0.3474 | -920.0 | -684.5 | |
| 0.00 | 1.04 | 0.00 | 0.55 | 12.96 | 288.73 | -19.01 | 66.23 | 0.3484 | -932.0 | -773.7 | |
| 0.00 | 0.78 | 0.00 | 0.41 | 13.71 | 288.64 | -19.10 | 64.33 | 0.3543 | -1102.0 | -870.0 | |
| 0.00 | 0.87 | 0.00 | 0.46 | 13.79 | 288.47 | -19.27 | 64.28 | 0.3574 | -739.0 | -550.6 | |
| 0.00 | 1.04 | 0.00 | 0.55 | 13.46 | 288.43 | -19.31 | 65.19 | 0.3558 | -672.0 | -478.2 | |
| 0.00 | 1.04 | 0.00 | 0.55 | 13.65 | 287.80 | -19.94 | 65.32 | 0.3664 | -766.0 | -565.2 | |
| 0.00 | 2.35 | 0.00 | 1.26 | 14.79 | 287.33 | -20.41 | 62.96 | 0.3802 | -774.0 | -646.7 | |
| 0.00 | 0.61 | 0.00 | 0.33 | 16.76 | 286.35 | -21.39 | 59.41 | 0.4074 | -540.0 | -429.7 | |
| 0.00 | 1.39 | 0.00 | 0.75 | 12.25 | 284.57 | -23.18 | 71.33 | 0.4077 | -503.0 | -455.8 | |
| 0.00 | 1.48 | 0.00 | 0.81 | 12.71 | 282.98 | -24.76 | 71.23 | 0.4333 | -794.0 | -580.6 | |
| 0.00 | 0.61 | 0.00 | 0.35 | 19.26 | 280.69 | -27.06 | 59.57 | 0.5001 | -641.0 | -519.7 | |
| 1.04 | 216.64 | 0.59 | 123.22 | 15.49 | 280.66 | -27.08 | 66.78 | 0.4794 | -860.7 | -387.8 | |
| 7.04 | -21.00 | 3.98 | -21.00 | 15.94 | 280.49 | -27.25 | 66.00 | 0.4840 | -1168.9 | 999999 | |
| 3.39 | -21.00 | 1.91 | -21.00 | 15.67 | 280.49 | -27.25 | 66.53 | 0.4826 | -1285.6 | 999999 | |
| 1.83 | 2.52 | 1.04 | 1.44 | 16.56 | 279.94 | -27.80 | 65.16 | 0.4947 | -750.3 | -671.1 | |
| 13.39 | -21.00 | 7.60 | -21.00 | 15.80 | 279.98 | -27.76 | 66.59 | 0.4903 | -968.8 | 999999 | |
| 3.48 | -21.00 | 1.98 | -21.00 | 16.13 | 279.79 | -27.95 | 66.08 | 0.4946 | -775.7 | 999999 | |
| 0.00 | 1.04 | 0.00 | 0.59 | 13.38 | 280.14 | -27.60 | 71.32 | 0.4778 | -918.0 | -771.3 | |
| 11.91 | -21.00 | 6.78 | -21.00 | 15.33 | 279.56 | -28.18 | 67.76 | 0.4940 | -1059.9 | 999999 | |
| 0.00 | 0.96 | 0.00 | 0.54 | 13.46 | 279.78 | -27.96 | 71.35 | 0.4832 | -873.0 | -639.6 | |
| 2.00 | 7.48 | 1.13 | 4.24 | 13.96 | 279.65 | -28.09 | 70.40 | 0.4871 | -1080.7 | -709.1 | |
| 5.56 | -21.00 | 3.17 | -21.00 | 15.02 | 279.43 | -28.31 | 68.44 | 0.4945 | -1032.6 | 999999 | |
| 3.74 | -21.00 | 2.13 | -21.00 | 14.77 | 279.36 | -28.38 | 68.96 | 0.4945 | -835.5 | 999999 | |
| 0.00 | 0.87 | 0.00 | 0.50 | 16.19 | 279.08 | -28.66 | 66.40 | 0.5048 | -463.0 | -270.2 | |
| 0.00 | 1.91 | 0.00 | 1.11 | 17.02 | 277.94 | -29.80 | 65.52 | 0.5243 | -679.0 | -490.8 | |
| 0.00 | 0.70 | 0.00 | 0.40 | 13.25 | 277.74 | -30.00 | 72.67 | 0.5119 | -482.0 | -300.4 | |
| 0.00 | 1.22 | 0.00 | 0.71 | 16.49 | 276.84 | -30.90 | 67.09 | 0.5367 | 797.0 | 640.8 | |
| 0.00 | 1.91 | 0.00 | 1.12 | 15.94 | 276.90 | -30.84 | 68.05 | 0.5336 | 897.0 | 786.9 | |
| 0.00 | 2.43 | 0.00 | 1.43 | 16.15 | 276.83 | -30.92 | 67.70 | 0.5355 | 733.0 | 761.6 | |
| 0.00 | 3.56 | 0.00 | 2.11 | 17.63 | 276.41 | -31.33 | 65.31 | 0.5476 | 854.0 | 653.5 | |
| 0.00 | 0.61 | 0.00 | 0.35 | 11.33 | 277.38 | -30.36 | 76.49 | 0.5117 | 836.0 | 687.0 | |
| 0.00 | 0.96 | 0.00 | 0.56 | 16.08 | 276.62 | -31.12 | 67.93 | 0.5380 | 645.0 | 567.2 | |
| 0.00 | 2.52 | 0.00 | 1.49 | 16.96 | 276.43 | -31.32 | 66.48 | 0.5443 | 832.0 | 638.8 | |
| 0.00 | 2.35 | 0.00 | 1.39 | 17.38 | 276.31 | -31.43 | 65.80 | 0.5478 | 880.0 | 674.8 | |
| 0.00 | 0.96 | 0.00 | 0.57 | 17.16 | 276.24 | -31.50 | 66.21 | 0.5477 | 771.0 | 602.5 | |
| 1.74 | 5.30 | 1.03 | 3.12 | 16.61 | 276.31 | -31.43 | 67.14 | 0.5445 | 837.6 | 789.3 | |
| 0.00 | 1.39 | 0.00 | 0.81 | 13.80 | 276.66 | -31.08 | 72.06 | 0.5290 | 703.0 | 619.9 | |
| 0.00 | 1.56 | 0.00 | 0.95 | 21.34 | 275.10 | -32.64 | 59.89 | 0.5830 | 657.0 | 537.6 | |
| 0.00 | 4.35 | 0.00 | 2.57 | 16.97 | 275.99 | -31.76 | 66.69 | 0.5503 | 871.0 | 760.9 | |
| 0.00 | 0.87 | 0.00 | 0.53 | 21.11 | 274.89 | -32.85 | 60.38 | 0.5844 | 856.0 | 729.9 | |
| 0.00 | 2.35 | 0.00 | 1.39 | 16.77 | 275.80 | -31.94 | 67.12 | 0.5520 | 815.0 | 629.3 | |
| 0.00 | 1.22 | 0.00 | 0.72 | 16.50 | 275.74 | -32.00 | 67.63 | 0.5516 | 695.0 | 583.4 | |
| 0.00 | 3.74 | 0.00 | 2.22 | 16.67 | 275.56 | -32.18 | 67.41 | 0.5547 | 629.0 | 759.4 | |
| 0.00 | 1.65 | 0.00 | 0.99 | 17.21 | 275.31 | -32.43 | 66.61 | 0.5603 | 656.0 | 504.4 | |
| 0.00 | 1.30 | 0.00 | 0.78 | 18.55 | 275.00 | -32.75 | 64.51 | 0.5703 | 685.0 | 602.7 | |
| 0.00 | 1.48 | 0.00 | 0.88 | 16.39 | 275.40 | -32.35 | 67.98 | 0.5558 | 838.0 | 753.6 | |
| 0.00 | 2.00 | 0.00 | 1.20 | 18.30 | 274.90 | -32.84 | 64.97 | 0.5704 | 716.0 | 568.9 | |
| 0.00 | 1.04 | 0.00 | 0.62 | 16.62 | 275.17 | -32.58 | 67.69 | 0.5598 | 764.0 | 627.2 | |
| 0.00 | 0.87 | 0.00 | 0.51 | 12.22 | 275.81 | -31.93 | 75.29 | 0.5366 | 515.0 | 486.3 | |
| 0.00 | 1.83 | 0.00 | 1.09 | 16.43 | 275.05 | -32.69 | 68.06 | 0.5606 | 871.0 | 767.0 | |
| 0.00 | 0.96 | 0.00 | 0.57 | 15.98 | 275.07 | -32.68 | 68.85 | 0.5587 | 739.0 | 616.3 | |
| 0.00 | 1.56 | 0.00 | 0.94 | 17.49 | 274.70 | -33.05 | 66.44 | 0.5696 | 655.0 | 488.0 | |
| 3.56 | 5.74 | 2.14 | 3.44 | 16.85 | 274.79 | -32.95 | 67.48 | 0.5658 | 777.8 | 675.1 | |
| 0.00 | 1.30 | 0.00 | 0.78 | 14.94 | 275.07 | -32.68 | 70.66 | 0.5550 | 592.0 | 563.6 | |
| 0.00 | 1.74 | 0.00 | 1.04 | 16.99 | 274.61 | -33.13 | 67.31 | 0.5687 | 383.0 | 357.2 | |
| 0.00 | 1.65 | 0.00 | 0.98 | 14.81 | 274.94 | -32.80 | 70.93 | 0.5563 | 647.0 | 564.5 | |
| 0.00 | 0.96 | 0.00 | 0.57 | 16.59 | 274.50 | -33.24 | 68.05 | 0.5686 | 731.0 | 607.4 | |
| 0.00 | 0.96 | 0.00 | 0.57 | 15.47 | 274.57 | -33.17 | 69.95 | 0.5636 | 578.0 | 492.4 | |
| 0.00 | 1.04 | 0.00 | 0.63 | 15.97 | 274.22 | -33.53 | 69.24 | 0.5701 | 429.0 | 384.7 | |
| 0.00 | 2.35 | 0.00 | 1.41 | 15.75 | 274.18 | -33.56 | 69.62 | 0.5698 | 652.0 | 535.4 | |
| 0.00 | 1.56 | 0.00 | 0.95 | 16.23 | 273.94 | -33.80 | 68.91 | 0.5747 | 595.0 | 542.3 | |
| 0.00 | 1.74 | 0.00 | 1.05 | 16.10 | 273.78 | -33.96 | 69.20 | 0.5764 | 541.0 | 444.5 | |
| 0.00 | 0.78 | 0.00 | 0.46 | 11.32 | 274.48 | -33.26 | 77.30 | 0.5534 | 500.0 | 438.1 | |
| 0.00 | 1.13 | 0.00 | 0.67 | 12.57 | 274.27 | -33.47 | 75.12 | 0.5591 | 700.0 | 502.5 | |
| 0.00 | 2.87 | 0.00 | 1.72 | 12.09 | 273.61 | -34.14 | 76.16 | 0.5673 | 755.0 | 590.8 | |
| 0.00 | 0.61 | 0.00 | 0.37 | 12.29 | 273.54 | -34.20 | 75.81 | 0.5687 | 709.0 | 634.0 | |
| 9.21 | 10.52 | 5.60 | 6.39 | 14.75 | 273.06 | -34.69 | 71.74 | 0.5817 | 818.5 | 636.2 | |
| 0.00 | 1.39 | 0.00 | 0.85 | 15.38 | 272.86 | -34.88 | 70.76 | 0.5862 | 639.0 | 552.6 | |
| 0.00 | 1.48 | 0.00 | 0.89 | 12.52 | 273.25 | -34.50 | 75.50 | 0.5733 | 687.0 | 560.6 | |
| 0.00 | 1.04 | 0.00 | 0.63 | 12.35 | 272.90 | -34.84 | 75.88 | 0.5777 | 555.0 | 469.1 | |
| 0.00 | 1.22 | 0.00 | 0.76 | 18.05 | 271.13 | -36.61 | 67.11 | 0.6178 | 671.0 | 529.7 | |
| 0.00 | 1.22 | 0.00 | 0.76 | 13.90 | 270.63 | -37.12 | 73.90 | 0.6120 | 573.0 | 452.1 | |
| 0.00 | 2.43 | 0.00 | 1.56 | 13.94 | 268.62 | -39.12 | 74.34 | 0.6383 | 626.0 | 481.2 | |
| 0.00 | 1.04 | 0.00 | 0.68 | 15.26 | 267.77 | -39.97 | 72.52 | 0.6520 | 726.0 | 528.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
