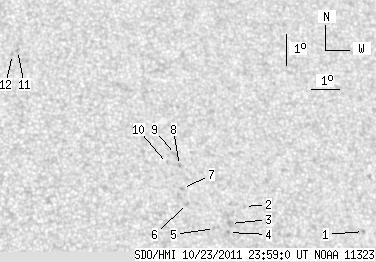

SDO HMI 2011-10-23 23:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 16.78 | 0.00 | 9.56 | 24.27 | 330.22 | 23.03 | 313.20 | 0.4928 | -499.1 | -457.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-23 23:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.48 | 0.00 | 0.87 | 22.35 | 336.07 | 28.88 | 304.37 | 0.5432 | -789.0 | -655.4 | |
| 0.00 | 0.70 | 0.00 | 0.40 | 23.30 | 331.95 | 24.76 | 309.62 | 0.5014 | -586.0 | -481.5 | |
| 0.00 | 3.04 | 0.00 | 1.73 | 22.79 | 331.35 | 24.16 | 309.37 | 0.4901 | -765.0 | -612.7 | |
| 0.00 | 1.22 | 0.00 | 0.69 | 22.51 | 331.23 | 24.04 | 309.02 | 0.4863 | -944.0 | -806.7 | |
| 0.00 | 0.35 | 0.00 | 0.20 | 22.65 | 330.76 | 23.57 | 309.76 | 0.4820 | -705.0 | -533.2 | |
| 0.00 | 1.56 | 0.00 | 0.88 | 23.47 | 329.95 | 22.76 | 312.04 | 0.4798 | -854.0 | -747.3 | |
| 0.00 | 1.30 | 0.00 | 0.74 | 23.94 | 329.87 | 22.67 | 312.93 | 0.4832 | -833.0 | -651.5 | |
| 0.00 | 1.48 | 0.00 | 0.84 | 24.67 | 329.90 | 22.71 | 314.09 | 0.4904 | -862.0 | -668.4 | |
| 0.00 | 3.13 | 0.00 | 1.78 | 25.02 | 329.82 | 22.63 | 314.74 | 0.4929 | -574.0 | -516.1 | |
| 0.00 | 0.26 | 0.00 | 0.15 | 24.75 | 329.49 | 22.29 | 314.69 | 0.4866 | -629.0 | -493.0 | |
| 0.00 | 1.39 | 0.00 | 0.79 | 28.51 | 324.84 | 17.65 | 326.31 | 0.4823 | 811.0 | 603.1 | |
| 0.00 | 0.87 | 0.00 | 0.49 | 28.39 | 324.64 | 17.45 | 326.43 | 0.4791 | 741.0 | 681.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
