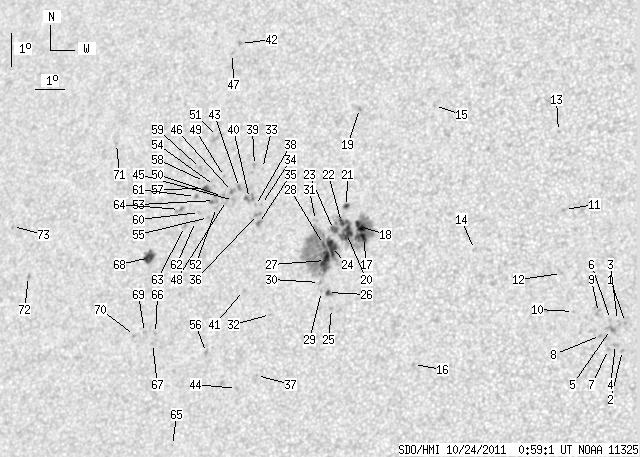

SDO HMI 2011-10-24 00:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 65.83 | 324.37 | 37.45 | 184.47 | 15.48 | 278.85 | -27.79 | 67.03 | 0.4890 | -134.5 | -108.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-24 00:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.87 | 0.00 | 0.45 | 13.36 | 289.53 | -17.11 | 62.96 | 0.3228 | -897.0 | -759.0 | |
| 0.00 | 1.57 | 0.00 | 0.82 | 12.52 | 289.49 | -17.15 | 65.44 | 0.3178 | -862.0 | -726.4 | |
| 0.00 | 0.43 | 0.00 | 0.23 | 13.42 | 289.27 | -17.37 | 63.13 | 0.3270 | -791.0 | -658.6 | |
| 0.00 | 2.52 | 0.00 | 1.32 | 12.69 | 289.26 | -17.38 | 65.20 | 0.3225 | -825.0 | -753.6 | |
| 0.00 | 4.78 | 0.00 | 2.51 | 13.14 | 289.07 | -17.58 | 64.15 | 0.3282 | -1007.0 | -849.2 | |
| 0.00 | 1.22 | 0.00 | 0.64 | 13.44 | 289.04 | -17.60 | 63.34 | 0.3305 | -859.0 | -691.2 | |
| 0.00 | 1.30 | 0.00 | 0.68 | 12.54 | 289.04 | -17.60 | 65.89 | 0.3247 | -783.0 | -645.2 | |
| 0.00 | 1.48 | 0.00 | 0.78 | 12.95 | 288.76 | -17.88 | 65.03 | 0.3316 | -927.0 | -797.9 | |
| 0.00 | 2.52 | 0.00 | 1.33 | 13.64 | 288.64 | -18.00 | 63.26 | 0.3378 | -411.0 | -611.9 | |
| 0.00 | 0.96 | 0.00 | 0.51 | 13.65 | 287.83 | -18.81 | 64.15 | 0.3497 | -746.0 | -596.8 | |
| 0.00 | 1.13 | 0.00 | 0.60 | 16.73 | 287.25 | -19.39 | 57.21 | 0.3800 | -715.0 | -586.1 | |
| 0.00 | 0.87 | 0.00 | 0.46 | 14.78 | 287.34 | -19.30 | 61.77 | 0.3643 | -859.0 | -694.1 | |
| 0.00 | 0.96 | 0.00 | 0.52 | 19.10 | 286.77 | -19.87 | 52.60 | 0.4060 | -844.0 | -653.4 | |
| 0.00 | 1.57 | 0.00 | 0.85 | 15.42 | 284.40 | -22.24 | 63.23 | 0.4105 | -681.0 | -522.8 | |
| 0.00 | 1.04 | 0.00 | 0.58 | 19.76 | 282.44 | -24.20 | 56.11 | 0.4666 | -865.0 | -584.2 | |
| 0.00 | 1.57 | 0.00 | 0.85 | 11.89 | 282.73 | -23.91 | 72.61 | 0.4174 | -795.0 | -505.3 | |
| 2.87 | 84.87 | 1.60 | 47.61 | 15.65 | 280.60 | -26.04 | 65.75 | 0.4655 | -1294.3 | -654.0 | |
| 5.74 | -17.00 | 3.22 | -17.00 | 15.98 | 280.42 | -26.22 | 65.22 | 0.4698 | -1131.0 | 999999 | |
| 0.00 | 1.57 | 0.00 | 0.89 | 19.57 | 279.84 | -26.80 | 58.77 | 0.4988 | -730.0 | -574.2 | |
| 10.70 | -17.00 | 6.01 | -17.00 | 15.75 | 280.00 | -26.64 | 65.96 | 0.4745 | -1015.0 | 999999 | |
| 2.35 | 3.04 | 1.32 | 1.72 | 16.56 | 279.88 | -26.76 | 64.43 | 0.4804 | -790.9 | -680.1 | |
| 2.61 | -17.00 | 1.47 | -17.00 | 16.07 | 279.78 | -26.86 | 65.46 | 0.4792 | -856.6 | 999999 | |
| 3.83 | -17.00 | 2.16 | -17.00 | 15.85 | 279.53 | -27.11 | 66.07 | 0.4815 | -742.3 | 999999 | |
| 10.52 | 110.78 | 5.93 | 62.61 | 15.33 | 279.54 | -27.10 | 67.09 | 0.4790 | -1101.9 | -231.5 | |
| 0.00 | 1.30 | 0.00 | 0.73 | 13.46 | 279.78 | -26.86 | 70.75 | 0.4673 | -867.0 | -684.5 | |
| 1.83 | 3.39 | 1.02 | 1.90 | 13.94 | 279.59 | -27.06 | 69.88 | 0.4721 | -1041.0 | -915.7 | |
| 12.17 | -24.00 | 6.86 | -24.00 | 14.90 | 279.39 | -27.25 | 68.04 | 0.4791 | -965.9 | 999999 | |
| 1.48 | -24.00 | 0.84 | -24.00 | 15.38 | 279.25 | -27.39 | 67.17 | 0.4832 | -698.5 | 999999 | |
| 0.00 | 0.61 | 0.00 | 0.34 | 13.96 | 279.38 | -27.27 | 69.95 | 0.4752 | -618.0 | -599.0 | |
| 0.00 | 1.57 | 0.00 | 0.88 | 14.23 | 279.27 | -27.37 | 69.46 | 0.4778 | -628.0 | -533.7 | |
| 0.00 | 1.57 | 0.00 | 0.89 | 16.10 | 278.87 | -27.77 | 66.01 | 0.4921 | -541.0 | -417.7 | |
| 0.00 | 0.96 | 0.00 | 0.55 | 13.20 | 277.70 | -28.94 | 72.31 | 0.4966 | -562.0 | -392.6 | |
| 0.00 | 0.70 | 0.00 | 0.41 | 17.59 | 276.73 | -29.91 | 64.54 | 0.5286 | 633.0 | 509.4 | |
| 0.00 | 0.96 | 0.00 | 0.55 | 16.50 | 276.89 | -29.76 | 66.43 | 0.5213 | 789.0 | 640.3 | |
| 0.00 | 2.78 | 0.00 | 1.61 | 15.92 | 276.87 | -29.77 | 67.51 | 0.5188 | 876.0 | 785.2 | |
| 0.00 | 3.04 | 0.00 | 1.76 | 16.19 | 276.79 | -29.85 | 67.05 | 0.5211 | 911.0 | 781.3 | |
| 0.00 | 0.87 | 0.00 | 0.50 | 11.35 | 277.43 | -29.21 | 76.08 | 0.4949 | 825.0 | 664.4 | |
| 0.00 | 0.87 | 0.00 | 0.50 | 16.46 | 276.68 | -29.96 | 66.62 | 0.5239 | 887.0 | 720.2 | |
| 0.00 | 1.91 | 0.00 | 1.12 | 17.67 | 276.42 | -30.22 | 64.58 | 0.5330 | 894.0 | 757.9 | |
| 0.00 | 6.17 | 0.00 | 3.60 | 16.66 | 276.43 | -30.22 | 66.39 | 0.5283 | 746.0 | 791.2 | |
| 0.00 | 1.22 | 0.00 | 0.70 | 13.88 | 276.65 | -29.99 | 71.45 | 0.5139 | 750.0 | 654.2 | |
| 0.00 | 1.91 | 0.00 | 1.15 | 21.39 | 275.11 | -31.53 | 59.10 | 0.5696 | 775.0 | 582.0 | |
| 0.00 | 2.43 | 0.00 | 1.43 | 16.98 | 276.01 | -30.63 | 66.05 | 0.5354 | 957.0 | 850.4 | |
| 0.00 | 1.13 | 0.00 | 0.65 | 10.93 | 276.78 | -29.86 | 77.12 | 0.5035 | 703.0 | 582.5 | |
| 0.00 | 3.39 | 0.00 | 1.99 | 16.58 | 275.86 | -30.78 | 66.85 | 0.5355 | 715.0 | 591.7 | |
| 0.00 | 3.04 | 0.00 | 1.79 | 16.85 | 275.78 | -30.86 | 66.41 | 0.5379 | 881.0 | 814.8 | |
| 0.00 | 0.70 | 0.00 | 0.42 | 21.07 | 274.89 | -31.75 | 59.76 | 0.5706 | 885.0 | 736.5 | |
| 0.00 | 2.96 | 0.00 | 1.74 | 16.57 | 275.61 | -31.03 | 67.01 | 0.5389 | 728.0 | 623.6 | |
| 0.00 | 0.87 | 0.00 | 0.51 | 17.29 | 275.40 | -31.24 | 65.83 | 0.5449 | 716.0 | 657.8 | |
| 0.00 | 2.52 | 0.00 | 1.48 | 16.68 | 275.44 | -31.20 | 66.89 | 0.5416 | 781.0 | 704.9 | |
| 0.00 | 5.48 | 0.00 | 3.26 | 18.50 | 274.91 | -31.74 | 64.03 | 0.5570 | 622.0 | 500.8 | |
| 0.00 | 1.74 | 0.00 | 1.02 | 16.34 | 275.29 | -31.35 | 67.58 | 0.5423 | 678.0 | 557.8 | |
| 0.00 | 5.39 | 0.00 | 3.18 | 16.55 | 275.18 | -31.47 | 67.26 | 0.5447 | 690.0 | 720.6 | |
| 0.00 | 1.13 | 0.00 | 0.67 | 17.00 | 275.09 | -31.55 | 66.51 | 0.5477 | 651.0 | 514.0 | |
| 0.00 | 1.04 | 0.00 | 0.62 | 16.02 | 275.05 | -31.59 | 68.25 | 0.5442 | 766.0 | 590.0 | |
| 0.00 | 1.91 | 0.00 | 1.11 | 11.96 | 275.60 | -31.04 | 75.49 | 0.5232 | 727.0 | 591.9 | |
| 3.30 | 4.09 | 1.96 | 2.42 | 16.89 | 274.78 | -31.86 | 66.85 | 0.5514 | 802.3 | 735.0 | |
| 0.00 | 0.61 | 0.00 | 0.36 | 17.11 | 274.70 | -31.94 | 66.52 | 0.5534 | 381.0 | 341.9 | |
| 0.00 | 1.74 | 0.00 | 1.04 | 17.49 | 274.48 | -32.16 | 65.97 | 0.5580 | 568.0 | 505.5 | |
| 0.00 | 1.30 | 0.00 | 0.77 | 16.16 | 274.70 | -31.94 | 68.18 | 0.5495 | 849.0 | 647.9 | |
| 0.00 | 1.83 | 0.00 | 1.08 | 16.64 | 274.46 | -32.18 | 67.46 | 0.5546 | 669.0 | 548.6 | |
| 0.00 | 1.04 | 0.00 | 0.62 | 15.88 | 274.60 | -32.04 | 68.72 | 0.5498 | 716.0 | 599.4 | |
| 0.00 | 1.65 | 0.00 | 0.98 | 15.71 | 274.23 | -32.41 | 69.19 | 0.5542 | 799.0 | 585.9 | |
| 0.00 | 2.96 | 0.00 | 1.76 | 16.21 | 273.95 | -32.69 | 68.43 | 0.5598 | 496.0 | 497.7 | |
| 0.00 | 0.96 | 0.00 | 0.56 | 9.12 | 274.71 | -31.93 | 81.06 | 0.5307 | 502.0 | 423.2 | |
| 0.00 | 0.96 | 0.00 | 0.57 | 12.44 | 273.69 | -32.95 | 75.19 | 0.5515 | 775.0 | 625.0 | |
| 0.00 | 0.87 | 0.00 | 0.52 | 12.14 | 273.63 | -33.01 | 75.75 | 0.5517 | 793.0 | 681.3 | |
| 8.43 | 10.52 | 5.06 | 6.31 | 14.71 | 273.11 | -33.53 | 71.38 | 0.5659 | 840.1 | 579.6 | |
| 0.00 | 1.57 | 0.00 | 0.93 | 12.45 | 273.29 | -33.35 | 75.29 | 0.5572 | 619.0 | 591.6 | |
| 0.00 | 1.39 | 0.00 | 0.83 | 12.34 | 272.94 | -33.70 | 75.58 | 0.5619 | 567.0 | 488.0 | |
| 0.00 | 0.70 | 0.00 | 0.43 | 18.10 | 271.18 | -35.47 | 66.53 | 0.6035 | 679.0 | 523.8 | |
| 0.00 | 2.00 | 0.00 | 1.26 | 13.91 | 268.66 | -37.98 | 74.10 | 0.6234 | 727.0 | 601.8 | |
| 0.00 | 1.57 | 0.00 | 1.01 | 15.38 | 267.72 | -38.92 | 72.05 | 0.6390 | 552.0 | 452.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
