SDO HMI 2011-10-24 01:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 54.87 | 320.12 | 31.13 | 181.21 | 15.62 | 278.88 | -27.21 | 66.40 | 0.4815 | -111.6 | -143.7 | |
|
previous
or next observation for the same group /

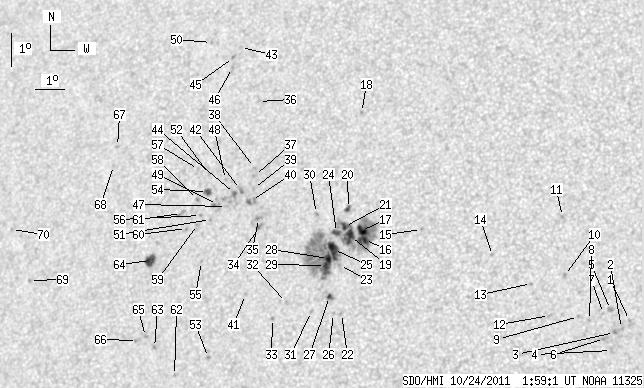

back to the solar disc SDO HMI 2011-10-24 01:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.30 | 0.00 | 0.68 | 13.53 | 289.54 | -16.55 | 61.75 | 0.3157 | -881.0 | -685.5 | |
| 0.00 | 0.61 | 0.00 | 0.32 | 13.28 | 289.31 | -16.79 | 62.78 | 0.3175 | -1013.0 | -846.3 | |
| 0.00 | 1.57 | 0.00 | 0.82 | 13.15 | 289.09 | -17.00 | 63.41 | 0.3198 | -1078.0 | -922.7 | |
| 0.00 | 2.61 | 0.00 | 1.36 | 12.61 | 289.03 | -17.06 | 65.06 | 0.3171 | -577.0 | -544.4 | |
| 0.00 | 2.87 | 0.00 | 1.50 | 13.84 | 288.91 | -17.18 | 61.69 | 0.3272 | -920.0 | -741.3 | |
| 0.00 | 2.78 | 0.00 | 1.46 | 12.97 | 288.78 | -17.31 | 64.32 | 0.3231 | -961.0 | -758.7 | |
| 0.00 | 1.13 | 0.00 | 0.59 | 13.72 | 288.70 | -17.40 | 62.31 | 0.3295 | -847.0 | -601.2 | |
| 0.00 | 0.96 | 0.00 | 0.50 | 13.49 | 288.26 | -17.83 | 63.45 | 0.3343 | -833.0 | -698.2 | |
| 0.00 | 1.30 | 0.00 | 0.69 | 13.60 | 287.90 | -18.19 | 63.57 | 0.3404 | -866.0 | -625.5 | |
| 0.00 | 1.48 | 0.00 | 0.78 | 14.83 | 287.34 | -18.75 | 61.01 | 0.3568 | -825.0 | -686.4 | |
| 0.00 | 1.48 | 0.00 | 0.79 | 16.61 | 287.10 | -18.99 | 56.95 | 0.3736 | -730.0 | -558.5 | |
| 0.00 | 1.39 | 0.00 | 0.74 | 13.61 | 286.96 | -19.13 | 64.58 | 0.3542 | -734.0 | -508.6 | |
| 0.00 | 1.30 | 0.00 | 0.70 | 14.56 | 286.29 | -19.80 | 62.87 | 0.3701 | -760.0 | -551.1 | |
| 0.00 | 1.13 | 0.00 | 0.61 | 15.36 | 284.92 | -21.17 | 62.33 | 0.3949 | -371.0 | -457.4 | |
| 0.00 | 1.13 | 0.00 | 0.62 | 16.07 | 282.46 | -23.63 | 63.01 | 0.4341 | -801.0 | -626.5 | |
| 2.61 | 91.74 | 1.45 | 51.23 | 15.70 | 280.56 | -25.53 | 65.29 | 0.4587 | -1336.6 | -633.2 | |
| 5.57 | -16.00 | 3.10 | -16.00 | 15.97 | 280.42 | -25.67 | 64.84 | 0.4621 | -1171.3 | 999999 | |
| 0.00 | 0.96 | 0.00 | 0.54 | 19.56 | 279.86 | -26.23 | 58.32 | 0.4915 | -790.0 | -662.9 | |
| 8.17 | -16.00 | 4.57 | -16.00 | 15.77 | 280.07 | -26.02 | 65.49 | 0.4660 | -1077.7 | 999999 | |
| 2.09 | 3.04 | 1.17 | 1.71 | 16.61 | 279.88 | -26.21 | 63.93 | 0.4732 | -754.0 | -671.1 | |
| 2.87 | -16.00 | 1.61 | -16.00 | 16.06 | 279.82 | -26.27 | 65.07 | 0.4710 | -845.2 | 999999 | |
| 0.00 | 1.30 | 0.00 | 0.72 | 13.44 | 280.06 | -26.03 | 70.35 | 0.4552 | -733.0 | -605.1 | |
| 0.00 | 1.48 | 0.00 | 0.83 | 14.88 | 279.81 | -26.28 | 67.48 | 0.4652 | -309.0 | -281.9 | |
| 3.74 | -16.00 | 2.10 | -16.00 | 15.87 | 279.57 | -26.52 | 65.62 | 0.4735 | -747.4 | 999999 | |
| 10.96 | 102.01 | 6.15 | 57.40 | 15.35 | 279.54 | -26.55 | 66.69 | 0.4713 | -1078.5 | -276.5 | |
| 0.00 | 1.22 | 0.00 | 0.68 | 13.42 | 279.78 | -26.31 | 70.52 | 0.4591 | -770.0 | -578.1 | |
| 1.74 | 3.13 | 0.97 | 1.75 | 13.93 | 279.59 | -26.50 | 69.57 | 0.4641 | -1055.1 | -879.8 | |
| 3.30 | -25.00 | 1.85 | -25.00 | 15.07 | 279.40 | -26.69 | 67.34 | 0.4719 | -1025.5 | 999999 | |
| 1.13 | -25.00 | 0.63 | -25.00 | 14.86 | 279.33 | -26.76 | 67.82 | 0.4720 | -1010.8 | 999999 | |
| 0.00 | 1.39 | 0.00 | 0.79 | 16.42 | 278.79 | -27.30 | 65.07 | 0.4871 | -677.0 | -457.5 | |
| 0.00 | 1.65 | 0.00 | 0.93 | 13.45 | 279.03 | -27.07 | 70.87 | 0.4703 | -670.0 | -501.2 | |
| 0.00 | 1.65 | 0.00 | 0.93 | 13.69 | 278.13 | -27.96 | 70.85 | 0.4842 | -584.0 | -334.1 | |
| 0.00 | 1.30 | 0.00 | 0.74 | 13.19 | 277.71 | -28.38 | 72.06 | 0.4885 | -620.0 | -462.5 | |
| 0.00 | 3.39 | 0.00 | 1.95 | 15.94 | 276.85 | -29.24 | 67.16 | 0.5116 | 974.0 | 779.2 | |
| 0.00 | 2.61 | 0.00 | 1.50 | 16.18 | 276.78 | -29.31 | 66.76 | 0.5138 | 847.0 | 765.0 | |
| 0.00 | 1.39 | 0.00 | 0.82 | 19.75 | 276.12 | -29.97 | 60.79 | 0.5408 | 818.0 | 682.1 | |
| 0.00 | 1.65 | 0.00 | 0.96 | 17.48 | 276.41 | -29.68 | 64.59 | 0.5249 | 713.0 | 600.1 | |
| 0.00 | 1.22 | 0.00 | 0.71 | 17.73 | 276.37 | -29.72 | 64.18 | 0.5267 | 839.0 | 750.9 | |
| 0.00 | 1.65 | 0.00 | 0.96 | 17.09 | 276.45 | -29.64 | 65.29 | 0.5225 | 769.0 | 605.0 | |
| 0.00 | 5.39 | 0.00 | 3.12 | 16.72 | 276.44 | -29.65 | 65.97 | 0.5209 | 586.0 | 794.8 | |
| 0.00 | 0.70 | 0.00 | 0.40 | 13.87 | 276.67 | -29.42 | 71.20 | 0.5058 | 622.0 | 586.6 | |
| 0.00 | 3.30 | 0.00 | 1.93 | 17.03 | 275.99 | -30.10 | 65.65 | 0.5285 | 1012.0 | 798.0 | |
| 0.00 | 1.22 | 0.00 | 0.73 | 21.38 | 275.09 | -31.00 | 58.75 | 0.5632 | 834.0 | 576.6 | |
| 0.43 | 11.13 | 0.25 | 6.50 | 16.90 | 275.79 | -30.30 | 66.00 | 0.5305 | 969.8 | 719.7 | |
| 0.00 | 1.83 | 0.00 | 1.09 | 21.06 | 274.90 | -31.19 | 59.40 | 0.5636 | 722.0 | 737.5 | |
| 0.00 | 1.57 | 0.00 | 0.94 | 20.75 | 274.94 | -31.15 | 59.89 | 0.5614 | 707.0 | 534.2 | |
| 0.00 | 1.48 | 0.00 | 0.86 | 16.50 | 275.58 | -30.51 | 66.85 | 0.5316 | 739.0 | 617.8 | |
| 0.00 | 0.96 | 0.00 | 0.56 | 17.31 | 275.39 | -30.70 | 65.49 | 0.5378 | 795.0 | 660.1 | |
| 0.00 | 6.87 | 0.00 | 4.03 | 16.54 | 275.24 | -30.85 | 66.94 | 0.5363 | 712.0 | 664.8 | |
| 0.00 | 1.22 | 0.00 | 0.74 | 21.49 | 273.97 | -32.12 | 59.31 | 0.5775 | 662.0 | 514.4 | |
| 0.00 | 1.13 | 0.00 | 0.66 | 16.08 | 275.07 | -31.02 | 67.87 | 0.5367 | 678.0 | 568.8 | |
| 0.00 | 1.04 | 0.00 | 0.62 | 17.44 | 274.79 | -31.31 | 65.60 | 0.5465 | 477.0 | 493.8 | |
| 0.00 | 1.48 | 0.00 | 0.85 | 11.92 | 275.62 | -30.47 | 75.37 | 0.5149 | 824.0 | 679.4 | |
| 3.65 | 4.09 | 2.15 | 2.41 | 16.92 | 274.81 | -31.28 | 66.50 | 0.5438 | 811.4 | 742.0 | |
| 0.00 | 0.61 | 0.00 | 0.36 | 14.79 | 274.96 | -31.13 | 70.24 | 0.5332 | 791.0 | 634.1 | |
| 0.00 | 1.13 | 0.00 | 0.67 | 16.18 | 274.69 | -31.40 | 67.87 | 0.5423 | 794.0 | 623.7 | |
| 0.00 | 0.96 | 0.00 | 0.57 | 17.57 | 274.35 | -31.74 | 65.60 | 0.5528 | 371.0 | 332.9 | |
| 0.00 | 1.04 | 0.00 | 0.62 | 16.66 | 274.49 | -31.60 | 67.12 | 0.5470 | 755.0 | 619.4 | |
| 0.00 | 1.57 | 0.00 | 0.92 | 15.90 | 274.63 | -31.46 | 68.39 | 0.5420 | 693.0 | 577.6 | |
| 0.00 | 0.78 | 0.00 | 0.46 | 15.77 | 274.25 | -31.84 | 68.82 | 0.5466 | 776.0 | 641.6 | |
| 0.00 | 3.83 | 0.00 | 2.27 | 16.21 | 273.99 | -32.10 | 68.16 | 0.5519 | 556.0 | 475.5 | |
| 0.00 | 0.96 | 0.00 | 0.56 | 11.33 | 274.48 | -31.61 | 76.84 | 0.5299 | 639.0 | 546.8 | |
| 0.00 | 1.04 | 0.00 | 0.61 | 12.13 | 273.66 | -32.43 | 75.58 | 0.5435 | 829.0 | 720.1 | |
| 8.61 | 9.48 | 5.13 | 5.65 | 14.74 | 273.11 | -32.98 | 71.12 | 0.5586 | 846.7 | 583.6 | |
| 0.00 | 1.74 | 0.00 | 1.03 | 12.45 | 273.29 | -32.81 | 75.13 | 0.5495 | 738.0 | 643.0 | |
| 0.00 | 2.61 | 0.00 | 1.55 | 12.31 | 273.01 | -33.08 | 75.45 | 0.5531 | 574.0 | 511.9 | |
| 0.00 | 1.48 | 0.00 | 0.91 | 18.13 | 271.19 | -34.90 | 66.23 | 0.5964 | 782.0 | 564.7 | |
| 0.00 | 1.13 | 0.00 | 0.69 | 17.54 | 271.17 | -34.92 | 67.19 | 0.5943 | 549.0 | 395.6 | |
| 0.00 | 1.57 | 0.00 | 0.98 | 13.91 | 268.69 | -37.40 | 73.94 | 0.6158 | 801.0 | 647.2 | |
| 0.00 | 0.96 | 0.00 | 0.61 | 15.40 | 267.68 | -38.41 | 71.86 | 0.6326 | 621.0 | 521.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
