Sunspot Group 11324

group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP

11324	120.67	524.58	60.47	263.02	12.46	303.15	-2.39	297.37	0.1554	12.0	137.2

previous or next observation for the same group / back to the solar disc

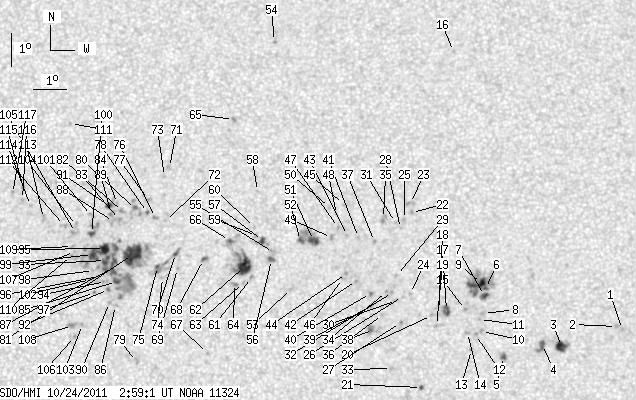

SDO HMI 2011-10-24 02:59:01 UT
No observation available

See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP

1	0.00	1.22	0.00	0.61	10.42	314.89	9.34	300.09	0.1854	-857.0	-674.3
2	0.00	1.48	0.00	0.74	10.51	314.70	9.16	301.00	0.1835	-1003.0	-770.4
3	8.18	11.22	4.10	5.62	9.93	313.00	7.46	303.19	0.1536	-1058.0	-704.1
4	4.44	6.61	2.22	3.31	10.00	312.43	6.88	305.66	0.1460	-1013.0	-891.4
5	2.09	3.48	1.04	1.74	9.65	311.23	5.69	308.75	0.1259	-1052.4	-861.6
6	1.74	44.18	0.87	22.12	11.69	310.72	5.18	322.18	0.1448	-934.6	-627.2
7	3.39	5.04	1.70	2.52	11.48	310.69	5.14	321.43	0.1416	-1023.4	-766.2
8	0.00	1.83	0.00	0.91	10.94	310.65	5.10	319.10	0.1340	-796.0	-611.7
9	3.83	-6.00	1.92	-6.00	11.84	310.60	5.06	323.46	0.1456	-1218.4	999999
10	0.00	1.57	0.00	0.78	10.40	310.58	5.03	316.67	0.1264	-1060.0	-835.6
11	0.00	1.04	0.00	0.52	10.76	310.52	4.98	318.89	0.1303	-915.0	-687.1
12	0.00	1.65	0.00	0.82	10.32	310.39	4.85	317.23	0.1231	-999.0	-856.5
13	0.00	1.13	0.00	0.56	9.87	310.26	4.72	315.35	0.1160	-1048.0	-866.6
14	0.00	2.26	0.00	1.13	10.38	310.15	4.61	319.02	0.1211	-960.0	-727.1
15	0.00	1.04	0.00	0.52	11.07	310.10	4.56	322.85	0.1297	-1112.0	-933.6
16	0.00	1.13	0.00	0.58	18.88	309.89	4.35	343.17	0.2489	-728.0	-563.3
17	2.96	5.91	1.48	2.95	11.04	309.52	3.98	326.38	0.1236	-1212.9	-990.0
18	0.00	1.13	0.00	0.56	10.92	309.28	3.73	327.49	0.1195	-903.0	-754.5
19	0.00	1.91	0.00	0.95	10.59	309.21	3.67	326.38	0.1141	-843.0	-507.3
20	0.00	1.04	0.00	0.52	10.89	309.06	3.52	328.86	0.1171	-997.0	-880.3
21	1.65	2.35	0.82	1.17	8.74	308.74	3.20	318.53	0.0836	723.6	555.0
22	0.00	1.83	0.00	0.92	13.99	308.49	2.95	341.98	0.1621	-1018.0	-778.0
23	0.00	3.30	0.00	1.66	14.26	308.46	2.92	342.66	0.1664	-720.0	-737.6
24	0.00	1.13	0.00	0.56	11.56	308.43	2.89	336.07	0.1223	-911.0	-672.2
25	0.00	1.30	0.00	0.65	13.78	308.27	2.73	342.84	0.1575	-778.0	-564.4
26	0.00	0.87	0.00	0.43	11.47	308.19	2.64	337.60	0.1192	-911.0	-687.4
27	0.00	1.13	0.00	0.56	10.69	308.12	2.58	335.33	0.1063	-959.0	-770.7
28	0.00	1.04	0.00	0.52	13.51	308.15	2.60	343.07	0.1523	-675.0	-441.8
29	0.00	1.57	0.00	0.78	12.10	308.01	2.47	340.77	0.1283	-728.0	-567.4
30	0.00	1.83	0.00	0.91	11.35	308.00	2.46	338.64	0.1161	-957.0	-769.6
31	0.00	0.78	0.00	0.39	13.69	307.99	2.45	344.33	0.1546	-906.0	-663.7
32	0.00	1.30	0.00	0.65	11.59	307.88	2.34	340.31	0.1193	-905.0	-787.0
33	0.00	2.09	0.00	1.04	9.31	307.84	2.29	331.34	0.0827	-965.0	-677.5
34	0.00	1.04	0.00	0.52	11.62	307.70	2.16	341.82	0.1187	-1022.0	-842.2
35	0.00	4.26	0.00	2.14	13.82	307.63	2.08	346.77	0.1551	-934.0	-709.9
36	0.00	1.48	0.00	0.74	10.93	307.57	2.03	340.87	0.1067	-838.0	-639.2
37	0.00	1.74	0.00	0.87	13.12	307.34	1.80	347.51	0.1423	-1087.0	-783.0
38	0.00	7.39	0.00	3.68	10.48	307.30	1.76	341.97	0.0977	-898.0	-791.9
39	0.00	2.00	0.00	1.00	11.20	307.24	1.70	344.52	0.1095	-933.0	-781.1
40	0.00	1.91	0.00	0.95	11.56	307.21	1.67	345.60	0.1154	-1032.0	-891.8
41	0.00	1.48	0.00	0.74	13.24	306.86	1.31	350.97	0.1428	-918.0	-674.1
42	0.00	1.22	0.00	0.61	11.95	306.79	1.25	349.78	0.1205	-1036.0	-847.7
43	0.00	1.13	0.00	0.57	13.31	306.52	0.98	353.31	0.1431	-1003.0	-812.9
44	0.00	1.57	0.00	0.78	12.16	306.48	0.94	352.48	0.1233	-995.0	-818.0
45	0.00	0.96	0.00	0.48	14.24	306.40	0.86	354.74	0.1590	-734.0	-571.9
46	0.00	1.83	0.00	0.91	12.01	306.36	0.82	353.30	0.1204	-947.0	-670.0
47	0.00	1.65	0.00	0.83	13.55	306.24	0.70	355.32	0.1468	-925.0	-743.9
48	0.00	0.78	0.00	0.39	13.94	306.18	0.64	355.92	0.1534	-754.0	-583.1
49	0.00	1.83	0.00	0.91	13.25	306.03	0.49	356.63	0.1413	-1062.0	-818.8
50	0.00	1.13	0.00	0.57	14.15	305.97	0.43	357.35	0.1569	-838.0	-581.4
51	6.35	22.70	3.18	11.36	13.16	305.48	-0.06	0.45	0.1395	-1043.9	-479.4
52	2.26	-51.00	1.13	-51.00	13.16	305.08	-0.46	3.24	0.1397	-932.7	999999
53	0.00	2.00	0.00	1.00	11.71	304.81	-0.73	6.29	0.1151	565.0	583.3
54	0.00	1.30	0.00	0.67	19.20	304.24	-1.30	5.04	0.2444	-985.0	-814.0
55	0.00	4.00	0.00	2.00	12.79	304.25	-1.29	9.38	0.1350	880.0	695.5
56	2.52	2.87	1.26	1.43	12.58	304.19	-1.35	10.09	0.1316	1073.3	1031.8
57	2.44	6.09	1.22	3.05	13.15	303.92	-1.63	11.26	0.1422	1133.6	799.9
58	0.00	1.04	0.00	0.52	14.63	303.75	-1.79	10.43	0.1679	-796.0	-556.8
59	0.00	2.35	0.00	1.18	13.30	303.73	-1.81	12.27	0.1454	895.0	680.0
60	0.00	1.22	0.00	0.61	13.54	303.67	-1.87	12.32	0.1497	874.0	623.9
61	0.00	1.83	0.00	0.91	12.04	303.59	-1.95	15.59	0.1247	-826.0	-655.0
62	15.31	31.92	7.65	15.95	12.37	303.37	-2.17	16.45	0.1313	-1098.4	-662.6
63	0.00	1.74	0.00	0.87	11.89	303.34	-2.20	17.78	0.1234	-953.0	-685.9
64	0.00	2.52	0.00	1.26	11.86	303.07	-2.47	19.92	0.1244	-1037.0	-880.6
65	0.00	2.44	0.00	1.23	16.81	302.98	-2.56	11.95	0.2072	-937.0	-758.4
66	1.57	6.17	0.78	3.09	13.15	302.90	-2.64	17.89	0.1466	835.8	132.4
67	0.00	1.13	0.00	0.56	9.76	302.27	-3.27	35.10	0.0983	904.0	632.0
68	1.57	2.78	0.78	1.39	12.58	302.12	-3.43	24.34	0.1422	-820.7	-938.9
69	0.00	0.78	0.00	0.39	12.30	301.32	-4.22	30.04	0.1442	-740.0	-498.4
70	1.57	17.48	0.78	8.76	12.75	301.26	-4.29	28.90	0.1515	950.8	574.8
71	0.00	2.26	0.00	1.14	15.34	301.02	-4.52	23.27	0.1934	731.0	599.6
72	0.00	0.96	0.00	0.48	13.74	300.93	-4.61	27.63	0.1692	932.0	727.1
73	0.00	1.30	0.00	0.66	15.07	300.87	-4.67	24.55	0.1901	928.0	667.8
74	0.00	1.22	0.00	0.61	12.03	300.87	-4.67	33.67	0.1443	433.0	332.8
75	1.30	-70.00	0.65	-70.00	12.36	300.71	-4.83	33.29	0.1506	938.2	999999
76	0.00	2.44	0.00	1.22	13.83	300.62	-4.92	28.92	0.1731	1003.0	835.0
77	0.00	2.09	0.00	1.05	14.37	300.39	-5.15	28.50	0.1831	1006.0	791.8
78	0.00	1.39	0.00	0.70	13.98	300.37	-5.17	29.69	0.1774	950.0	838.3
79	0.00	2.52	0.00	1.26	9.50	300.12	-5.42	50.85	0.1207	780.0	750.4
80	0.00	10.61	0.00	5.34	14.07	300.00	-5.54	31.16	0.1819	970.0	767.2
81	24.79	168.20	12.44	84.46	12.71	299.94	-5.60	35.92	0.1632	1170.3	727.8
82	0.00	2.61	0.00	1.31	14.00	299.60	-5.94	33.14	0.1847	1008.0	701.2
83	0.00	1.74	0.00	0.88	13.76	299.51	-6.03	34.27	0.1821	1132.0	933.9
84	0.00	1.04	0.00	0.53	14.24	299.44	-6.10	33.11	0.1896	545.0	428.2
85	3.57	-81.00	1.79	-81.00	11.89	299.46	-6.08	41.40	0.1574	1155.3	999999
86	0.00	1.83	0.00	0.91	11.17	299.45	-6.09	44.76	0.1486	710.0	610.5
87	8.00	-81.00	4.02	-81.00	12.31	299.36	-6.18	40.12	0.1639	1230.0	999999
88	0.00	2.52	0.00	1.27	13.70	299.33	-6.21	35.27	0.1830	607.0	775.2
89	0.00	2.35	0.00	1.18	13.94	299.26	-6.28	34.79	0.1870	765.0	748.0
90	0.00	1.22	0.00	0.61	11.26	299.26	-6.28	45.18	0.1519	943.0	759.9
91	2.70	5.65	1.36	2.85	14.18	299.16	-6.38	34.46	0.1913	903.4	494.5
92	0.00	1.74	0.00	0.87	11.65	299.23	-6.32	43.56	0.1571	1076.0	899.8
93	4.78	-81.00	2.40	-81.00	12.52	299.11	-6.43	40.41	0.1694	1172.3	999999
94	0.00	2.70	0.00	1.35	11.89	299.13	-6.41	42.94	0.1612	905.0	723.5
95	6.70	-81.00	3.37	-81.00	12.88	299.07	-6.47	39.20	0.1746	1139.9	999999
96	0.00	0.96	0.00	0.48	12.04	298.91	-6.63	43.25	0.1656	750.0	591.5
97	0.00	0.96	0.00	0.48	11.56	298.80	-6.74	45.83	0.1611	826.0	698.5
98	0.00	1.13	0.00	0.57	12.22	298.75	-6.79	43.16	0.1697	620.0	526.4
99	4.52	-81.00	2.28	-81.00	12.70	298.71	-6.83	41.43	0.1763	1025.0	999999
100	2.44	9.39	1.23	4.73	13.33	298.66	-6.88	39.30	0.1850	959.1	769.8
101	0.00	3.04	0.00	1.54	13.87	298.64	-6.90	37.52	0.1923	666.0	495.2
102	0.00	2.52	0.00	1.27	11.95	298.67	-6.88	44.66	0.1674	912.0	664.2
103	0.00	1.48	0.00	0.74	10.60	298.45	-7.09	51.89	0.1549	950.0	766.6
104	0.00	2.52	0.00	1.27	13.57	298.19	-7.35	40.31	0.1932	739.0	607.0
105	0.00	2.96	0.00	1.49	13.35	298.16	-7.38	41.14	0.1908	766.0	690.5
106	0.00	1.30	0.00	0.65	10.23	298.22	-7.32	54.68	0.1545	956.0	753.3
107	0.00	1.13	0.00	0.57	12.78	298.15	-7.39	43.30	0.1838	777.0	608.4
108	0.00	4.00	0.00	2.01	10.56	298.15	-7.39	53.21	0.1587	1026.0	800.4
109	0.00	2.35	0.00	1.18	12.93	298.08	-7.46	42.99	0.1864	834.0	658.1
110	0.00	0.87	0.00	0.44	12.66	298.06	-7.48	44.11	0.1833	719.0	584.7
111	0.00	1.22	0.00	0.62	16.65	297.89	-7.65	32.56	0.2380	897.0	612.2
112	0.00	3.39	0.00	1.71	13.56	297.82	-7.72	41.70	0.1973	926.0	645.9
113	0.00	2.78	0.00	1.41	13.76	297.16	-8.38	43.29	0.2074	663.0	617.2
114	0.00	1.30	0.00	0.66	14.15	296.74	-8.80	43.37	0.2170	897.0	675.5
115	0.00	1.13	0.00	0.57	14.69	296.50	-9.04	42.41	0.2264	934.0	810.5
116	0.00	1.04	0.00	0.53	14.33	296.49	-9.06	43.60	0.2222	939.0	749.0
117	0.00	1.57	0.00	0.80	14.51	296.17	-9.38	44.01	0.2281	851.0	662.2

	Proj. U	- Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	- Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	- Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	- Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	- Heliographic latitude B; positive: North, negative: South
	L	- Heliographic longitude L
	LCM	- Longitudinal distance from the Sun's central meridian
	Pos. angle	- Position angle
	r	- Distance from the centre of Sun's disc in terms of Sun's radius
	MU	- Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	- Mean magnetic field within the penumbra contour averaged the pixel values with sign.
