SDO HMI 2011-10-24 02:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 61.93 | 314.64 | 35.00 | 177.65 | 15.53 | 278.66 | -26.88 | 66.37 | 0.4767 | -58.7 | -125.2 | |
|
previous
or next observation for the same group /

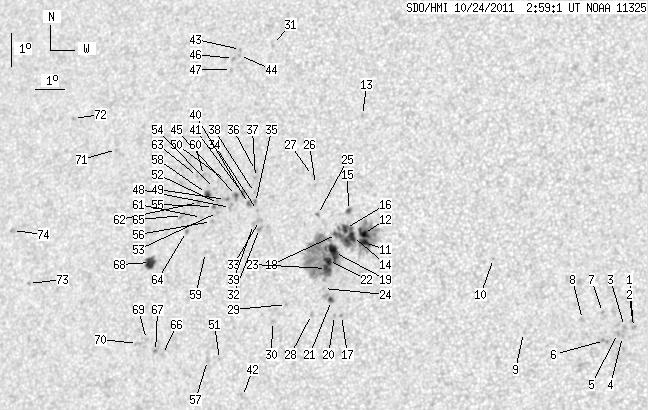

back to the solar disc SDO HMI 2011-10-24 02:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.00 | 0.00 | 1.04 | 13.38 | 289.61 | -15.93 | 61.31 | 0.3057 | -986.0 | -844.6 | |
| 0.00 | 1.65 | 0.00 | 0.86 | 13.59 | 289.57 | -15.98 | 60.76 | 0.3080 | -822.0 | -680.3 | |
| 0.00 | 1.13 | 0.00 | 0.59 | 13.41 | 289.32 | -16.22 | 61.64 | 0.3101 | -839.0 | -756.0 | |
| 0.00 | 1.30 | 0.00 | 0.68 | 13.10 | 289.28 | -16.26 | 62.59 | 0.3086 | -936.0 | -726.9 | |
| 0.00 | 1.83 | 0.00 | 0.95 | 13.19 | 289.11 | -16.43 | 62.55 | 0.3117 | -974.0 | -864.5 | |
| 0.00 | 2.96 | 0.00 | 1.54 | 12.97 | 288.71 | -16.83 | 63.71 | 0.3161 | -815.0 | -757.7 | |
| 0.00 | 1.39 | 0.00 | 0.73 | 13.81 | 288.59 | -16.95 | 61.47 | 0.3237 | -731.0 | -539.6 | |
| 0.00 | 1.65 | 0.00 | 0.87 | 13.58 | 287.96 | -17.58 | 62.89 | 0.3313 | -781.0 | -584.7 | |
| 0.00 | 0.70 | 0.00 | 0.37 | 13.14 | 286.09 | -19.45 | 66.12 | 0.3562 | -716.0 | -499.5 | |
| 0.00 | 0.96 | 0.00 | 0.51 | 15.34 | 284.90 | -20.64 | 61.83 | 0.3873 | -756.0 | -515.2 | |
| 5.39 | 45.14 | 2.99 | 25.03 | 15.68 | 280.53 | -25.01 | 64.93 | 0.4513 | -1223.9 | -618.1 | |
| 5.65 | -11.00 | 3.14 | -11.00 | 15.95 | 280.46 | -25.08 | 64.42 | 0.4538 | -1215.7 | 999999 | |
| 0.00 | 1.39 | 0.00 | 0.79 | 19.54 | 279.88 | -25.67 | 57.85 | 0.4841 | -789.0 | -662.0 | |
| 4.44 | 33.74 | 2.47 | 18.82 | 15.84 | 280.09 | -25.45 | 64.91 | 0.4583 | -1094.4 | -767.0 | |
| 1.74 | 3.04 | 0.97 | 1.70 | 16.63 | 279.85 | -25.70 | 63.51 | 0.4661 | -795.0 | -752.1 | |
| 2.78 | -14.00 | 1.55 | -14.00 | 16.08 | 279.82 | -25.72 | 64.63 | 0.4634 | -865.3 | 999999 | |
| 0.00 | 1.22 | 0.00 | 0.67 | 13.45 | 280.02 | -25.52 | 70.01 | 0.4478 | -888.0 | -741.4 | |
| 3.39 | -14.00 | 1.90 | -14.00 | 15.88 | 279.54 | -26.00 | 65.23 | 0.4664 | -747.1 | 999999 | |
| 10.44 | 110.89 | 5.83 | 62.12 | 15.34 | 279.54 | -26.00 | 66.34 | 0.4635 | -1111.0 | -227.9 | |
| 0.00 | 1.13 | 0.00 | 0.63 | 13.44 | 279.78 | -25.76 | 70.17 | 0.4512 | -748.0 | -590.3 | |
| 2.26 | 6.35 | 1.26 | 3.53 | 13.89 | 279.63 | -25.92 | 69.31 | 0.4554 | -1004.2 | -688.1 | |
| 3.91 | -19.00 | 2.19 | -19.00 | 15.09 | 279.37 | -26.17 | 66.97 | 0.4647 | -1020.1 | 999999 | |
| 6.09 | -19.00 | 3.40 | -19.00 | 14.84 | 279.33 | -26.21 | 67.49 | 0.4640 | -939.9 | 999999 | |
| 0.00 | 0.43 | 0.00 | 0.24 | 14.24 | 279.31 | -26.23 | 68.77 | 0.4616 | -806.0 | -661.2 | |
| 0.00 | 1.30 | 0.00 | 0.74 | 16.46 | 278.79 | -26.75 | 64.59 | 0.4798 | -656.0 | -505.0 | |
| 0.00 | 1.22 | 0.00 | 0.69 | 17.37 | 278.58 | -26.96 | 62.98 | 0.4877 | -643.0 | -511.4 | |
| 0.00 | 0.96 | 0.00 | 0.54 | 17.64 | 278.44 | -27.11 | 62.58 | 0.4912 | -573.0 | -389.8 | |
| 0.00 | 1.91 | 0.00 | 1.07 | 13.44 | 278.99 | -26.55 | 70.62 | 0.4627 | -629.0 | -408.8 | |
| 0.00 | 0.96 | 0.00 | 0.54 | 13.70 | 278.10 | -27.44 | 70.55 | 0.4768 | -598.0 | -425.5 | |
| 0.00 | 1.39 | 0.00 | 0.79 | 13.17 | 277.68 | -27.86 | 71.83 | 0.4809 | -590.0 | -401.2 | |
| 0.00 | 2.17 | 0.00 | 1.28 | 21.60 | 276.23 | -29.31 | 57.18 | 0.5437 | 669.0 | 528.4 | |
| 0.00 | 2.78 | 0.00 | 1.59 | 15.96 | 276.83 | -28.71 | 66.82 | 0.5044 | 919.0 | 799.2 | |
| 0.00 | 2.78 | 0.00 | 1.60 | 16.20 | 276.80 | -28.75 | 66.39 | 0.5061 | 877.0 | 778.4 | |
| 0.00 | 0.96 | 0.00 | 0.55 | 16.50 | 276.68 | -28.87 | 65.89 | 0.5091 | 943.0 | 742.7 | |
| 0.00 | 2.35 | 0.00 | 1.35 | 16.74 | 276.57 | -28.98 | 65.52 | 0.5118 | 950.0 | 808.6 | |
| 0.00 | 3.04 | 0.00 | 1.76 | 17.71 | 276.40 | -29.14 | 63.83 | 0.5190 | 919.0 | 652.6 | |
| 0.00 | 1.39 | 0.00 | 0.80 | 17.50 | 276.44 | -29.11 | 64.20 | 0.5174 | 876.0 | 677.8 | |
| 0.00 | 0.96 | 0.00 | 0.55 | 17.04 | 276.48 | -29.06 | 65.01 | 0.5145 | 892.0 | 703.6 | |
| 0.00 | 1.65 | 0.00 | 0.95 | 16.07 | 276.60 | -28.94 | 66.74 | 0.5081 | 626.0 | 506.2 | |
| 1.39 | 2.26 | 0.80 | 1.30 | 16.70 | 276.32 | -29.22 | 65.74 | 0.5149 | 845.4 | 811.6 | |
| 1.57 | 2.61 | 0.91 | 1.51 | 17.02 | 276.05 | -29.49 | 65.30 | 0.5202 | 852.7 | 825.5 | |
| 0.00 | 2.26 | 0.00 | 1.28 | 10.88 | 276.90 | -28.64 | 76.81 | 0.4854 | 153.0 | 286.0 | |
| 0.00 | 0.87 | 0.00 | 0.52 | 21.40 | 275.10 | -30.45 | 58.34 | 0.5565 | 726.0 | 647.4 | |
| 0.00 | 0.96 | 0.00 | 0.57 | 21.21 | 275.10 | -30.44 | 58.64 | 0.5553 | 824.0 | 644.2 | |
| 1.57 | 3.83 | 0.91 | 2.22 | 16.92 | 275.85 | -29.69 | 65.60 | 0.5224 | 927.4 | 798.4 | |
| 0.00 | 1.74 | 0.00 | 1.04 | 21.11 | 274.90 | -30.64 | 58.95 | 0.5571 | 1024.0 | 782.8 | |
| 0.00 | 1.30 | 0.00 | 0.78 | 20.77 | 274.91 | -30.64 | 59.51 | 0.5551 | 751.0 | 522.9 | |
| 0.00 | 2.17 | 0.00 | 1.26 | 16.55 | 275.70 | -29.84 | 66.37 | 0.5227 | 697.0 | 678.8 | |
| 0.00 | 2.96 | 0.00 | 1.72 | 16.78 | 275.48 | -30.06 | 66.07 | 0.5268 | 857.0 | 732.6 | |
| 0.00 | 0.96 | 0.00 | 0.56 | 17.36 | 275.38 | -30.16 | 65.09 | 0.5309 | 693.0 | 570.5 | |
| 0.00 | 0.87 | 0.00 | 0.50 | 11.96 | 275.98 | -29.56 | 74.98 | 0.5018 | 740.0 | 572.9 | |
| 0.00 | 2.52 | 0.00 | 1.47 | 16.65 | 275.25 | -30.29 | 66.43 | 0.5293 | 754.0 | 714.9 | |
| 0.00 | 0.61 | 0.00 | 0.35 | 16.38 | 275.26 | -30.28 | 66.93 | 0.5279 | 696.0 | 589.7 | |
| 0.00 | 0.70 | 0.00 | 0.41 | 17.10 | 275.03 | -30.51 | 65.75 | 0.5344 | 682.0 | 542.9 | |
| 0.35 | 1.04 | 0.20 | 0.61 | 16.55 | 275.09 | -30.45 | 66.70 | 0.5310 | 853.0 | 748.0 | |
| 0.00 | 1.30 | 0.00 | 0.76 | 16.10 | 275.10 | -30.45 | 67.53 | 0.5290 | 760.0 | 667.2 | |
| 0.00 | 2.52 | 0.00 | 1.45 | 11.91 | 275.57 | -29.98 | 75.22 | 0.5077 | 758.0 | 582.5 | |
| 2.78 | 4.09 | 1.63 | 2.40 | 16.94 | 274.77 | -30.77 | 66.19 | 0.5371 | 783.4 | 727.0 | |
| 0.00 | 1.04 | 0.00 | 0.61 | 15.15 | 275.04 | -30.50 | 69.29 | 0.5259 | 742.0 | 549.5 | |
| 0.00 | 2.09 | 0.00 | 1.23 | 17.48 | 274.56 | -30.98 | 65.35 | 0.5424 | 587.0 | 582.5 | |
| 0.00 | 0.87 | 0.00 | 0.51 | 16.20 | 274.72 | -30.82 | 67.53 | 0.5346 | 829.0 | 653.5 | |
| 0.00 | 1.74 | 0.00 | 1.02 | 16.65 | 274.53 | -31.01 | 66.83 | 0.5391 | 670.0 | 518.5 | |
| 0.00 | 1.13 | 0.00 | 0.67 | 17.44 | 274.35 | -31.20 | 65.54 | 0.5450 | 492.0 | 359.8 | |
| 0.00 | 1.65 | 0.00 | 0.97 | 15.75 | 274.25 | -31.29 | 68.57 | 0.5391 | 775.0 | 587.5 | |
| 0.00 | 3.22 | 0.00 | 1.90 | 16.23 | 274.02 | -31.52 | 67.83 | 0.5442 | 580.0 | 480.9 | |
| 0.00 | 1.57 | 0.00 | 0.91 | 12.01 | 273.95 | -31.59 | 75.54 | 0.5312 | 517.0 | 477.4 | |
| 0.00 | 1.22 | 0.00 | 0.71 | 12.09 | 273.69 | -31.85 | 75.47 | 0.5352 | 755.0 | 691.1 | |
| 8.18 | 10.61 | 4.85 | 6.29 | 14.76 | 273.11 | -32.43 | 70.85 | 0.5512 | 844.5 | 589.1 | |
| 0.00 | 1.39 | 0.00 | 0.82 | 12.44 | 273.32 | -32.22 | 74.96 | 0.5413 | 752.0 | 656.6 | |
| 0.00 | 2.00 | 0.00 | 1.18 | 12.30 | 273.01 | -32.53 | 75.30 | 0.5453 | 585.0 | 496.6 | |
| 0.00 | 1.13 | 0.00 | 0.69 | 18.12 | 271.18 | -34.36 | 65.99 | 0.5894 | 751.0 | 611.6 | |
| 0.00 | 0.78 | 0.00 | 0.49 | 18.98 | 269.32 | -36.23 | 65.47 | 0.6166 | 656.0 | 545.8 | |
| 0.00 | 1.39 | 0.00 | 0.87 | 13.90 | 268.68 | -36.86 | 73.80 | 0.6086 | 773.0 | 659.9 | |
| 0.00 | 2.52 | 0.00 | 1.60 | 15.46 | 267.75 | -37.79 | 71.57 | 0.6248 | 697.0 | 557.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
