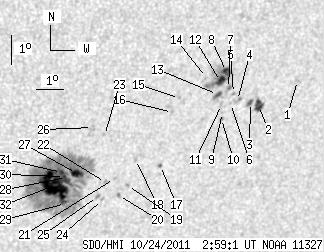

SDO HMI 2011-10-24 02:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 73.75 | 377.28 | 46.38 | 235.96 | -21.50 | 332.49 | 26.94 | 223.72 | 0.6125 | -336.7 | -237.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-24 02:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.00 | 0.00 | 1.32 | -19.06 | 339.47 | 33.93 | 233.11 | 0.6620 | 65.0 | 164.5 | |
| 7.74 | 9.83 | 5.06 | 6.42 | -19.81 | 338.17 | 32.63 | 231.12 | 0.6539 | 639.6 | 446.1 | |
| 2.35 | 3.13 | 1.53 | 2.03 | -19.69 | 337.84 | 32.30 | 231.00 | 0.6497 | 683.1 | 591.3 | |
| 0.00 | 3.48 | 0.00 | 2.25 | -19.60 | 337.33 | 31.79 | 230.69 | 0.6437 | 587.0 | 554.5 | |
| 0.00 | 0.87 | 0.00 | 0.56 | -19.36 | 337.13 | 31.59 | 230.83 | 0.6398 | 557.0 | 552.6 | |
| 0.00 | 0.96 | 0.00 | 0.62 | -19.69 | 337.09 | 31.55 | 230.38 | 0.6419 | 547.0 | 419.2 | |
| 0.00 | 3.48 | 0.00 | 2.23 | -19.19 | 336.91 | 31.37 | 230.86 | 0.6361 | 869.0 | 700.8 | |
| 4.26 | 34.87 | 2.71 | 22.16 | -18.63 | 336.72 | 31.17 | 231.43 | 0.6297 | 950.2 | 716.4 | |
| 0.00 | 0.78 | 0.00 | 0.50 | -19.97 | 336.86 | 31.31 | 229.81 | 0.6417 | 580.0 | 515.8 | |
| 0.00 | 1.22 | 0.00 | 0.79 | -20.17 | 336.86 | 31.32 | 229.57 | 0.6433 | 597.0 | 491.6 | |
| 0.00 | 2.44 | 0.00 | 1.56 | -19.70 | 336.76 | 31.22 | 230.07 | 0.6386 | 608.0 | 479.8 | |
| 5.91 | -8.00 | 3.77 | -8.00 | -18.94 | 336.56 | 31.02 | 230.88 | 0.6306 | 1034.3 | 999999 | |
| 2.61 | 4.61 | 1.67 | 2.95 | -19.37 | 336.54 | 31.00 | 230.31 | 0.6337 | 583.4 | 573.6 | |
| 0.00 | 0.61 | 0.00 | 0.38 | -18.79 | 336.01 | 30.47 | 230.60 | 0.6236 | 658.0 | 614.6 | |
| 0.00 | 0.96 | 0.00 | 0.60 | -19.43 | 335.16 | 29.62 | 228.99 | 0.6199 | 623.0 | 596.9 | |
| 0.00 | 1.65 | 0.00 | 1.04 | -19.88 | 335.00 | 29.45 | 228.26 | 0.6220 | 582.0 | 392.4 | |
| 1.48 | 1.39 | 0.95 | 0.89 | -21.63 | 334.93 | 29.39 | 226.02 | 0.6362 | -643.2 | 0.0 | |
| 0.00 | 1.74 | 0.00 | 1.10 | -21.39 | 333.96 | 28.42 | 225.40 | 0.6247 | -452.0 | -383.5 | |
| 0.00 | 1.57 | 0.00 | 1.00 | -22.25 | 333.86 | 28.31 | 224.25 | 0.6314 | -687.0 | -477.9 | |
| 0.00 | 1.74 | 0.00 | 1.11 | -22.57 | 333.60 | 28.06 | 223.62 | 0.6319 | -664.0 | -502.4 | |
| 0.00 | 0.96 | 0.00 | 0.60 | -21.99 | 333.32 | 27.78 | 224.04 | 0.6240 | -408.0 | -298.9 | |
| 0.00 | 1.30 | 0.00 | 0.82 | -22.11 | 333.02 | 27.48 | 223.59 | 0.6223 | -843.0 | -596.1 | |
| 0.00 | 1.04 | 0.00 | 0.65 | -20.53 | 332.67 | 27.12 | 225.16 | 0.6043 | -635.0 | -626.5 | |
| 0.00 | 1.48 | 0.00 | 0.94 | -22.68 | 333.04 | 27.49 | 222.93 | 0.6277 | -442.0 | -353.8 | |
| 0.00 | 1.91 | 0.00 | 1.21 | -22.57 | 332.83 | 27.29 | 222.85 | 0.6247 | -634.0 | -527.5 | |
| 0.00 | 3.22 | 0.00 | 1.98 | -20.25 | 332.18 | 26.64 | 225.03 | 0.5969 | -600.0 | -523.8 | |
| 7.74 | 290.04 | 4.82 | 180.25 | -21.76 | 331.90 | 26.36 | 222.87 | 0.6085 | -935.0 | -397.1 | |
| 0.35 | -27.00 | 0.22 | -27.00 | -21.88 | 331.57 | 26.03 | 222.37 | 0.6065 | -870.8 | 999999 | |
| 0.61 | -27.00 | 0.38 | -27.00 | -22.76 | 331.71 | 26.17 | 221.48 | 0.6162 | -608.9 | 999999 | |
| 1.13 | -27.00 | 0.70 | -27.00 | -21.84 | 331.49 | 25.95 | 222.33 | 0.6054 | -932.4 | 999999 | |
| 1.83 | -27.00 | 1.13 | -27.00 | -21.71 | 331.36 | 25.81 | 222.35 | 0.6028 | -1046.3 | 999999 | |
| 37.74 | -27.00 | 23.44 | -27.00 | -22.13 | 331.15 | 25.61 | 221.63 | 0.6050 | -1143.5 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
