Sunspot Group 11324

group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP

11324	120.61	486.44	60.46	243.89	12.44	303.21	-1.78	343.25	0.1540	55.2	91.3

previous or next observation for the same group / back to the solar disc

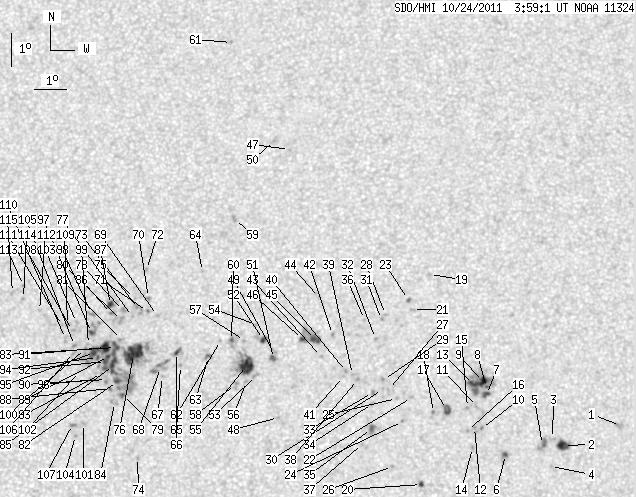

SDO HMI 2011-10-24 03:59:01 UT
No observation available

See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP

1	0.00	3.74	0.00	1.89	10.49	314.80	9.81	299.32	0.1930	-819.0	-745.0
2	7.91	9.65	3.97	4.85	9.92	313.04	8.04	301.25	0.1620	-1046.1	-766.5
3	0.00	2.35	0.00	1.18	10.13	312.71	7.71	303.45	0.1591	-623.0	-693.3
4	0.00	0.78	0.00	0.39	9.29	312.63	7.63	299.02	0.1506	-877.0	-742.1
5	0.00	7.22	0.00	3.62	9.96	312.40	7.40	303.55	0.1530	-1202.0	-922.5
6	2.44	6.87	1.22	3.43	9.67	311.26	6.27	306.26	0.1341	-1065.1	-580.2
7	3.57	45.75	1.79	22.92	11.47	310.72	5.73	318.42	0.1480	-983.0	-663.4
8	0.78	-7.00	0.39	-7.00	11.68	310.72	5.73	319.34	0.1508	-854.7	999999
9	4.35	-7.00	2.18	-7.00	11.86	310.64	5.64	320.56	0.1522	-1245.1	999999
10	0.00	1.57	0.00	0.78	10.45	310.55	5.55	314.18	0.1333	-1089.0	-923.9
11	0.00	2.17	0.00	1.09	11.11	310.44	5.44	318.15	0.1402	-657.0	-664.8
12	0.00	1.04	0.00	0.52	10.48	310.34	5.34	315.46	0.1311	-1028.0	-839.2
13	3.04	-7.00	1.52	-7.00	11.77	310.33	5.33	321.74	0.1477	-1128.9	999999
14	0.00	1.57	0.00	0.78	9.89	310.26	5.27	312.39	0.1231	-1062.0	-783.1
15	0.00	1.48	0.00	0.74	11.09	310.13	5.14	319.64	0.1364	-1120.0	-860.3
16	0.00	1.39	0.00	0.69	10.40	310.12	5.13	316.14	0.1274	-971.0	-733.0
17	0.00	6.18	0.00	3.08	11.03	309.49	4.50	323.07	0.1287	-1273.0	-1092.8
18	0.00	1.30	0.00	0.65	10.94	309.09	4.10	325.15	0.1234	-1044.0	-873.9
19	0.00	1.57	0.00	0.79	15.10	309.04	4.05	338.46	0.1864	-777.0	-532.7
20	1.91	2.52	0.95	1.25	8.79	308.70	3.71	314.73	0.0905	726.5	453.0
21	0.00	2.00	0.00	1.00	14.04	308.50	3.50	339.00	0.1662	-862.0	-692.0
22	0.00	1.39	0.00	0.69	11.40	308.43	3.44	331.59	0.1241	-942.0	-666.7
23	0.00	1.83	0.00	0.92	14.35	308.38	3.38	340.29	0.1703	-952.0	-807.6
24	0.00	0.78	0.00	0.39	10.68	308.15	3.15	330.64	0.1108	-943.0	-843.3
25	0.00	0.87	0.00	0.43	11.37	307.97	2.98	334.77	0.1201	-1016.0	-789.5
26	0.00	1.13	0.00	0.56	9.33	307.83	2.84	326.10	0.0880	-983.0	-721.3
27	0.00	1.22	0.00	0.61	11.64	307.73	2.74	337.47	0.1227	-895.0	-696.9
28	0.00	0.78	0.00	0.39	13.90	307.66	2.67	343.41	0.1591	-737.0	-582.6
29	0.00	0.96	0.00	0.48	11.94	307.58	2.59	339.47	0.1266	-1008.0	-848.6
30	0.00	0.87	0.00	0.43	11.64	307.55	2.56	338.84	0.1215	-714.0	-533.2
31	0.00	1.13	0.00	0.57	13.75	307.54	2.55	343.87	0.1561	-825.0	-692.2
32	0.00	1.30	0.00	0.65	13.17	307.35	2.36	343.97	0.1456	-1022.0	-832.7
33	0.00	2.17	0.00	1.08	11.55	307.24	2.25	340.92	0.1182	-1048.0	-880.7
34	0.00	2.17	0.00	1.08	11.22	307.24	2.25	339.97	0.1128	-692.0	-662.6
35	1.04	6.00	0.52	2.99	10.47	307.21	2.21	337.70	0.1004	-1023.0	-828.0
36	0.00	0.96	0.00	0.48	13.75	307.02	2.02	347.05	0.1538	-779.0	-557.5
37	0.00	0.96	0.00	0.48	10.02	306.93	1.94	338.56	0.0914	-619.0	-374.2
38	0.00	1.74	0.00	0.87	11.94	306.79	1.80	345.43	0.1225	-1153.0	-892.8
39	0.00	1.22	0.00	0.61	12.09	306.64	1.64	346.90	0.1244	-952.0	-772.7
40	0.00	1.65	0.00	0.82	12.18	306.46	1.46	348.46	0.1253	-1009.0	-802.5
41	0.00	1.04	0.00	0.52	12.03	306.36	1.37	348.94	0.1224	-928.0	-706.4
42	0.00	1.65	0.00	0.83	13.30	306.03	1.04	352.88	0.1432	-949.0	-743.9
43	0.00	1.48	0.00	0.74	12.64	305.69	0.70	354.75	0.1311	-973.0	-730.6
44	0.00	0.96	0.00	0.48	14.41	305.64	0.64	356.12	0.1618	-854.0	-715.2
45	6.26	21.83	3.13	10.92	13.15	305.51	0.52	356.37	0.1397	-1060.5	-492.8
46	1.65	-45.00	0.83	-45.00	13.15	305.11	0.12	359.16	0.1395	-958.2	999999
47	0.00	1.13	0.00	0.58	18.92	304.71	-0.29	1.14	0.2388	-908.0	-726.4
48	0.00	1.30	0.00	0.65	10.81	304.38	-0.61	6.07	0.0992	999.0	738.4
49	0.00	2.87	0.00	1.43	12.73	304.26	-0.74	5.44	0.1327	774.0	749.7
50	0.00	3.57	0.00	1.82	19.20	304.23	-0.76	2.96	0.2438	-1005.0	-639.8
51	0.00	3.48	0.00	1.74	12.58	304.23	-0.77	5.78	0.1302	1168.0	1017.1
52	2.87	8.70	1.44	4.35	13.15	303.92	-1.07	7.49	0.1407	1079.8	784.0
53	0.00	2.87	0.00	1.43	12.06	303.71	-1.28	10.33	0.1226	-618.0	-563.5
54	0.00	1.04	0.00	0.52	13.60	303.67	-1.32	8.69	0.1490	708.0	620.2
55	16.26	33.40	8.12	16.68	12.36	303.40	-1.59	12.20	0.1288	-1126.3	-603.2
56	0.00	1.48	0.00	0.74	11.88	303.41	-1.59	13.04	0.1206	-896.0	-632.6
57	0.00	1.48	0.00	0.74	13.12	303.34	-1.66	11.50	0.1418	-799.0	-470.8
58	0.00	4.17	0.00	2.08	11.79	303.07	-1.92	15.87	0.1205	-851.0	-742.9
59	0.00	2.78	0.00	1.41	16.78	303.00	-2.00	9.41	0.2049	-913.0	-714.3
60	0.61	3.48	0.30	1.74	13.11	302.94	-2.05	14.16	0.1433	1077.0	236.1
61	0.00	1.22	0.00	0.63	22.23	302.83	-2.16	6.78	0.2968	-709.0	-536.0
62	0.00	1.04	0.00	0.52	13.11	302.60	-2.39	16.37	0.1448	876.0	686.4
63	1.65	3.31	0.83	1.65	12.63	302.24	-2.75	19.83	0.1388	-951.5	-729.0
64	0.00	1.13	0.00	0.57	15.19	302.02	-2.97	16.01	0.1821	793.0	588.4
65	0.00	1.13	0.00	0.57	12.36	301.39	-3.61	26.12	0.1402	-730.0	-469.2
66	1.48	5.04	0.74	2.53	12.75	301.26	-3.73	25.69	0.1472	855.5	591.7
67	0.00	1.13	0.00	0.57	12.02	300.84	-4.15	30.63	0.1396	274.0	162.1
68	0.00	13.57	0.00	6.79	12.29	300.78	-4.22	30.04	0.1442	487.0	706.0
69	0.00	1.74	0.00	0.87	13.86	300.66	-4.34	25.88	0.1689	876.0	747.9
70	0.00	1.57	0.00	0.79	14.40	300.37	-4.62	25.92	0.1795	968.0	792.6
71	0.00	1.30	0.00	0.66	13.98	300.35	-4.65	27.13	0.1731	975.0	902.6
72	0.00	1.74	0.00	0.88	15.24	300.29	-4.70	24.30	0.1932	925.0	669.4
73	0.00	5.57	0.00	2.80	14.06	300.07	-4.93	28.26	0.1767	585.0	771.1
74	0.00	1.57	0.00	0.78	9.59	300.12	-4.88	47.27	0.1146	954.0	729.4
75	0.00	0.87	0.00	0.44	14.36	299.94	-5.06	28.06	0.1823	732.0	575.2
76	24.01	47.92	12.04	24.03	12.68	299.94	-5.05	33.25	0.1574	1170.0	614.6
77	0.00	1.13	0.00	0.57	13.82	299.89	-5.11	29.82	0.1746	1164.0	913.0
78	0.00	2.87	0.00	1.45	14.00	299.61	-5.39	30.62	0.1797	969.0	739.2
79	1.30	101.93	0.65	51.14	11.44	299.63	-5.36	39.87	0.1436	955.2	742.6
80	0.00	3.13	0.00	1.58	13.70	299.55	-5.44	31.78	0.1757	1025.0	919.1
81	0.00	1.57	0.00	0.79	13.13	299.57	-5.43	33.57	0.1674	796.0	616.7
82	2.35	-79.00	1.18	-79.00	11.86	299.47	-5.52	38.85	0.1509	1149.1	999999
83	6.00	-79.00	3.01	-79.00	12.88	299.39	-5.61	35.28	0.1657	1067.0	999999
84	0.00	4.17	0.00	2.09	11.23	299.39	-5.60	42.09	0.1435	643.0	745.1
85	6.70	-79.00	3.36	-79.00	12.34	299.34	-5.66	37.55	0.1587	1291.8	999999
86	0.00	1.57	0.00	0.79	13.91	299.24	-5.75	32.58	0.1816	895.0	752.4
87	3.48	4.44	1.75	2.24	14.18	299.20	-5.79	31.93	0.1859	880.8	690.4
88	0.00	1.22	0.00	0.61	11.65	299.23	-5.76	40.96	0.1508	1071.0	971.5
89	1.30	-79.00	0.66	-79.00	12.61	299.18	-5.82	37.27	0.1641	1287.3	999999
90	0.00	3.57	0.00	1.79	11.92	299.13	-5.86	40.26	0.1553	767.0	761.0
91	6.00	-79.00	3.02	-79.00	12.88	299.08	-5.91	36.73	0.1688	1166.3	999999
92	2.52	-79.00	1.27	-79.00	12.46	299.09	-5.90	38.26	0.1630	1113.5	999999
93	0.00	1.39	0.00	0.70	12.10	298.97	-6.02	40.25	0.1594	791.0	626.8
94	1.48	-79.00	0.74	-79.00	12.58	298.84	-6.15	38.95	0.1672	1038.0	999999
95	7.48	-79.00	3.76	-79.00	12.73	298.74	-6.25	38.80	0.1702	1034.2	999999
96	0.00	4.61	0.00	2.31	11.92	298.76	-6.23	41.98	0.1595	711.0	663.7
97	2.17	7.74	1.09	3.90	13.33	298.64	-6.36	37.10	0.1794	956.5	786.3
98	0.00	4.00	0.00	2.02	13.90	298.62	-6.37	35.27	0.1875	611.0	360.6
99	0.00	0.96	0.00	0.48	12.97	298.55	-6.44	38.75	0.1755	768.0	650.3
100	0.00	1.13	0.00	0.57	12.84	298.46	-6.53	39.58	0.1748	926.0	805.4
101	0.00	1.83	0.00	0.91	10.59	298.46	-6.54	49.64	0.1475	974.0	739.3
102	0.00	0.87	0.00	0.44	12.15	298.30	-6.70	43.02	0.1679	532.0	379.6
103	0.00	1.30	0.00	0.66	13.62	298.17	-6.83	38.04	0.1884	827.0	647.1
104	0.00	1.04	0.00	0.52	10.23	298.22	-6.77	52.56	0.1469	983.0	845.1
105	0.00	1.57	0.00	0.79	12.93	298.12	-6.87	40.67	0.1797	886.0	718.4
106	0.00	2.00	0.00	1.01	12.72	298.10	-6.90	41.57	0.1773	763.0	640.0
107	0.00	2.78	0.00	1.39	10.56	298.12	-6.87	51.20	0.1516	1015.0	812.2
108	0.00	1.74	0.00	0.88	13.38	298.05	-6.94	39.34	0.1864	830.0	679.4
109	0.00	1.74	0.00	0.88	13.56	297.89	-7.10	39.35	0.1905	867.0	698.2
110	0.00	2.96	0.00	1.49	13.14	297.84	-7.15	41.03	0.1856	664.0	553.4
111	0.00	0.78	0.00	0.40	13.53	297.74	-7.26	40.06	0.1918	700.0	564.3
112	0.00	1.65	0.00	0.84	13.97	297.01	-7.98	41.21	0.2055	850.0	535.6
113	0.00	1.39	0.00	0.71	14.72	296.48	-8.51	40.61	0.2209	977.0	766.1
114	0.00	1.22	0.00	0.62	14.33	296.50	-8.50	41.79	0.2158	857.0	751.1
115	0.00	1.30	0.00	0.66	14.51	296.15	-8.84	42.35	0.2220	662.0	649.7

	Proj. U	- Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	- Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	- Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	- Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	- Heliographic latitude B; positive: North, negative: South
	L	- Heliographic longitude L
	LCM	- Longitudinal distance from the Sun's central meridian
	Pos. angle	- Position angle
	r	- Distance from the centre of Sun's disc in terms of Sun's radius
	MU	- Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	- Mean magnetic field within the penumbra contour averaged the pixel values with sign.
