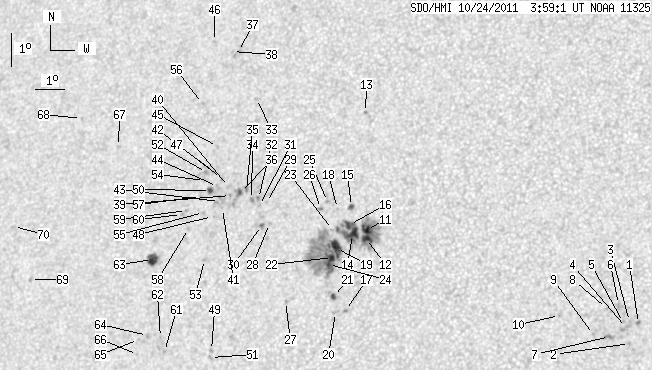

SDO HMI 2011-10-24 03:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 60.09 | 312.77 | 33.75 | 175.68 | 15.61 | 278.74 | -26.25 | 65.73 | 0.4681 | -62.7 | -122.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-24 03:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.91 | 0.00 | 0.99 | 13.39 | 289.64 | -15.36 | 60.44 | 0.2975 | -961.0 | -858.9 | |
| 0.00 | 1.39 | 0.00 | 0.72 | 12.78 | 289.39 | -15.60 | 62.64 | 0.2967 | -1030.0 | -789.2 | |
| 0.00 | 0.96 | 0.00 | 0.50 | 13.44 | 289.35 | -15.65 | 60.71 | 0.3021 | -806.0 | -632.7 | |
| 0.00 | 4.96 | 0.00 | 2.57 | 13.26 | 289.26 | -15.73 | 61.37 | 0.3020 | -933.0 | -762.7 | |
| 0.00 | 1.04 | 0.00 | 0.54 | 13.41 | 289.16 | -15.84 | 61.08 | 0.3046 | -697.0 | -680.8 | |
| 0.00 | 1.74 | 0.00 | 0.91 | 13.95 | 288.96 | -16.03 | 59.80 | 0.3115 | -800.0 | -694.3 | |
| 0.00 | 4.26 | 0.00 | 2.22 | 12.98 | 288.74 | -16.25 | 62.93 | 0.3076 | -965.0 | -733.2 | |
| 0.00 | 1.22 | 0.00 | 0.64 | 13.82 | 288.59 | -16.41 | 60.70 | 0.3159 | -790.0 | -581.1 | |
| 0.00 | 1.04 | 0.00 | 0.54 | 13.02 | 288.23 | -16.77 | 63.46 | 0.3156 | -827.0 | -650.4 | |
| 0.00 | 1.22 | 0.00 | 0.64 | 13.57 | 287.10 | -17.90 | 63.30 | 0.3359 | -807.0 | -596.0 | |
| 6.52 | 81.50 | 3.61 | 45.10 | 15.96 | 280.46 | -24.54 | 63.96 | 0.4463 | -1181.5 | -629.0 | |
| 5.31 | -11.00 | 2.93 | -11.00 | 15.69 | 280.49 | -24.50 | 64.51 | 0.4442 | -1215.8 | 999999 | |
| 0.00 | 0.96 | 0.00 | 0.54 | 19.53 | 279.89 | -25.10 | 57.37 | 0.4767 | -807.0 | -711.3 | |
| 10.00 | -11.00 | 5.55 | -11.00 | 15.79 | 280.00 | -24.99 | 64.67 | 0.4517 | -1036.9 | 999999 | |
| 2.52 | 2.70 | 1.40 | 1.50 | 16.64 | 279.85 | -25.14 | 63.04 | 0.4586 | -781.6 | -783.0 | |
| 4.70 | -11.00 | 2.61 | -11.00 | 16.09 | 279.86 | -25.14 | 64.16 | 0.4554 | -812.4 | 999999 | |
| 0.00 | 1.30 | 0.00 | 0.72 | 13.49 | 280.04 | -24.95 | 69.56 | 0.4396 | -912.0 | -678.9 | |
| 0.00 | 1.04 | 0.00 | 0.58 | 16.56 | 279.38 | -25.62 | 63.56 | 0.4647 | -655.0 | -526.2 | |
| 10.87 | 102.98 | 6.04 | 57.43 | 15.35 | 279.51 | -25.48 | 65.95 | 0.4563 | -1079.9 | -263.9 | |
| 0.00 | 2.44 | 0.00 | 1.35 | 13.42 | 279.71 | -25.28 | 69.92 | 0.4442 | -570.0 | -559.8 | |
| 2.52 | 5.65 | 1.40 | 3.13 | 13.90 | 279.59 | -25.41 | 68.96 | 0.4481 | -1012.7 | -736.7 | |
| 2.52 | -19.00 | 1.40 | -19.00 | 15.07 | 279.41 | -25.59 | 66.59 | 0.4563 | -1063.1 | 999999 | |
| 0.00 | 1.04 | 0.00 | 0.58 | 15.92 | 279.30 | -25.70 | 64.93 | 0.4623 | -448.0 | -356.9 | |
| 1.57 | -19.00 | 0.87 | -19.00 | 14.86 | 279.30 | -25.69 | 67.12 | 0.4568 | -969.4 | 999999 | |
| 0.00 | 2.09 | 0.00 | 1.17 | 16.76 | 279.00 | -25.99 | 63.45 | 0.4710 | -691.0 | -519.9 | |
| 0.00 | 2.00 | 0.00 | 1.12 | 16.54 | 278.79 | -26.20 | 64.04 | 0.4727 | -705.0 | -516.3 | |
| 0.00 | 1.04 | 0.00 | 0.59 | 13.68 | 277.97 | -27.02 | 70.35 | 0.4707 | -641.0 | -465.4 | |
| 0.00 | 0.78 | 0.00 | 0.45 | 16.01 | 277.09 | -27.90 | 66.22 | 0.4936 | 881.0 | 727.7 | |
| 0.00 | 0.96 | 0.00 | 0.55 | 16.65 | 276.89 | -28.11 | 65.14 | 0.4995 | 699.0 | 624.6 | |
| 0.52 | 2.61 | 0.30 | 1.49 | 15.94 | 276.82 | -28.17 | 66.52 | 0.4970 | 960.2 | 738.9 | |
| 0.00 | 1.57 | 0.00 | 0.90 | 16.55 | 276.65 | -28.34 | 65.48 | 0.5022 | 908.0 | 662.1 | |
| 0.00 | 1.22 | 0.00 | 0.70 | 16.76 | 276.58 | -28.41 | 65.12 | 0.5042 | 923.0 | 834.9 | |
| 0.00 | 1.48 | 0.00 | 0.86 | 19.81 | 275.96 | -29.04 | 60.03 | 0.5292 | 797.0 | 727.8 | |
| 0.00 | 1.74 | 0.00 | 1.00 | 16.72 | 276.34 | -28.65 | 65.35 | 0.5073 | 906.0 | 837.1 | |
| 0.00 | 2.35 | 0.00 | 1.35 | 17.01 | 276.11 | -28.88 | 64.94 | 0.5119 | 997.0 | 804.1 | |
| 1.65 | 7.39 | 0.95 | 4.27 | 16.91 | 275.92 | -29.08 | 65.25 | 0.5141 | 915.4 | 770.7 | |
| 0.00 | 4.44 | 0.00 | 2.63 | 21.22 | 275.00 | -30.00 | 58.30 | 0.5499 | 825.0 | 728.9 | |
| 0.00 | 1.04 | 0.00 | 0.62 | 21.22 | 274.78 | -30.22 | 58.47 | 0.5526 | 582.0 | 449.3 | |
| 0.00 | 1.22 | 0.00 | 0.70 | 16.81 | 275.58 | -29.42 | 65.65 | 0.5182 | 879.0 | 732.6 | |
| 0.00 | 2.44 | 0.00 | 1.41 | 17.08 | 275.46 | -29.53 | 65.22 | 0.5211 | 814.0 | 663.3 | |
| 0.00 | 0.96 | 0.00 | 0.55 | 16.40 | 275.36 | -29.63 | 66.52 | 0.5192 | 493.0 | 458.4 | |
| 0.00 | 1.57 | 0.00 | 0.91 | 17.31 | 275.17 | -29.83 | 64.98 | 0.5262 | 756.0 | 549.9 | |
| 0.00 | 7.13 | 0.00 | 4.14 | 16.61 | 275.22 | -29.78 | 66.22 | 0.5221 | 400.0 | 660.2 | |
| 0.00 | 2.17 | 0.00 | 1.26 | 17.06 | 275.07 | -29.93 | 65.48 | 0.5263 | 593.0 | 549.9 | |
| 0.00 | 1.22 | 0.00 | 0.71 | 18.28 | 274.84 | -30.15 | 63.45 | 0.5353 | 699.0 | 532.2 | |
| 0.00 | 0.96 | 0.00 | 0.57 | 21.50 | 274.04 | -30.95 | 58.52 | 0.5633 | 649.0 | 499.8 | |
| 0.00 | 0.96 | 0.00 | 0.56 | 17.51 | 274.84 | -30.15 | 64.81 | 0.5315 | 584.0 | 521.5 | |
| 0.00 | 0.35 | 0.00 | 0.20 | 16.14 | 275.05 | -29.95 | 67.17 | 0.5224 | 601.0 | 639.8 | |
| 0.00 | 1.74 | 0.00 | 0.99 | 12.11 | 275.59 | -29.40 | 74.61 | 0.4999 | 765.0 | 613.5 | |
| 2.87 | 3.91 | 1.67 | 2.28 | 16.93 | 274.84 | -30.16 | 65.85 | 0.5288 | 864.1 | 508.2 | |
| 0.00 | 1.91 | 0.00 | 1.09 | 11.89 | 275.58 | -29.41 | 75.03 | 0.4995 | 803.0 | 623.5 | |
| 0.00 | 1.74 | 0.00 | 1.02 | 17.47 | 274.59 | -30.40 | 65.03 | 0.5346 | 628.0 | 628.4 | |
| 0.00 | 1.65 | 0.00 | 0.96 | 14.83 | 274.97 | -30.02 | 69.64 | 0.5180 | 808.0 | 701.6 | |
| 0.00 | 1.48 | 0.00 | 0.86 | 17.22 | 274.57 | -30.43 | 65.48 | 0.5338 | 597.0 | 488.8 | |
| 0.00 | 1.30 | 0.00 | 0.76 | 16.25 | 274.70 | -30.29 | 67.16 | 0.5275 | 796.0 | 601.4 | |
| 0.00 | 0.87 | 0.00 | 0.52 | 19.57 | 274.03 | -30.96 | 61.73 | 0.5526 | 608.0 | 486.4 | |
| 0.00 | 1.22 | 0.00 | 0.71 | 16.73 | 274.51 | -30.48 | 66.39 | 0.5323 | 570.0 | 455.6 | |
| 0.00 | 1.83 | 0.00 | 1.07 | 15.74 | 274.25 | -30.75 | 68.32 | 0.5316 | 753.0 | 584.3 | |
| 0.00 | 1.04 | 0.00 | 0.61 | 16.28 | 274.08 | -30.91 | 67.42 | 0.5361 | 644.0 | 505.4 | |
| 0.00 | 0.78 | 0.00 | 0.46 | 16.15 | 273.92 | -31.07 | 67.74 | 0.5378 | 595.0 | 505.9 | |
| 0.00 | 0.78 | 0.00 | 0.45 | 12.00 | 273.94 | -31.05 | 75.38 | 0.5235 | 770.0 | 675.2 | |
| 0.00 | 0.87 | 0.00 | 0.51 | 12.42 | 273.75 | -31.25 | 74.67 | 0.5274 | 674.0 | 601.5 | |
| 8.52 | 13.48 | 5.02 | 7.94 | 14.75 | 273.11 | -31.88 | 70.64 | 0.5436 | 849.1 | 406.1 | |
| 0.00 | 1.83 | 0.00 | 1.07 | 12.45 | 273.27 | -31.72 | 74.75 | 0.5342 | 679.0 | 619.1 | |
| 0.00 | 0.78 | 0.00 | 0.46 | 12.32 | 272.97 | -32.03 | 75.10 | 0.5382 | 551.0 | 460.2 | |
| 0.00 | 0.96 | 0.00 | 0.56 | 11.87 | 272.99 | -32.00 | 75.92 | 0.5368 | 426.0 | 396.9 | |
| 0.00 | 1.39 | 0.00 | 0.85 | 18.11 | 271.21 | -33.79 | 65.73 | 0.5821 | 761.0 | 628.9 | |
| 0.00 | 0.78 | 0.00 | 0.49 | 18.89 | 269.61 | -35.39 | 65.22 | 0.6057 | 591.0 | 467.7 | |
| 0.00 | 2.00 | 0.00 | 1.24 | 13.92 | 268.71 | -36.29 | 73.59 | 0.6011 | 789.0 | 592.4 | |
| 0.00 | 1.39 | 0.00 | 0.87 | 15.48 | 267.74 | -37.25 | 71.36 | 0.6179 | 748.0 | 586.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
