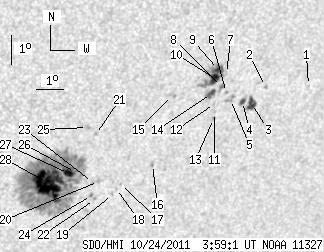

SDO HMI 2011-10-24 03:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 86.63 | 377.74 | 54.62 | 237.31 | -21.54 | 332.39 | 27.40 | 224.13 | 0.6171 | -403.7 | -216.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-24 03:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.43 | 0.00 | 0.29 | -19.30 | 340.25 | 35.26 | 233.81 | 0.6774 | 327.0 | 359.2 | |
| 0.00 | 1.39 | 0.00 | 0.92 | -19.24 | 338.59 | 33.60 | 232.62 | 0.6597 | 585.0 | 510.1 | |
| 7.22 | 9.22 | 4.74 | 6.06 | -19.78 | 338.18 | 33.19 | 231.62 | 0.6594 | 663.1 | 362.8 | |
| 2.87 | 4.26 | 1.88 | 2.79 | -19.69 | 337.82 | 32.83 | 231.44 | 0.6551 | 638.4 | 500.6 | |
| 0.00 | 5.31 | 0.00 | 3.45 | -19.61 | 337.35 | 32.36 | 231.16 | 0.6495 | 555.0 | 532.6 | |
| 0.00 | 1.22 | 0.00 | 0.79 | -19.37 | 337.15 | 32.15 | 231.30 | 0.6456 | 665.0 | 563.4 | |
| 0.00 | 0.96 | 0.00 | 0.61 | -18.74 | 337.01 | 32.02 | 232.00 | 0.6395 | 471.0 | 440.5 | |
| 0.52 | 3.65 | 0.34 | 2.35 | -19.16 | 336.91 | 31.92 | 231.37 | 0.6416 | 846.2 | 629.7 | |
| 2.00 | 28.09 | 1.28 | 17.96 | -18.59 | 336.68 | 31.69 | 231.91 | 0.6349 | 1074.0 | 726.4 | |
| 6.09 | -9.00 | 3.90 | -9.00 | -18.88 | 336.59 | 31.60 | 231.46 | 0.6361 | 1050.5 | 999999 | |
| 0.00 | 0.52 | 0.00 | 0.34 | -20.01 | 336.84 | 31.85 | 230.23 | 0.6474 | 556.0 | 479.2 | |
| 0.00 | 0.87 | 0.00 | 0.56 | -19.71 | 336.77 | 31.78 | 230.55 | 0.6444 | 561.0 | 461.0 | |
| 0.00 | 1.57 | 0.00 | 1.02 | -20.20 | 336.85 | 31.86 | 229.99 | 0.6490 | 625.0 | 492.9 | |
| 4.70 | 6.96 | 3.02 | 4.47 | -19.37 | 336.59 | 31.59 | 230.83 | 0.6398 | 674.6 | 316.3 | |
| 0.00 | 2.44 | 0.00 | 1.54 | -19.36 | 335.11 | 30.12 | 229.54 | 0.6245 | 813.0 | 586.5 | |
| 0.00 | 1.83 | 0.00 | 1.18 | -21.63 | 334.90 | 29.91 | 226.51 | 0.6412 | -784.0 | -609.9 | |
| 0.00 | 0.52 | 0.00 | 0.33 | -22.25 | 333.86 | 28.87 | 224.79 | 0.6365 | -675.0 | -530.7 | |
| 0.00 | 0.87 | 0.00 | 0.56 | -22.38 | 333.74 | 28.75 | 224.52 | 0.6366 | -508.0 | -414.9 | |
| 0.00 | 1.04 | 0.00 | 0.67 | -22.57 | 333.64 | 28.65 | 224.19 | 0.6373 | -660.0 | -533.5 | |
| 0.00 | 1.57 | 0.00 | 0.99 | -22.11 | 333.02 | 28.03 | 224.15 | 0.6274 | -857.0 | -555.1 | |
| 0.00 | 1.30 | 0.00 | 0.81 | -20.53 | 332.59 | 27.59 | 225.65 | 0.6089 | -748.0 | -634.7 | |
| 0.00 | 0.87 | 0.00 | 0.55 | -22.71 | 333.01 | 28.02 | 223.42 | 0.6327 | -461.0 | -398.7 | |
| 0.00 | 0.96 | 0.00 | 0.61 | -22.13 | 332.81 | 27.82 | 223.91 | 0.6256 | -164.0 | -232.2 | |
| 0.00 | 1.48 | 0.00 | 0.94 | -22.57 | 332.87 | 27.87 | 223.44 | 0.6301 | -673.0 | -527.3 | |
| 0.00 | 1.74 | 0.00 | 1.08 | -20.28 | 332.25 | 27.26 | 225.62 | 0.6033 | -697.0 | -606.2 | |
| 1.39 | 298.67 | 0.87 | 186.44 | -21.77 | 332.12 | 27.12 | 223.65 | 0.6156 | -701.8 | -356.3 | |
| 4.96 | -26.00 | 3.10 | -26.00 | -21.79 | 331.87 | 26.87 | 223.37 | 0.6135 | -945.6 | 999999 | |
| 56.88 | -26.00 | 35.49 | -26.00 | -22.10 | 331.21 | 26.22 | 222.32 | 0.6102 | -1084.9 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
