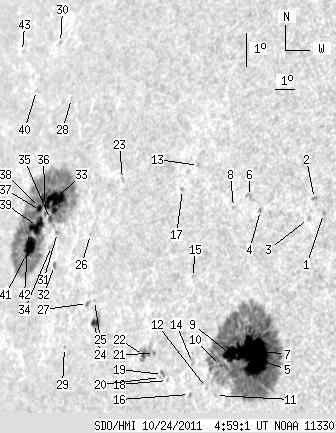

SDO HMI 2011-10-24 04:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 152.21 | 875.96 | 131.94 | 755.76 | 7.95 | 249.45 | -54.99 | 83.99 | 0.8140 | -153.3 | -99.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-24 04:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.04 | 0.00 | 0.75 | 10.77 | 257.79 | -46.65 | 80.04 | 0.7277 | -687.0 | -532.5 | |
| 0.00 | 2.09 | 0.00 | 1.52 | 11.19 | 257.30 | -47.14 | 79.50 | 0.7337 | -678.0 | -595.0 | |
| 0.00 | 1.65 | 0.00 | 1.20 | 10.58 | 257.16 | -47.28 | 80.35 | 0.7350 | -522.0 | -438.8 | |
| 0.00 | 1.91 | 0.00 | 1.45 | 10.67 | 254.94 | -49.51 | 80.35 | 0.7604 | -526.0 | -482.2 | |
| 39.49 | 470.29 | 29.59 | 356.22 | 6.24 | 255.56 | -48.88 | 86.23 | 0.7528 | -1318.0 | -326.2 | |
| 0.00 | 3.22 | 0.00 | 2.48 | 11.05 | 254.33 | -50.12 | 79.89 | 0.7673 | -549.0 | -507.4 | |
| 26.18 | -5.00 | 19.83 | -5.00 | 6.50 | 255.02 | -49.42 | 85.86 | 0.7589 | -927.6 | 999999 | |
| 0.00 | 0.87 | 0.00 | 0.68 | 10.67 | 253.65 | -50.80 | 80.41 | 0.7746 | -520.0 | -424.2 | |
| 14.35 | -5.00 | 11.03 | -5.00 | 6.30 | 254.30 | -50.14 | 86.10 | 0.7671 | -657.6 | 999999 | |
| 0.87 | -5.00 | 0.67 | -5.00 | 5.94 | 253.88 | -50.57 | 86.55 | 0.7719 | -346.8 | 999999 | |
| 0.00 | 0.78 | 0.00 | 0.61 | 5.03 | 253.75 | -50.70 | 87.73 | 0.7738 | -215.0 | -94.1 | |
| 0.00 | 1.04 | 0.00 | 0.82 | 5.24 | 253.29 | -51.15 | 87.43 | 0.7786 | -301.0 | -233.7 | |
| 0.00 | 0.96 | 0.00 | 0.78 | 11.80 | 251.63 | -52.81 | 79.08 | 0.7965 | -496.0 | -473.6 | |
| 0.00 | 2.78 | 0.00 | 2.22 | 5.94 | 252.53 | -51.92 | 86.50 | 0.7866 | -500.0 | -305.2 | |
| 0.00 | 0.87 | 0.00 | 0.70 | 8.46 | 252.12 | -52.33 | 83.29 | 0.7906 | -340.0 | -344.9 | |
| 0.00 | 1.65 | 0.00 | 1.32 | 4.98 | 252.50 | -51.95 | 87.73 | 0.7874 | 653.0 | 505.1 | |
| 0.00 | 1.57 | 0.00 | 1.29 | 11.03 | 251.02 | -53.42 | 80.07 | 0.8024 | -405.0 | -322.8 | |
| 0.00 | 0.87 | 0.00 | 0.71 | 5.32 | 251.37 | -53.08 | 87.24 | 0.7992 | -352.0 | -330.2 | |
| 0.00 | 2.35 | 0.00 | 1.94 | 5.48 | 251.10 | -53.35 | 87.02 | 0.8020 | -553.0 | -442.3 | |
| 0.00 | 0.43 | 0.00 | 0.36 | 5.38 | 251.01 | -53.44 | 87.14 | 0.8029 | -430.0 | -425.0 | |
| 0.00 | 1.04 | 0.00 | 0.87 | 6.07 | 250.61 | -53.84 | 86.26 | 0.8068 | 395.0 | 312.5 | |
| 2.09 | 12.96 | 1.76 | 10.93 | 5.97 | 250.06 | -54.39 | 86.36 | 0.8124 | -478.9 | -477.0 | |
| 0.00 | 1.74 | 0.00 | 1.55 | 11.10 | 247.80 | -56.65 | 80.09 | 0.8342 | 611.0 | 532.7 | |
| 4.61 | 8.70 | 4.17 | 7.86 | 6.73 | 247.30 | -57.15 | 85.33 | 0.8392 | 711.6 | 516.8 | |
| 0.00 | 0.96 | 0.00 | 0.87 | 7.41 | 247.17 | -57.28 | 84.51 | 0.8403 | 608.0 | 598.4 | |
| 0.00 | 0.70 | 0.00 | 0.64 | 9.34 | 246.49 | -57.96 | 82.20 | 0.8463 | 651.0 | 563.6 | |
| 0.00 | 2.44 | 0.00 | 2.23 | 7.29 | 246.80 | -57.65 | 84.64 | 0.8438 | 657.0 | 582.7 | |
| 0.00 | 0.87 | 0.00 | 0.86 | 13.28 | 244.02 | -60.43 | 77.64 | 0.8686 | -149.0 | -133.2 | |
| 0.00 | 0.70 | 0.00 | 0.66 | 5.89 | 245.74 | -58.71 | 86.25 | 0.8539 | 420.0 | 391.2 | |
| 0.00 | 0.78 | 0.00 | 0.81 | 14.88 | 242.58 | -61.87 | 75.86 | 0.8809 | -398.0 | -280.9 | |
| 0.00 | 2.35 | 0.00 | 2.29 | 9.26 | 244.56 | -59.88 | 82.29 | 0.8636 | 696.0 | 576.8 | |
| 0.52 | 2.09 | 0.51 | 2.03 | 8.27 | 244.65 | -59.80 | 83.44 | 0.8630 | 486.7 | 397.0 | |
| 28.88 | 340.95 | 28.60 | 343.74 | 10.18 | 244.04 | -60.41 | 81.21 | 0.8680 | 772.9 | 130.7 | |
| 0.00 | 3.83 | 0.00 | 3.76 | 8.82 | 244.32 | -60.13 | 82.79 | 0.8657 | 373.0 | 302.6 | |
| 2.87 | -33.00 | 2.85 | -33.00 | 9.61 | 244.03 | -60.41 | 81.87 | 0.8681 | 667.0 | 999999 | |
| 1.13 | -33.00 | 1.13 | -33.00 | 9.73 | 243.68 | -60.76 | 81.73 | 0.8711 | 483.2 | 999999 | |
| 0.70 | -33.00 | 0.70 | -33.00 | 9.83 | 243.34 | -61.11 | 81.62 | 0.8740 | -149.0 | 999999 | |
| 1.30 | -33.00 | 1.32 | -33.00 | 9.91 | 243.25 | -61.20 | 81.52 | 0.8747 | 218.1 | 999999 | |
| 13.74 | -33.00 | 13.93 | -33.00 | 9.34 | 243.30 | -61.15 | 82.17 | 0.8744 | 550.8 | 999999 | |
| 0.00 | 0.87 | 0.00 | 0.93 | 13.34 | 241.72 | -62.73 | 77.63 | 0.8873 | 475.0 | 370.9 | |
| 13.31 | -33.00 | 13.61 | -33.00 | 8.72 | 243.04 | -61.41 | 82.88 | 0.8766 | 579.1 | 999999 | |
| 2.17 | -33.00 | 2.24 | -33.00 | 9.12 | 242.79 | -61.65 | 82.42 | 0.8786 | -290.4 | 999999 | |
| 0.00 | 0.61 | 0.00 | 0.68 | 14.42 | 240.21 | -64.24 | 76.46 | 0.8990 | 438.0 | 423.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
