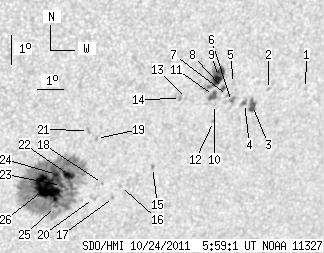

SDO HMI 2011-10-24 05:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 77.23 | 347.84 | 49.36 | 220.81 | -21.49 | 332.40 | 28.50 | 225.29 | 0.6272 | -260.5 | -286.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-24 05:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.48 | 0.00 | 1.01 | -19.31 | 340.18 | 36.28 | 234.55 | 0.6879 | 513.0 | 437.4 | |
| 0.00 | 1.13 | 0.00 | 0.75 | -19.26 | 338.72 | 34.82 | 233.55 | 0.6725 | 582.0 | 427.9 | |
| 6.26 | 7.83 | 4.17 | 5.21 | -19.76 | 338.23 | 34.33 | 232.55 | 0.6708 | 660.8 | 515.4 | |
| 0.61 | 2.52 | 0.40 | 1.67 | -19.67 | 337.90 | 34.00 | 232.41 | 0.6669 | 761.0 | 522.7 | |
| 0.00 | 1.22 | 0.00 | 0.80 | -18.99 | 337.32 | 33.42 | 232.82 | 0.6560 | 670.0 | 484.7 | |
| 1.57 | 3.13 | 1.03 | 2.06 | -19.58 | 337.38 | 33.48 | 232.12 | 0.6609 | 512.4 | 605.6 | |
| 0.00 | 1.48 | 0.00 | 0.97 | -19.37 | 337.18 | 33.28 | 232.22 | 0.6573 | 578.0 | 524.5 | |
| 1.65 | 2.70 | 1.08 | 1.76 | -19.13 | 336.98 | 33.08 | 232.37 | 0.6534 | 738.2 | 516.6 | |
| 14.35 | 31.49 | 9.30 | 20.38 | -18.73 | 336.70 | 32.80 | 232.66 | 0.6475 | 965.1 | 644.5 | |
| 0.00 | 0.96 | 0.00 | 0.63 | -19.64 | 336.75 | 32.85 | 231.53 | 0.6549 | 398.0 | 441.2 | |
| 4.78 | 5.91 | 3.12 | 3.85 | -19.35 | 336.65 | 32.75 | 231.83 | 0.6515 | 695.1 | 608.3 | |
| 0.00 | 1.39 | 0.00 | 0.91 | -20.21 | 336.85 | 32.95 | 230.90 | 0.6600 | 584.0 | 426.5 | |
| 0.00 | 1.13 | 0.00 | 0.73 | -19.39 | 335.65 | 31.75 | 230.94 | 0.6415 | 694.0 | 531.2 | |
| 0.00 | 1.48 | 0.00 | 0.95 | -19.38 | 335.42 | 31.52 | 230.76 | 0.6391 | 807.0 | 730.0 | |
| 0.00 | 2.00 | 0.00 | 1.30 | -21.63 | 334.89 | 30.99 | 227.49 | 0.6516 | -660.0 | -511.5 | |
| 0.00 | 1.30 | 0.00 | 0.84 | -22.21 | 333.83 | 29.93 | 225.84 | 0.6462 | -502.0 | -368.1 | |
| 0.00 | 1.48 | 0.00 | 0.96 | -22.57 | 333.66 | 29.76 | 225.25 | 0.6477 | -544.0 | -408.1 | |
| 0.00 | 0.87 | 0.00 | 0.56 | -22.08 | 333.13 | 29.23 | 225.35 | 0.6384 | -658.0 | -562.8 | |
| 0.00 | 1.74 | 0.00 | 1.10 | -20.56 | 332.58 | 28.68 | 226.70 | 0.6198 | -666.0 | -524.2 | |
| 0.00 | 2.44 | 0.00 | 1.57 | -22.57 | 332.91 | 29.01 | 224.56 | 0.6406 | -505.0 | -426.8 | |
| 0.00 | 2.44 | 0.00 | 1.52 | -20.28 | 332.24 | 28.34 | 226.71 | 0.6139 | -728.0 | -617.1 | |
| 6.09 | 271.72 | 3.85 | 171.28 | -21.75 | 331.85 | 27.95 | 224.51 | 0.6233 | -989.3 | -414.7 | |
| 1.39 | -22.00 | 0.88 | -22.00 | -22.08 | 331.63 | 27.73 | 223.90 | 0.6241 | -698.5 | 999999 | |
| 2.17 | -22.00 | 1.37 | -22.00 | -21.70 | 331.37 | 27.47 | 224.10 | 0.6182 | -1027.1 | 999999 | |
| 0.87 | -22.00 | 0.55 | -22.00 | -22.78 | 331.56 | 27.66 | 223.00 | 0.6299 | -429.6 | 999999 | |
| 37.49 | -22.00 | 23.61 | -22.00 | -22.12 | 331.09 | 27.19 | 223.31 | 0.6195 | -1178.1 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
