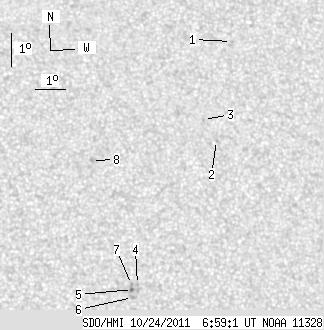

SDO HMI 2011-10-24 06:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 10.00 | 0.00 | 5.33 | 14.88 | 322.65 | 19.30 | 298.13 | 0.3661 | 824.4 | 661.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-24 06:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.04 | 0.00 | 0.58 | 20.09 | 325.80 | 22.45 | 306.39 | 0.4474 | 626.0 | 540.2 | |
| 0.00 | 1.04 | 0.00 | 0.57 | 17.08 | 324.88 | 21.53 | 301.24 | 0.4120 | 652.0 | 406.2 | |
| 0.00 | 0.96 | 0.00 | 0.52 | 17.73 | 324.53 | 21.17 | 303.03 | 0.4121 | 918.0 | 784.0 | |
| 0.00 | 1.13 | 0.00 | 0.60 | 12.81 | 321.87 | 18.51 | 293.99 | 0.3404 | 712.0 | 614.9 | |
| 0.00 | 0.87 | 0.00 | 0.46 | 12.66 | 321.69 | 18.34 | 293.76 | 0.3370 | 1090.0 | 1002.9 | |
| 0.00 | 2.61 | 0.00 | 1.37 | 12.42 | 321.68 | 18.32 | 293.11 | 0.3353 | 880.0 | 636.8 | |
| 0.00 | 1.13 | 0.00 | 0.59 | 12.81 | 321.67 | 18.32 | 294.20 | 0.3375 | 924.0 | 746.2 | |
| 0.00 | 1.22 | 0.00 | 0.64 | 16.59 | 320.70 | 17.34 | 305.30 | 0.3516 | 793.0 | 670.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
