SDO HMI 2011-10-24 08:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 56.60 | 320.46 | 31.12 | 176.28 | 15.70 | 278.66 | -23.60 | 63.38 | 0.4316 | -82.0 | -76.9 | |
|
previous
or next observation for the same group /

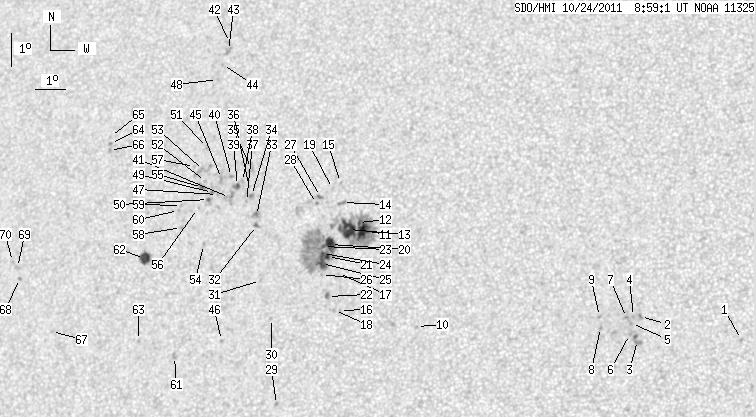

back to the solar disc SDO HMI 2011-10-24 08:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.48 | 0.00 | 0.75 | 12.86 | 292.83 | -9.43 | 49.66 | 0.2106 | -937.0 | -658.6 | |
| 0.00 | 2.09 | 0.00 | 1.07 | 13.50 | 289.65 | -12.61 | 55.19 | 0.2598 | -944.0 | -759.2 | |
| 0.00 | 5.13 | 0.00 | 2.63 | 12.78 | 289.59 | -12.67 | 57.71 | 0.2542 | -621.0 | -878.5 | |
| 0.00 | 1.22 | 0.00 | 0.62 | 13.50 | 289.43 | -12.83 | 55.64 | 0.2628 | -953.0 | -806.7 | |
| 0.00 | 1.22 | 0.00 | 0.62 | 13.29 | 289.37 | -12.88 | 56.43 | 0.2616 | -1037.0 | -863.6 | |
| 0.00 | 1.04 | 0.00 | 0.54 | 12.96 | 289.33 | -12.93 | 57.62 | 0.2594 | -766.0 | -711.3 | |
| 0.00 | 1.57 | 0.00 | 0.80 | 13.47 | 289.21 | -13.05 | 56.18 | 0.2655 | -984.0 | -798.7 | |
| 0.00 | 1.22 | 0.00 | 0.63 | 13.15 | 288.41 | -13.85 | 58.67 | 0.2742 | -967.0 | -727.9 | |
| 0.00 | 1.39 | 0.00 | 0.72 | 13.48 | 288.36 | -13.90 | 57.71 | 0.2777 | -794.0 | -594.8 | |
| 0.00 | 0.78 | 0.00 | 0.42 | 13.03 | 282.53 | -19.73 | 66.58 | 0.3600 | -771.0 | -631.2 | |
| 11.13 | 91.39 | 6.03 | 49.59 | 15.87 | 280.50 | -21.76 | 61.64 | 0.4069 | -1279.2 | -549.3 | |
| 1.04 | -11.00 | 0.57 | -11.00 | 16.11 | 280.31 | -21.95 | 61.30 | 0.4112 | -771.9 | 999999 | |
| 16.70 | -11.00 | 9.08 | -11.00 | 15.89 | 280.00 | -22.26 | 62.09 | 0.4141 | -966.8 | 999999 | |
| 0.00 | 3.22 | 0.00 | 1.76 | 16.70 | 279.70 | -22.56 | 60.61 | 0.4236 | -898.0 | -687.9 | |
| 0.00 | 0.70 | 0.00 | 0.38 | 17.31 | 279.55 | -22.71 | 59.46 | 0.4297 | -604.0 | -360.2 | |
| 0.00 | 1.13 | 0.00 | 0.61 | 13.43 | 279.96 | -22.30 | 67.77 | 0.4004 | -802.0 | -602.2 | |
| 0.00 | 0.70 | 0.00 | 0.38 | 14.55 | 279.81 | -22.44 | 65.29 | 0.4086 | -844.0 | -626.6 | |
| 0.00 | 1.39 | 0.00 | 0.75 | 13.43 | 279.80 | -22.46 | 67.91 | 0.4028 | -484.0 | -381.8 | |
| 0.00 | 0.70 | 0.00 | 0.38 | 17.11 | 279.31 | -22.95 | 60.10 | 0.4317 | -600.0 | -545.8 | |
| 9.04 | 100.96 | 4.93 | 55.17 | 15.41 | 279.45 | -22.81 | 63.64 | 0.4189 | -1066.0 | -230.1 | |
| 1.91 | -20.00 | 1.04 | -20.00 | 15.05 | 279.39 | -22.87 | 64.51 | 0.4175 | -1099.0 | 999999 | |
| 0.00 | 2.52 | 0.00 | 1.37 | 13.84 | 279.52 | -22.74 | 67.16 | 0.4090 | -1095.0 | -909.1 | |
| 1.48 | -20.00 | 0.81 | -20.00 | 15.34 | 279.22 | -23.04 | 63.99 | 0.4217 | -671.9 | 999999 | |
| 0.87 | -20.00 | 0.47 | -20.00 | 15.13 | 279.21 | -23.05 | 64.47 | 0.4206 | -809.6 | 999999 | |
| 1.65 | -20.00 | 0.90 | -20.00 | 14.83 | 279.21 | -23.04 | 65.15 | 0.4188 | -940.4 | 999999 | |
| 0.00 | 0.78 | 0.00 | 0.43 | 14.50 | 279.25 | -23.01 | 65.87 | 0.4164 | -841.0 | -675.8 | |
| 0.00 | 2.61 | 0.00 | 1.43 | 16.86 | 278.93 | -23.33 | 60.99 | 0.4351 | -804.0 | -681.8 | |
| 0.00 | 1.39 | 0.00 | 0.76 | 16.64 | 278.83 | -23.43 | 61.54 | 0.4352 | -765.0 | -527.8 | |
| 0.00 | 1.91 | 0.00 | 1.04 | 10.54 | 278.13 | -24.12 | 75.77 | 0.4163 | 814.0 | 596.0 | |
| 0.00 | 0.96 | 0.00 | 0.52 | 13.11 | 277.72 | -24.54 | 70.07 | 0.4320 | -386.0 | -432.0 | |
| 0.00 | 1.13 | 0.00 | 0.62 | 14.24 | 277.22 | -25.04 | 67.92 | 0.4445 | 813.0 | 658.2 | |
| 0.00 | 2.09 | 0.00 | 1.16 | 15.90 | 276.88 | -25.38 | 64.68 | 0.4580 | 931.0 | 737.7 | |
| 0.00 | 4.26 | 0.00 | 2.38 | 16.20 | 276.83 | -25.43 | 64.09 | 0.4603 | 1073.0 | 693.2 | |
| 0.00 | 2.17 | 0.00 | 1.22 | 16.80 | 276.58 | -25.68 | 63.08 | 0.4673 | 1040.0 | 916.1 | |
| 0.00 | 4.09 | 0.00 | 2.30 | 17.62 | 276.45 | -25.81 | 61.56 | 0.4738 | 764.0 | 663.3 | |
| 0.00 | 0.96 | 0.00 | 0.54 | 17.04 | 276.47 | -25.79 | 62.68 | 0.4701 | 772.0 | 597.8 | |
| 0.00 | 0.96 | 0.00 | 0.54 | 16.61 | 276.43 | -25.83 | 63.57 | 0.4682 | 743.0 | 599.1 | |
| 0.00 | 1.65 | 0.00 | 0.93 | 17.22 | 276.20 | -26.06 | 62.55 | 0.4748 | 854.0 | 686.5 | |
| 1.74 | 3.74 | 0.98 | 2.10 | 17.09 | 276.05 | -26.21 | 62.92 | 0.4761 | 873.0 | 854.5 | |
| 0.00 | 1.74 | 0.00 | 0.98 | 17.35 | 275.80 | -26.46 | 62.59 | 0.4811 | 895.0 | 686.5 | |
| 0.00 | 7.91 | 0.00 | 4.45 | 16.71 | 275.83 | -26.43 | 63.82 | 0.4771 | 813.0 | 710.8 | |
| 0.00 | 1.04 | 0.00 | 0.60 | 21.46 | 274.99 | -27.27 | 55.75 | 0.5179 | 745.0 | 646.7 | |
| 0.00 | 4.35 | 0.00 | 2.51 | 21.21 | 275.00 | -27.25 | 56.16 | 0.5160 | 810.0 | 757.4 | |
| 0.00 | 0.78 | 0.00 | 0.45 | 20.77 | 274.88 | -27.38 | 57.03 | 0.5146 | 773.0 | 604.9 | |
| 0.00 | 4.87 | 0.00 | 2.75 | 17.28 | 275.46 | -26.80 | 62.98 | 0.4853 | 866.0 | 757.4 | |
| 0.00 | 1.30 | 0.00 | 0.72 | 12.39 | 276.11 | -26.15 | 72.56 | 0.4531 | 809.0 | 651.5 | |
| 0.00 | 1.13 | 0.00 | 0.64 | 16.79 | 275.40 | -26.86 | 63.98 | 0.4834 | 798.0 | 643.8 | |
| 0.00 | 1.04 | 0.00 | 0.60 | 20.30 | 274.79 | -27.47 | 57.93 | 0.5126 | 777.0 | 642.7 | |
| 0.00 | 1.22 | 0.00 | 0.69 | 16.84 | 275.21 | -27.05 | 64.00 | 0.4862 | 864.0 | 773.6 | |
| 1.13 | 2.87 | 0.64 | 1.62 | 16.62 | 275.11 | -27.15 | 64.50 | 0.4865 | 855.5 | 636.9 | |
| 0.00 | 1.04 | 0.00 | 0.60 | 18.20 | 274.81 | -27.45 | 61.71 | 0.4993 | 665.0 | 559.9 | |
| 0.00 | 1.13 | 0.00 | 0.64 | 17.17 | 274.92 | -27.34 | 63.59 | 0.4920 | 621.0 | 508.8 | |
| 0.00 | 7.30 | 0.00 | 4.16 | 17.50 | 274.79 | -27.47 | 63.04 | 0.4955 | 699.0 | 613.5 | |
| 0.00 | 1.48 | 0.00 | 0.83 | 15.25 | 275.13 | -27.13 | 67.17 | 0.4792 | 850.0 | 615.8 | |
| 0.78 | 3.13 | 0.44 | 1.78 | 16.98 | 274.84 | -27.42 | 63.99 | 0.4920 | 864.1 | 682.3 | |
| 0.00 | 0.61 | 0.00 | 0.35 | 16.34 | 274.76 | -27.49 | 65.28 | 0.4897 | 601.0 | 664.4 | |
| 0.00 | 1.39 | 0.00 | 0.80 | 17.61 | 274.46 | -27.80 | 63.08 | 0.5007 | 513.0 | 345.9 | |
| 0.00 | 1.57 | 0.00 | 0.89 | 15.74 | 274.29 | -27.97 | 66.74 | 0.4933 | 777.0 | 598.7 | |
| 0.00 | 1.13 | 0.00 | 0.64 | 16.40 | 274.19 | -28.07 | 65.52 | 0.4980 | 723.0 | 565.8 | |
| 0.00 | 0.87 | 0.00 | 0.50 | 16.25 | 274.11 | -28.15 | 65.87 | 0.4983 | 561.0 | 487.8 | |
| 0.00 | 2.70 | 0.00 | 1.51 | 11.85 | 274.56 | -27.70 | 74.42 | 0.4743 | 740.0 | 628.1 | |
| 9.13 | 10.09 | 5.23 | 5.78 | 14.75 | 273.14 | -29.12 | 69.29 | 0.5052 | 842.2 | 688.4 | |
| 0.00 | 1.39 | 0.00 | 0.79 | 12.27 | 273.26 | -29.00 | 74.07 | 0.4947 | 641.0 | 509.9 | |
| 0.00 | 1.57 | 0.00 | 0.92 | 18.18 | 271.33 | -30.93 | 64.04 | 0.5453 | 768.0 | 641.9 | |
| 0.00 | 1.04 | 0.00 | 0.62 | 18.39 | 271.28 | -30.98 | 63.69 | 0.5470 | 597.0 | 458.2 | |
| 0.00 | 1.74 | 0.00 | 1.03 | 17.97 | 271.33 | -30.93 | 64.41 | 0.5442 | 728.0 | 615.2 | |
| 0.00 | 1.13 | 0.00 | 0.66 | 12.41 | 270.15 | -32.11 | 74.91 | 0.5397 | 647.0 | 511.1 | |
| 0.00 | 1.22 | 0.00 | 0.73 | 13.94 | 268.75 | -33.51 | 72.64 | 0.5636 | 830.0 | 720.0 | |
| 0.00 | 2.00 | 0.00 | 1.20 | 14.27 | 268.62 | -33.64 | 72.11 | 0.5663 | 660.0 | 527.6 | |
| 0.00 | 1.13 | 0.00 | 0.68 | 14.44 | 268.41 | -33.85 | 71.89 | 0.5697 | 707.0 | 519.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
