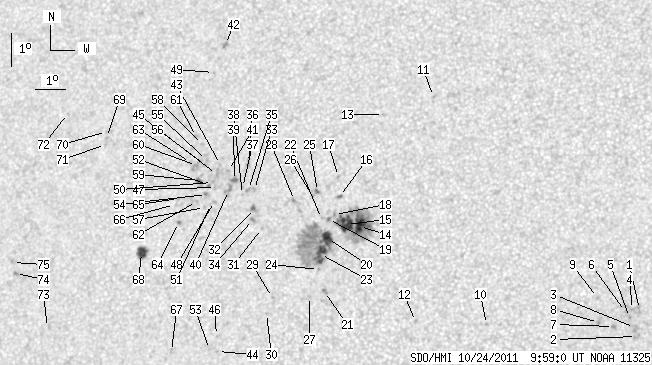

SDO HMI 2011-10-24 09:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 56.94 | 330.33 | 31.20 | 180.76 | 15.67 | 278.79 | -22.92 | 62.85 | 0.4218 | -52.1 | -86.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-24 09:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.61 | 0.00 | 1.33 | 13.54 | 289.66 | -12.05 | 53.87 | 0.2524 | -705.0 | -657.3 | |
| 0.00 | 3.48 | 0.00 | 1.78 | 12.72 | 289.61 | -12.10 | 56.75 | 0.2457 | -676.0 | -685.8 | |
| 0.00 | 5.56 | 0.00 | 2.85 | 12.99 | 289.53 | -12.18 | 55.98 | 0.2491 | -816.0 | -776.0 | |
| 0.00 | 1.13 | 0.00 | 0.58 | 13.53 | 289.44 | -12.27 | 54.36 | 0.2554 | -908.0 | -767.5 | |
| 0.00 | 1.22 | 0.00 | 0.62 | 13.29 | 289.36 | -12.35 | 55.33 | 0.2543 | -1073.0 | -836.6 | |
| 0.00 | 1.04 | 0.00 | 0.53 | 13.47 | 289.23 | -12.49 | 55.02 | 0.2578 | -980.0 | -833.1 | |
| 0.00 | 2.09 | 0.00 | 1.07 | 13.01 | 288.87 | -12.84 | 57.24 | 0.2586 | -962.0 | -838.8 | |
| 0.00 | 1.65 | 0.00 | 0.85 | 13.12 | 288.40 | -13.32 | 57.78 | 0.2663 | -938.0 | -784.2 | |
| 0.00 | 0.87 | 0.00 | 0.45 | 13.88 | 288.32 | -13.39 | 55.52 | 0.2740 | -651.0 | -456.8 | |
| 0.00 | 0.96 | 0.00 | 0.50 | 12.98 | 284.85 | -16.86 | 63.59 | 0.3169 | -858.0 | -685.5 | |
| 0.00 | 1.04 | 0.00 | 0.56 | 19.86 | 282.45 | -19.26 | 50.14 | 0.4059 | -803.0 | -648.8 | |
| 0.00 | 1.30 | 0.00 | 0.69 | 13.01 | 282.57 | -19.15 | 66.05 | 0.3512 | -808.0 | -643.6 | |
| 0.00 | 1.04 | 0.00 | 0.57 | 19.26 | 280.85 | -20.87 | 53.41 | 0.4206 | -712.0 | -491.1 | |
| 8.17 | 86.86 | 4.41 | 46.93 | 15.82 | 280.46 | -21.25 | 61.24 | 0.3995 | -1277.6 | -577.5 | |
| 14.09 | -14.00 | 7.63 | -14.00 | 15.87 | 280.02 | -21.69 | 61.58 | 0.4060 | -987.7 | 999999 | |
| 0.00 | 2.17 | 0.00 | 1.18 | 16.71 | 279.69 | -22.02 | 60.04 | 0.4163 | -866.0 | -623.8 | |
| 0.00 | 1.13 | 0.00 | 0.62 | 17.32 | 279.58 | -22.13 | 58.85 | 0.4221 | -432.0 | -284.5 | |
| 0.00 | 1.57 | 0.00 | 0.85 | 16.16 | 279.59 | -22.12 | 61.35 | 0.4140 | -679.0 | -581.2 | |
| 0.00 | 1.83 | 0.00 | 0.99 | 16.00 | 279.41 | -22.31 | 61.88 | 0.4155 | -809.0 | -669.4 | |
| 9.56 | 108.34 | 5.19 | 58.96 | 15.42 | 279.44 | -22.27 | 63.13 | 0.4114 | -1036.4 | -179.6 | |
| 0.00 | 2.35 | 0.00 | 1.27 | 13.82 | 279.51 | -22.20 | 66.76 | 0.4010 | -950.0 | -800.4 | |
| 0.00 | 0.52 | 0.00 | 0.28 | 16.02 | 279.17 | -22.54 | 62.05 | 0.4190 | -576.0 | -445.2 | |
| 11.56 | -20.00 | 6.28 | -20.00 | 14.93 | 279.26 | -22.45 | 64.40 | 0.4109 | -935.6 | 999999 | |
| 0.00 | 1.39 | 0.00 | 0.75 | 14.48 | 279.24 | -22.47 | 65.46 | 0.4086 | -825.0 | -606.3 | |
| 0.43 | 1.74 | 0.24 | 0.95 | 16.84 | 278.93 | -22.78 | 60.51 | 0.4276 | -749.0 | -568.2 | |
| 0.00 | 1.39 | 0.00 | 0.76 | 16.71 | 278.78 | -22.93 | 60.92 | 0.4288 | -591.0 | -308.0 | |
| 0.00 | 0.87 | 0.00 | 0.47 | 13.65 | 279.03 | -22.68 | 67.54 | 0.4073 | -811.0 | -680.1 | |
| 0.00 | 2.26 | 0.00 | 1.24 | 16.54 | 278.19 | -23.52 | 61.83 | 0.4358 | 520.0 | 580.4 | |
| 0.00 | 0.96 | 0.00 | 0.52 | 13.58 | 277.80 | -23.91 | 68.60 | 0.4250 | -682.0 | -553.3 | |
| 0.00 | 1.13 | 0.00 | 0.62 | 13.09 | 277.65 | -24.06 | 69.80 | 0.4250 | -621.0 | -503.8 | |
| 0.00 | 1.13 | 0.00 | 0.62 | 15.65 | 277.18 | -24.53 | 64.54 | 0.4446 | 822.0 | 642.3 | |
| 0.00 | 3.83 | 0.00 | 2.12 | 16.25 | 276.87 | -24.85 | 63.54 | 0.4525 | 1021.0 | 810.8 | |
| 0.00 | 1.74 | 0.00 | 0.97 | 16.82 | 276.79 | -24.93 | 62.43 | 0.4570 | 835.0 | 674.3 | |
| 0.00 | 2.09 | 0.00 | 1.16 | 15.91 | 276.84 | -24.87 | 64.26 | 0.4509 | 936.0 | 751.5 | |
| 0.00 | 1.83 | 0.00 | 1.02 | 16.82 | 276.58 | -25.13 | 62.61 | 0.4598 | 1087.0 | 875.3 | |
| 0.00 | 3.22 | 0.00 | 1.80 | 17.64 | 276.46 | -25.25 | 61.07 | 0.4664 | 956.0 | 738.2 | |
| 0.00 | 1.04 | 0.00 | 0.58 | 16.87 | 276.37 | -25.35 | 62.67 | 0.4630 | 881.0 | 685.7 | |
| 0.00 | 0.87 | 0.00 | 0.48 | 16.66 | 276.40 | -25.32 | 63.08 | 0.4614 | 852.0 | 673.2 | |
| 2.61 | 3.48 | 1.46 | 1.95 | 17.07 | 276.06 | -25.65 | 62.51 | 0.4684 | 914.9 | 828.8 | |
| 0.00 | 5.48 | 0.00 | 3.07 | 16.76 | 275.90 | -25.81 | 63.25 | 0.4689 | 905.0 | 736.4 | |
| 0.00 | 1.48 | 0.00 | 0.83 | 17.37 | 275.81 | -25.91 | 62.12 | 0.4736 | 816.0 | 705.3 | |
| 0.00 | 3.13 | 0.00 | 1.80 | 21.23 | 275.03 | -26.68 | 55.64 | 0.5091 | 898.0 | 813.0 | |
| 0.00 | 0.96 | 0.00 | 0.54 | 17.54 | 275.50 | -26.21 | 62.03 | 0.4788 | 690.0 | 568.1 | |
| 0.00 | 0.96 | 0.00 | 0.53 | 11.89 | 276.12 | -25.59 | 73.36 | 0.4430 | 748.0 | 593.2 | |
| 0.00 | 3.74 | 0.00 | 2.11 | 17.23 | 275.41 | -26.30 | 62.70 | 0.4782 | 846.0 | 752.1 | |
| 0.00 | 0.70 | 0.00 | 0.38 | 12.37 | 276.04 | -25.67 | 72.35 | 0.4460 | 621.0 | 585.4 | |
| 0.00 | 1.83 | 0.00 | 1.03 | 16.83 | 275.44 | -26.28 | 63.45 | 0.4756 | 737.0 | 543.6 | |
| 0.00 | 1.39 | 0.00 | 0.78 | 16.41 | 275.46 | -26.25 | 64.27 | 0.4729 | 852.0 | 701.3 | |
| 0.00 | 1.04 | 0.00 | 0.60 | 20.35 | 274.77 | -26.94 | 57.41 | 0.5062 | 750.0 | 599.2 | |
| 0.00 | 1.04 | 0.00 | 0.59 | 16.98 | 275.31 | -26.40 | 63.26 | 0.4782 | 745.0 | 730.9 | |
| 0.00 | 0.87 | 0.00 | 0.49 | 16.31 | 275.34 | -26.37 | 64.55 | 0.4741 | 681.0 | 526.6 | |
| 0.00 | 1.39 | 0.00 | 0.78 | 16.89 | 275.22 | -26.49 | 63.51 | 0.4789 | 793.0 | 686.8 | |
| 0.00 | 0.78 | 0.00 | 0.43 | 11.94 | 275.85 | -25.87 | 73.38 | 0.4473 | 742.0 | 654.4 | |
| 0.00 | 2.43 | 0.00 | 1.37 | 16.61 | 275.16 | -26.56 | 64.10 | 0.4782 | 925.0 | 778.1 | |
| 0.00 | 0.96 | 0.00 | 0.54 | 17.64 | 275.00 | -26.72 | 62.21 | 0.4863 | 774.0 | 653.7 | |
| 0.00 | 1.22 | 0.00 | 0.69 | 17.49 | 274.99 | -26.73 | 62.51 | 0.4855 | 819.0 | 667.8 | |
| 0.00 | 1.13 | 0.00 | 0.64 | 16.21 | 275.15 | -26.57 | 64.89 | 0.4762 | 774.0 | 584.9 | |
| 0.00 | 1.39 | 0.00 | 0.79 | 18.13 | 274.78 | -26.94 | 61.46 | 0.4920 | 714.0 | 545.9 | |
| 1.91 | 6.09 | 1.08 | 3.44 | 17.02 | 274.81 | -26.90 | 63.54 | 0.4852 | 762.0 | 486.0 | |
| 0.00 | 7.04 | 0.00 | 4.00 | 17.48 | 274.67 | -27.04 | 62.77 | 0.4897 | 777.0 | 571.9 | |
| 0.00 | 1.91 | 0.00 | 1.09 | 18.36 | 274.52 | -27.19 | 61.21 | 0.4968 | 583.0 | 504.0 | |
| 0.00 | 0.78 | 0.00 | 0.44 | 16.38 | 274.84 | -26.87 | 64.76 | 0.4814 | 826.0 | 679.1 | |
| 0.00 | 1.39 | 0.00 | 0.79 | 17.56 | 274.45 | -27.27 | 62.77 | 0.4932 | 504.0 | 335.6 | |
| 0.00 | 1.13 | 0.00 | 0.64 | 15.72 | 274.31 | -27.40 | 66.41 | 0.4854 | 813.0 | 703.7 | |
| 0.00 | 1.22 | 0.00 | 0.69 | 16.45 | 274.20 | -27.51 | 65.06 | 0.4906 | 641.0 | 495.5 | |
| 0.00 | 0.52 | 0.00 | 0.30 | 16.26 | 274.09 | -27.62 | 65.50 | 0.4911 | 362.0 | 431.7 | |
| 0.00 | 1.74 | 0.00 | 0.97 | 11.83 | 274.56 | -27.15 | 74.21 | 0.4661 | 829.0 | 677.2 | |
| 8.61 | 9.91 | 4.91 | 5.65 | 14.76 | 273.15 | -28.56 | 68.95 | 0.4973 | 828.3 | 803.8 | |
| 0.00 | 1.39 | 0.00 | 0.82 | 18.20 | 271.32 | -30.39 | 63.67 | 0.5383 | 763.0 | 650.9 | |
| 0.00 | 0.78 | 0.00 | 0.46 | 18.38 | 271.29 | -30.42 | 63.38 | 0.5397 | 582.0 | 494.6 | |
| 0.00 | 1.22 | 0.00 | 0.71 | 17.98 | 271.33 | -30.38 | 64.05 | 0.5371 | 620.0 | 478.4 | |
| 0.00 | 0.43 | 0.00 | 0.26 | 18.87 | 269.75 | -31.96 | 63.45 | 0.5621 | 688.0 | 595.2 | |
| 0.00 | 0.87 | 0.00 | 0.51 | 12.37 | 270.15 | -31.56 | 74.81 | 0.5319 | 445.0 | 519.7 | |
| 0.00 | 2.17 | 0.00 | 1.29 | 13.93 | 268.76 | -32.95 | 72.45 | 0.5559 | 853.0 | 705.4 | |
| 0.00 | 2.09 | 0.00 | 1.24 | 14.26 | 268.60 | -33.12 | 71.94 | 0.5591 | 662.0 | 531.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
