SDO HMI 2011-10-24 09:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 67.93 | 340.15 | 44.29 | 220.61 | -21.52 | 332.28 | 30.57 | 227.19 | 0.6472 | -320.4 | -212.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-24 09:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

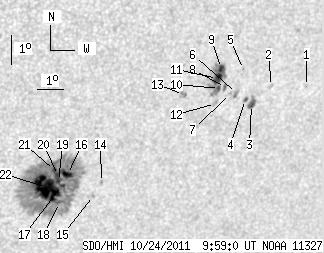

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.96 | 0.00 | 0.67 | -19.29 | 340.33 | 38.62 | 236.16 | 0.7116 | 405.0 | 342.0 | |
| 0.00 | 1.91 | 0.00 | 1.32 | -19.21 | 338.91 | 37.19 | 235.32 | 0.6965 | 484.0 | 362.7 | |
| 4.96 | 7.13 | 3.40 | 4.88 | -19.76 | 338.26 | 36.55 | 234.19 | 0.6934 | 553.5 | 587.4 | |
| 1.04 | 2.17 | 0.71 | 1.48 | -19.58 | 337.98 | 36.26 | 234.21 | 0.6893 | 665.2 | 621.2 | |
| 0.00 | 0.87 | 0.00 | 0.59 | -18.59 | 337.64 | 35.93 | 235.23 | 0.6794 | 587.0 | 412.4 | |
| 0.00 | 4.00 | 0.00 | 2.71 | -19.36 | 337.57 | 35.85 | 234.20 | 0.6837 | 793.0 | 598.7 | |
| 0.00 | 1.22 | 0.00 | 0.82 | -19.35 | 337.33 | 35.62 | 234.04 | 0.6811 | 661.0 | 515.1 | |
| 1.65 | 2.78 | 1.11 | 1.87 | -19.14 | 337.08 | 35.37 | 234.13 | 0.6772 | 597.8 | 509.6 | |
| 4.70 | 33.04 | 3.12 | 22.01 | -18.51 | 336.77 | 35.06 | 234.71 | 0.6697 | 840.8 | 689.6 | |
| 1.83 | -9.00 | 1.22 | -9.00 | -19.16 | 336.85 | 35.14 | 233.93 | 0.6749 | 735.8 | 999999 | |
| 7.13 | -9.00 | 4.75 | -9.00 | -18.83 | 336.70 | 34.98 | 234.24 | 0.6710 | 1057.4 | 999999 | |
| 0.00 | 2.61 | 0.00 | 1.75 | -19.65 | 336.82 | 35.11 | 233.29 | 0.6779 | 556.0 | 425.2 | |
| 0.00 | 4.09 | 0.00 | 2.69 | -19.28 | 335.50 | 33.79 | 232.76 | 0.6617 | 850.0 | 708.4 | |
| 0.00 | 1.48 | 0.00 | 0.97 | -22.06 | 333.07 | 31.35 | 227.30 | 0.6584 | -604.0 | -444.1 | |
| 0.00 | 1.39 | 0.00 | 0.91 | -22.49 | 332.87 | 31.16 | 226.62 | 0.6600 | -628.0 | -504.6 | |
| 4.96 | 276.50 | 3.20 | 177.94 | -21.73 | 331.71 | 30.00 | 226.50 | 0.6426 | -935.1 | -357.6 | |
| 1.57 | -16.00 | 1.01 | -16.00 | -22.09 | 331.57 | 29.86 | 225.94 | 0.6443 | -645.8 | 999999 | |
| 0.70 | -16.00 | 0.45 | -16.00 | -22.66 | 331.64 | 29.92 | 225.31 | 0.6498 | -415.4 | 999999 | |
| 1.13 | -16.00 | 0.73 | -16.00 | -21.95 | 331.43 | 29.72 | 225.98 | 0.6417 | -843.1 | 999999 | |
| 0.96 | -16.00 | 0.61 | -16.00 | -21.75 | 331.38 | 29.67 | 226.18 | 0.6395 | -928.5 | 999999 | |
| 1.22 | -16.00 | 0.78 | -16.00 | -21.57 | 331.20 | 29.48 | 226.22 | 0.6362 | -1003.0 | 999999 | |
| 36.08 | -16.00 | 23.20 | -16.00 | -22.13 | 331.03 | 29.32 | 225.39 | 0.6394 | -1114.3 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
