SDO HMI 2011-10-24 10:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 59.63 | 347.67 | 32.46 | 190.11 | 15.82 | 278.44 | -22.72 | 62.37 | 0.4201 | -11.5 | -27.3 | |
|
previous
or next observation for the same group /

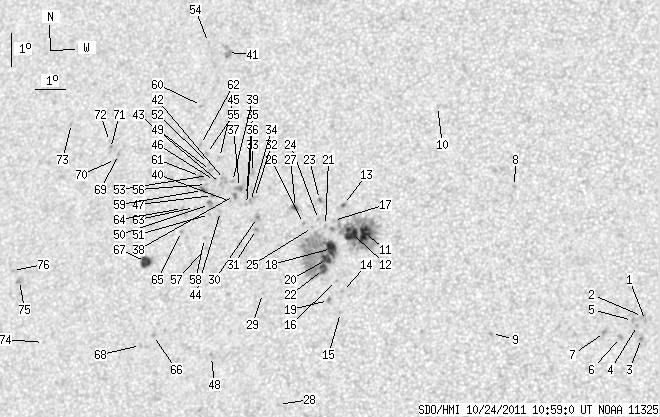

back to the solar disc SDO HMI 2011-10-24 10:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.30 | 0.00 | 0.67 | 13.48 | 289.68 | -11.48 | 52.78 | 0.2442 | -795.0 | -645.0 | |
| 0.00 | 2.17 | 0.00 | 1.11 | 13.60 | 289.58 | -11.58 | 52.61 | 0.2467 | -751.0 | -653.8 | |
| 0.00 | 1.13 | 0.00 | 0.58 | 12.94 | 289.58 | -11.58 | 54.86 | 0.2403 | -1133.0 | -1015.8 | |
| 0.00 | 1.30 | 0.00 | 0.67 | 13.33 | 289.44 | -11.72 | 53.85 | 0.2460 | -1049.0 | -875.4 | |
| 0.00 | 1.56 | 0.00 | 0.80 | 13.48 | 289.28 | -11.89 | 53.72 | 0.2496 | -1063.0 | -835.1 | |
| 0.00 | 2.35 | 0.00 | 1.20 | 12.96 | 288.93 | -12.24 | 56.22 | 0.2497 | -972.0 | -851.8 | |
| 0.00 | 2.96 | 0.00 | 1.51 | 13.10 | 288.42 | -12.75 | 56.77 | 0.2581 | -929.0 | -768.8 | |
| 0.00 | 1.39 | 0.00 | 0.73 | 17.46 | 285.24 | -15.93 | 50.37 | 0.3414 | -778.0 | -551.0 | |
| 0.00 | 1.30 | 0.00 | 0.68 | 12.99 | 284.85 | -16.31 | 62.86 | 0.3089 | -851.0 | -704.7 | |
| 0.00 | 0.96 | 0.00 | 0.52 | 19.84 | 282.45 | -18.72 | 49.43 | 0.3991 | -758.0 | -593.1 | |
| 12.08 | 97.54 | 6.50 | 52.54 | 15.89 | 280.47 | -20.69 | 60.49 | 0.3922 | -1228.9 | -528.7 | |
| 12.87 | -11.00 | 6.94 | -11.00 | 15.88 | 280.04 | -21.12 | 60.97 | 0.3981 | -998.2 | 999999 | |
| 0.35 | 2.35 | 0.19 | 1.27 | 16.75 | 279.68 | -21.49 | 59.40 | 0.4093 | -808.5 | -596.6 | |
| 0.00 | 1.13 | 0.00 | 0.61 | 14.12 | 279.93 | -21.24 | 65.22 | 0.3886 | -889.0 | -741.5 | |
| 0.00 | 1.13 | 0.00 | 0.61 | 13.48 | 279.92 | -21.24 | 66.77 | 0.3851 | -591.0 | -513.5 | |
| 0.00 | 1.22 | 0.00 | 0.66 | 14.44 | 279.70 | -21.47 | 64.65 | 0.3939 | -875.0 | -592.0 | |
| 0.00 | 1.39 | 0.00 | 0.75 | 16.26 | 279.40 | -21.76 | 60.78 | 0.4096 | -662.0 | -460.4 | |
| 10.08 | 110.58 | 5.46 | 59.97 | 15.41 | 279.43 | -21.74 | 62.66 | 0.4036 | -1040.0 | -157.2 | |
| 0.00 | 2.26 | 0.00 | 1.22 | 13.83 | 279.49 | -21.67 | 66.29 | 0.3933 | -1017.0 | -830.9 | |
| 6.52 | -18.00 | 3.53 | -18.00 | 15.07 | 279.30 | -21.86 | 63.56 | 0.4034 | -945.0 | 999999 | |
| 0.00 | 0.70 | 0.00 | 0.38 | 16.10 | 279.15 | -22.01 | 61.38 | 0.4120 | -552.0 | -492.5 | |
| 4.87 | -18.00 | 2.63 | -18.00 | 14.76 | 279.23 | -21.93 | 64.32 | 0.4025 | -944.5 | 999999 | |
| 1.30 | 2.35 | 0.71 | 1.28 | 16.88 | 278.85 | -22.31 | 59.96 | 0.4214 | -620.7 | -611.2 | |
| 0.00 | 1.22 | 0.00 | 0.66 | 16.27 | 278.90 | -22.27 | 61.24 | 0.4167 | -587.0 | -478.1 | |
| 0.00 | 1.13 | 0.00 | 0.62 | 16.02 | 278.72 | -22.44 | 61.95 | 0.4175 | -593.0 | -456.0 | |
| 0.00 | 0.87 | 0.00 | 0.47 | 16.13 | 278.41 | -22.76 | 62.00 | 0.4226 | -501.0 | -328.9 | |
| 2.43 | 3.39 | 1.33 | 1.86 | 16.61 | 278.08 | -23.09 | 61.28 | 0.4303 | 851.9 | 655.5 | |
| 0.00 | 1.04 | 0.00 | 0.56 | 10.66 | 278.13 | -23.04 | 74.95 | 0.4000 | 756.0 | 633.2 | |
| 0.00 | 0.61 | 0.00 | 0.33 | 13.97 | 277.28 | -23.89 | 67.70 | 0.4265 | 776.0 | 575.0 | |
| 0.00 | 3.56 | 0.00 | 1.97 | 16.26 | 276.83 | -24.33 | 63.10 | 0.4454 | 1104.0 | 781.5 | |
| 0.00 | 1.74 | 0.00 | 0.96 | 15.90 | 276.85 | -24.32 | 63.85 | 0.4431 | 949.0 | 749.2 | |
| 0.00 | 0.96 | 0.00 | 0.53 | 16.86 | 276.65 | -24.52 | 62.00 | 0.4516 | 874.0 | 784.7 | |
| 0.00 | 3.48 | 0.00 | 1.94 | 17.62 | 276.47 | -24.69 | 60.62 | 0.4588 | 891.0 | 689.5 | |
| 0.00 | 2.00 | 0.00 | 1.11 | 16.74 | 276.53 | -24.64 | 62.36 | 0.4525 | 805.0 | 746.5 | |
| 0.00 | 1.74 | 0.00 | 0.97 | 16.91 | 276.37 | -24.80 | 62.13 | 0.4558 | 863.0 | 614.9 | |
| 0.00 | 1.13 | 0.00 | 0.63 | 16.64 | 276.40 | -24.76 | 62.66 | 0.4536 | 793.0 | 624.5 | |
| 0.00 | 4.35 | 0.00 | 2.42 | 17.15 | 276.09 | -25.07 | 61.89 | 0.4610 | 910.0 | 854.4 | |
| 0.00 | 2.69 | 0.00 | 1.50 | 16.90 | 275.96 | -25.21 | 62.50 | 0.4614 | 942.0 | 841.5 | |
| 0.00 | 1.39 | 0.00 | 0.78 | 17.32 | 275.82 | -25.34 | 61.76 | 0.4657 | 871.0 | 721.0 | |
| 0.00 | 0.87 | 0.00 | 0.48 | 16.71 | 275.84 | -25.32 | 62.96 | 0.4618 | 737.0 | 590.2 | |
| 0.00 | 7.13 | 0.00 | 4.08 | 21.27 | 274.98 | -26.19 | 55.12 | 0.5033 | 767.0 | 672.4 | |
| 0.00 | 3.22 | 0.00 | 1.80 | 17.37 | 275.54 | -25.63 | 61.89 | 0.4699 | 694.0 | 734.3 | |
| 0.00 | 1.22 | 0.00 | 0.68 | 17.25 | 275.42 | -25.74 | 62.23 | 0.4708 | 879.0 | 742.4 | |
| 0.00 | 1.39 | 0.00 | 0.78 | 16.40 | 275.54 | -25.62 | 63.83 | 0.4641 | 666.0 | 591.2 | |
| 0.00 | 0.96 | 0.00 | 0.54 | 18.04 | 275.26 | -25.90 | 60.82 | 0.4777 | 672.0 | 504.4 | |
| 0.00 | 2.00 | 0.00 | 1.12 | 17.33 | 275.20 | -25.97 | 62.24 | 0.4743 | 632.0 | 568.1 | |
| 0.00 | 1.39 | 0.00 | 0.78 | 16.87 | 275.20 | -25.97 | 63.14 | 0.4716 | 889.0 | 771.5 | |
| 0.00 | 2.35 | 0.00 | 1.29 | 12.01 | 275.77 | -25.40 | 72.99 | 0.4405 | 688.0 | 633.0 | |
| 0.00 | 1.22 | 0.00 | 0.69 | 17.63 | 275.01 | -26.15 | 61.80 | 0.4786 | 727.0 | 640.5 | |
| 0.00 | 3.91 | 0.00 | 2.19 | 16.59 | 275.14 | -26.03 | 63.74 | 0.4709 | 999.0 | 750.7 | |
| 0.00 | 1.13 | 0.00 | 0.63 | 16.29 | 275.18 | -25.99 | 64.31 | 0.4686 | 723.0 | 507.3 | |
| 0.00 | 1.83 | 0.00 | 1.03 | 17.84 | 274.91 | -26.25 | 61.48 | 0.4812 | 567.0 | 477.3 | |
| 0.00 | 0.96 | 0.00 | 0.54 | 17.47 | 274.97 | -26.20 | 62.14 | 0.4783 | 847.0 | 664.7 | |
| 0.00 | 1.39 | 0.00 | 0.80 | 21.56 | 274.24 | -26.92 | 55.28 | 0.5144 | 670.0 | 449.2 | |
| 0.00 | 1.04 | 0.00 | 0.59 | 18.14 | 274.79 | -26.37 | 61.00 | 0.4847 | 686.0 | 578.7 | |
| 0.00 | 1.30 | 0.00 | 0.73 | 17.20 | 274.94 | -26.22 | 62.70 | 0.4770 | 755.0 | 575.3 | |
| 0.00 | 1.04 | 0.00 | 0.58 | 15.26 | 275.18 | -25.98 | 66.41 | 0.4631 | 852.0 | 601.6 | |
| 0.00 | 1.22 | 0.00 | 0.68 | 15.56 | 275.11 | -26.06 | 65.84 | 0.4657 | 668.0 | 469.8 | |
| 0.78 | 3.30 | 0.44 | 1.86 | 17.01 | 274.83 | -26.33 | 63.15 | 0.4774 | 906.4 | 710.0 | |
| 0.00 | 1.74 | 0.00 | 0.99 | 19.60 | 274.36 | -26.80 | 58.62 | 0.4995 | 601.0 | 356.2 | |
| 0.00 | 5.39 | 0.00 | 3.04 | 17.43 | 274.70 | -26.47 | 62.43 | 0.4817 | 744.0 | 591.1 | |
| 0.00 | 1.22 | 0.00 | 0.69 | 18.41 | 274.54 | -26.63 | 60.69 | 0.4897 | 619.0 | 470.4 | |
| 0.00 | 0.96 | 0.00 | 0.54 | 16.48 | 274.63 | -26.53 | 64.33 | 0.4773 | 634.0 | 546.1 | |
| 0.00 | 1.56 | 0.00 | 0.88 | 16.44 | 274.22 | -26.95 | 64.70 | 0.4827 | 604.0 | 474.4 | |
| 0.00 | 1.48 | 0.00 | 0.83 | 15.74 | 274.29 | -26.88 | 66.03 | 0.4782 | 781.0 | 661.5 | |
| 0.00 | 1.48 | 0.00 | 0.83 | 12.57 | 273.73 | -27.44 | 72.79 | 0.4727 | 821.0 | 663.1 | |
| 8.35 | 10.69 | 4.73 | 6.06 | 14.78 | 273.17 | -28.00 | 68.61 | 0.4895 | 858.0 | 633.5 | |
| 0.00 | 1.83 | 0.00 | 1.03 | 12.25 | 273.32 | -27.85 | 73.63 | 0.4777 | 606.0 | 481.7 | |
| 0.00 | 1.30 | 0.00 | 0.76 | 17.99 | 271.69 | -29.47 | 63.48 | 0.5251 | 761.0 | 663.7 | |
| 0.00 | 1.56 | 0.00 | 0.91 | 17.83 | 271.61 | -29.55 | 63.81 | 0.5254 | 747.0 | 541.4 | |
| 0.00 | 2.35 | 0.00 | 1.37 | 18.16 | 271.37 | -29.80 | 63.38 | 0.5303 | 622.0 | 624.9 | |
| 0.00 | 1.04 | 0.00 | 0.61 | 18.37 | 271.29 | -29.87 | 63.05 | 0.5324 | 563.0 | 446.2 | |
| 0.00 | 1.39 | 0.00 | 0.83 | 18.86 | 269.80 | -31.36 | 63.11 | 0.5543 | 711.0 | 573.8 | |
| 0.00 | 0.70 | 0.00 | 0.40 | 12.19 | 269.92 | -31.25 | 75.02 | 0.5270 | 581.0 | 489.5 | |
| 0.00 | 4.35 | 0.00 | 2.57 | 14.01 | 268.79 | -32.38 | 72.08 | 0.5482 | 771.0 | 601.2 | |
| 0.00 | 1.39 | 0.00 | 0.83 | 14.30 | 268.49 | -32.68 | 71.69 | 0.5533 | 689.0 | 590.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
