SDO HMI 2011-10-24 10:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 67.84 | 332.78 | 44.44 | 216.83 | -21.61 | 332.14 | 30.98 | 227.47 | 0.6518 | -444.6 | -220.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-24 10:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

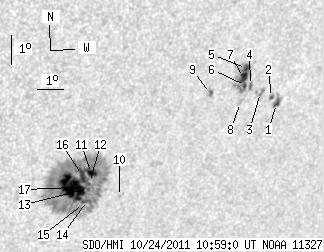

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.83 | 6.95 | 2.64 | 4.80 | -19.76 | 338.27 | 37.10 | 234.57 | 0.6990 | 578.7 | 498.2 | |
| 1.48 | 2.00 | 1.02 | 1.37 | -19.55 | 338.01 | 36.84 | 234.66 | 0.6951 | 667.2 | 628.2 | |
| 0.00 | 4.69 | 0.00 | 3.20 | -19.36 | 337.53 | 36.36 | 234.56 | 0.6889 | 527.0 | 591.9 | |
| 1.74 | 3.30 | 1.18 | 2.23 | -19.11 | 337.07 | 35.90 | 234.56 | 0.6825 | 546.6 | 459.3 | |
| 3.83 | 29.04 | 2.56 | 19.48 | -18.54 | 336.77 | 35.61 | 235.07 | 0.6757 | 895.8 | 744.4 | |
| 1.65 | -5.00 | 1.11 | -5.00 | -19.10 | 336.87 | 35.71 | 234.43 | 0.6804 | 781.3 | 999999 | |
| 5.22 | -5.00 | 3.50 | -5.00 | -18.83 | 336.73 | 35.56 | 234.66 | 0.6771 | 1059.2 | 999999 | |
| 0.00 | 3.04 | 0.00 | 2.06 | -19.65 | 336.82 | 35.65 | 233.69 | 0.6835 | 592.0 | 444.2 | |
| 0.78 | 2.43 | 0.52 | 1.62 | -19.29 | 335.56 | 34.40 | 233.22 | 0.6681 | 813.1 | 707.2 | |
| 0.00 | 1.22 | 0.00 | 0.81 | -22.55 | 332.91 | 31.74 | 227.05 | 0.6661 | -552.0 | -433.6 | |
| 5.22 | 280.11 | 3.38 | 181.26 | -21.72 | 331.65 | 30.48 | 226.95 | 0.6472 | -934.1 | -349.4 | |
| 0.35 | -11.00 | 0.23 | -11.00 | -22.02 | 331.64 | 30.48 | 226.58 | 0.6496 | -450.8 | 999999 | |
| 0.70 | -11.00 | 0.45 | -11.00 | -22.23 | 331.65 | 30.49 | 226.35 | 0.6514 | -428.6 | 999999 | |
| 0.96 | -11.00 | 0.63 | -11.00 | -22.63 | 331.72 | 30.55 | 225.92 | 0.6554 | 90.4 | 999999 | |
| 0.96 | -11.00 | 0.63 | -11.00 | -22.72 | 331.59 | 30.42 | 225.70 | 0.6550 | -444.2 | 999999 | |
| 6.43 | -11.00 | 4.16 | -11.00 | -21.78 | 331.32 | 30.16 | 226.60 | 0.6444 | -927.9 | 999999 | |
| 34.69 | -11.00 | 22.43 | -11.00 | -22.16 | 331.04 | 29.88 | 225.87 | 0.6450 | -1082.2 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
