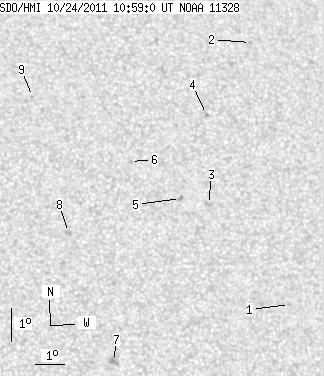

SDO HMI 2011-10-24 10:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 18.27 | 0.00 | 9.99 | 16.78 | 323.50 | 22.33 | 299.53 | 0.4224 | 427.1 | 410.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-24 10:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.96 | 0.00 | 0.54 | 14.20 | 327.83 | 26.66 | 290.99 | 0.4679 | 686.0 | 503.7 | |
| 0.00 | 1.13 | 0.00 | 0.65 | 22.26 | 327.79 | 26.63 | 306.17 | 0.5159 | -648.0 | -529.8 | |
| 0.00 | 2.09 | 0.00 | 1.16 | 17.33 | 325.47 | 24.30 | 299.13 | 0.4516 | -826.0 | -687.6 | |
| 0.00 | 2.17 | 0.00 | 1.22 | 20.09 | 325.83 | 24.66 | 304.15 | 0.4754 | 753.0 | 616.1 | |
| 0.00 | 1.74 | 0.00 | 0.96 | 17.55 | 324.54 | 23.38 | 300.41 | 0.4405 | 892.0 | 731.6 | |
| 0.00 | 1.22 | 0.00 | 0.67 | 18.73 | 323.00 | 21.84 | 304.41 | 0.4288 | 761.0 | 539.2 | |
| 0.00 | 5.22 | 0.00 | 2.78 | 12.69 | 321.77 | 20.61 | 291.78 | 0.3714 | 1149.0 | 809.4 | |
| 0.00 | 2.52 | 0.00 | 1.35 | 16.63 | 320.67 | 19.51 | 302.56 | 0.3813 | 413.0 | 427.4 | |
| 0.00 | 1.22 | 0.00 | 0.66 | 20.83 | 319.97 | 18.80 | 312.40 | 0.4097 | 664.0 | 497.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
