SDO HMI 2011-10-24 11:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 14.00 | 0.00 | 8.46 | 23.80 | 331.25 | 30.64 | 305.51 | 0.5753 | -666.6 | -568.6 | |
|
previous
or next observation for the same group /

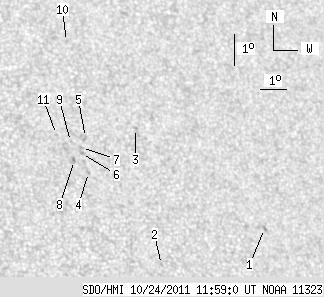

back to the solar disc SDO HMI 2011-10-24 11:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.09 | 0.00 | 1.32 | 21.38 | 336.36 | 35.75 | 298.51 | 0.6214 | -680.0 | -555.3 | |
| 0.00 | 0.70 | 0.00 | 0.42 | 20.45 | 332.17 | 31.55 | 299.44 | 0.5652 | -716.0 | -496.8 | |
| 0.00 | 0.87 | 0.00 | 0.53 | 24.73 | 332.28 | 31.66 | 306.09 | 0.5923 | -592.0 | -483.3 | |
| 0.00 | 1.65 | 0.00 | 0.98 | 23.42 | 330.15 | 29.53 | 305.67 | 0.5589 | -820.0 | -677.2 | |
| 0.00 | 1.74 | 0.00 | 1.04 | 24.53 | 330.32 | 29.70 | 307.26 | 0.5685 | -525.0 | -497.7 | |
| 0.00 | 1.22 | 0.00 | 0.73 | 24.03 | 330.04 | 29.42 | 306.71 | 0.5618 | -653.0 | -596.4 | |
| 0.00 | 1.39 | 0.00 | 0.83 | 24.22 | 330.08 | 29.47 | 306.97 | 0.5637 | -624.0 | -515.9 | |
| 0.00 | 1.65 | 0.00 | 0.98 | 23.82 | 329.72 | 29.11 | 306.63 | 0.5567 | -807.0 | -734.5 | |
| 0.00 | 0.87 | 0.00 | 0.52 | 24.42 | 329.72 | 29.11 | 307.57 | 0.5610 | -583.0 | -556.5 | |
| 0.00 | 1.04 | 0.00 | 0.64 | 27.60 | 330.45 | 29.84 | 311.70 | 0.5928 | -634.0 | -488.9 | |
| 0.00 | 0.78 | 0.00 | 0.47 | 24.66 | 329.26 | 28.64 | 308.33 | 0.5575 | -699.0 | -521.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
