Sunspot Group 11324

group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP

11324	90.07	410.02	45.12	205.76	12.32	303.38	2.76	344.50	0.1565	25.9	97.0

previous or next observation for the same group / back to the solar disc

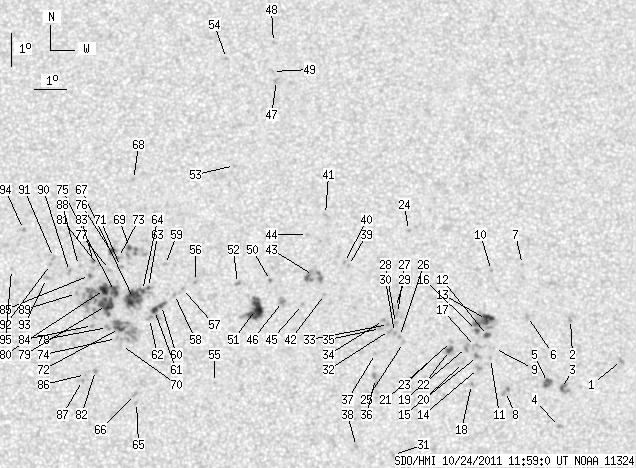

SDO HMI 2011-10-24 11:59:00 UT
No observation available

See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP

1	0.00	2.96	0.00	1.52	10.63	314.89	14.28	292.15	0.2628	-974.0	-777.1
2	0.00	1.91	0.00	0.98	11.89	313.36	12.74	299.07	0.2480	-930.0	-694.6
3	1.56	6.69	0.80	3.41	9.83	312.99	12.37	291.72	0.2283	-1056.2	-797.0
4	0.00	2.52	0.00	1.28	8.70	312.89	12.27	287.02	0.2207	-977.0	-692.6
5	0.00	6.52	0.00	3.31	10.02	312.56	11.95	293.16	0.2227	-1128.0	-949.9
6	0.00	2.78	0.00	1.42	12.01	312.02	11.41	302.14	0.2295	-928.0	-662.5
7	0.00	1.04	0.00	0.53	13.57	311.94	11.32	307.90	0.2430	-723.0	-553.2
8	0.00	4.00	0.00	2.02	9.77	311.26	10.64	294.39	0.2007	-968.0	-849.9
9	0.00	0.35	0.00	0.18	11.06	310.96	10.35	300.75	0.2061	-611.0	-417.0
10	0.00	1.04	0.00	0.53	13.41	310.96	10.35	309.78	0.2284	-866.0	-721.5
11	0.00	1.13	0.00	0.57	10.76	310.83	10.21	299.78	0.2016	-760.0	-591.8
12	2.61	3.30	1.32	1.67	11.46	310.76	10.14	302.89	0.2065	-862.0	-699.4
13	8.52	32.60	4.32	16.51	11.94	310.75	10.13	304.88	0.2108	-1021.4	-679.9
14	0.00	2.87	0.00	1.45	10.47	310.45	9.83	299.36	0.1936	-1023.0	-831.5
15	0.00	2.96	0.00	1.49	10.83	310.43	9.81	301.03	0.1963	-1003.0	-865.3
16	1.39	-13.00	0.70	-13.00	11.61	310.43	9.81	304.39	0.2032	-1055.8	999999
17	0.00	4.35	0.00	2.20	11.13	310.38	9.76	302.48	0.1982	-767.0	-788.0
18	0.00	1.39	0.00	0.70	10.00	310.22	9.60	297.67	0.1864	-878.0	-748.6
19	0.00	3.30	0.00	1.67	11.11	310.10	9.48	303.10	0.1939	-1075.0	-884.3
20	0.00	1.13	0.00	0.57	10.66	310.00	9.38	301.36	0.1884	-862.0	-643.1
21	0.00	1.39	0.00	0.70	11.29	309.65	9.03	305.19	0.1892	-852.0	-648.2
22	1.83	3.82	0.92	1.93	11.02	309.58	8.96	304.19	0.1857	-1135.8	-812.9
23	0.00	0.96	0.00	0.48	10.94	309.21	8.59	304.90	0.1796	-870.0	-675.8
24	0.00	1.04	0.00	0.53	14.65	308.43	7.81	321.65	0.2130	-863.0	-694.5
25	0.00	0.96	0.00	0.48	11.28	308.17	7.55	309.95	0.1690	-836.0	-652.4
26	0.00	1.48	0.00	0.74	11.46	308.05	7.44	311.22	0.1694	-925.0	-696.7
27	0.00	1.83	0.00	0.92	12.15	308.01	7.39	314.37	0.1768	-879.0	-746.5
28	0.00	2.17	0.00	1.09	11.85	307.94	7.32	313.38	0.1724	-791.0	-739.2
29	0.00	2.78	0.00	1.40	12.33	307.96	7.34	315.33	0.1783	-688.0	-556.1
30	0.00	1.39	0.00	0.70	11.58	307.90	7.29	312.34	0.1689	-877.0	-744.9
31	0.00	1.48	0.00	0.74	7.94	307.79	7.18	291.90	0.1340	-859.0	-685.8
32	0.00	2.00	0.00	1.00	11.65	307.75	7.13	313.20	0.1677	-800.0	-817.3
33	0.00	1.22	0.00	0.61	11.83	307.73	7.11	314.10	0.1694	-1027.0	-887.2
34	0.00	1.65	0.00	0.83	11.95	307.58	6.96	315.22	0.1691	-1003.0	-852.5
35	0.00	2.00	0.00	1.00	11.71	307.48	6.86	314.59	0.1650	-1125.0	-923.3
36	0.00	5.56	0.00	2.79	10.21	307.29	6.67	307.98	0.1458	-958.0	-790.4
37	0.00	1.13	0.00	0.57	10.96	307.31	6.69	311.81	0.1541	-803.0	-583.7
38	0.00	2.17	0.00	1.08	8.19	306.68	6.06	297.29	0.1181	-869.0	-736.4
39	0.00	1.22	0.00	0.61	13.61	306.54	5.92	325.88	0.1797	-935.0	-755.5
40	0.00	0.96	0.00	0.48	13.70	306.42	5.80	326.71	0.1798	-886.0	-732.2
41	0.00	1.30	0.00	0.66	15.16	305.87	5.25	333.16	0.1966	-760.0	-564.4
42	0.00	1.04	0.00	0.52	12.74	305.78	5.17	326.55	0.1601	-886.0	-728.7
43	0.00	15.82	0.00	7.94	13.32	305.46	4.84	330.11	0.1655	-369.0	-639.0
44	0.00	1.13	0.00	0.57	14.56	305.30	4.68	334.31	0.1830	-963.0	-696.1
45	0.00	1.56	0.00	0.78	12.45	305.10	4.49	329.13	0.1496	-838.0	-627.1
46	0.00	5.30	0.00	2.65	12.54	304.49	3.88	332.97	0.1459	1061.0	835.4
47	0.00	2.26	0.00	1.16	19.25	304.44	3.82	345.57	0.2534	-759.0	-683.2
48	0.00	0.96	0.00	0.49	20.43	304.37	3.75	346.93	0.2723	-783.0	-658.8
49	0.00	1.04	0.00	0.53	19.53	304.32	3.70	346.28	0.2575	-802.0	-553.6
50	0.00	1.39	0.00	0.70	13.18	304.14	3.52	336.93	0.1532	1095.0	831.2
51	18.69	25.56	9.34	12.78	12.31	303.67	3.05	337.46	0.1362	-1040.3	-686.3
52	0.00	2.69	0.00	1.35	13.09	303.12	2.51	342.93	0.1458	937.0	684.8
53	0.00	1.13	0.00	0.57	16.66	303.07	2.45	348.41	0.2052	-791.0	-620.7
54	0.00	1.13	0.00	0.58	19.94	302.86	2.25	351.80	0.2596	793.0	650.1
55	0.00	0.96	0.00	0.48	10.12	302.40	1.78	340.65	0.0928	704.0	537.7
56	0.00	1.13	0.00	0.57	13.16	301.84	1.22	351.56	0.1419	902.0	749.1
57	0.00	1.04	0.00	0.52	12.95	301.44	0.82	354.14	0.1374	832.0	626.1
58	0.00	1.39	0.00	0.70	12.76	301.19	0.58	355.78	0.1340	845.0	577.4
59	0.00	1.91	0.00	0.96	13.67	300.92	0.30	358.02	0.1494	821.0	570.2
60	1.04	10.43	0.52	5.21	12.43	300.80	0.18	358.63	0.1279	962.4	565.8
61	2.87	-60.00	1.43	-60.00	12.28	300.58	-0.03	0.27	0.1252	1010.8	999999
62	0.00	2.96	0.00	1.47	12.04	300.43	-0.19	1.52	0.1211	846.0	690.3
63	1.22	35.81	0.61	17.90	12.98	300.40	-0.22	1.56	0.1373	717.6	710.0
64	2.00	-63.00	1.00	-63.00	12.89	300.22	-0.40	2.90	0.1359	920.2	999999
65	0.00	1.48	0.00	0.73	9.53	300.04	-0.58	7.38	0.0778	839.0	654.0
66	0.00	1.91	0.00	0.95	9.77	299.98	-0.64	7.73	0.0821	984.0	847.3
67	16.86	-63.00	8.43	-63.00	12.64	299.94	-0.68	5.03	0.1320	1118.5	999999
68	0.00	1.39	0.00	0.70	16.24	299.93	-0.69	3.42	0.1940	851.0	710.9
69	1.65	13.56	0.83	6.80	14.18	299.81	-0.80	4.94	0.1587	726.1	767.6
70	0.00	1.22	0.00	0.61	11.23	299.58	-1.04	9.47	0.1084	728.0	625.4
71	0.00	2.26	0.00	1.13	13.61	299.54	-1.08	7.06	0.1494	880.0	689.5
72	2.09	35.20	1.04	17.55	11.74	299.52	-1.10	9.26	0.1174	1127.7	561.1
73	0.00	2.35	0.00	1.18	13.88	299.48	-1.14	7.23	0.1542	1013.0	850.7
74	0.00	1.48	0.00	0.74	11.44	299.43	-1.19	10.48	0.1125	857.0	672.7
75	4.09	79.71	2.04	39.84	12.85	299.36	-1.26	9.04	0.1369	1052.9	839.5
76	2.78	3.74	1.40	1.87	14.06	299.26	-1.36	8.41	0.1578	904.8	804.2
77	0.00	1.83	0.00	0.91	13.52	299.20	-1.41	9.33	0.1486	828.0	665.8
78	0.00	2.69	0.00	1.34	11.77	299.15	-1.47	12.20	0.1190	1017.0	794.9
79	14.26	-75.00	7.12	-75.00	12.43	299.12	-1.50	11.36	0.1304	1173.7	999999
80	6.61	-75.00	3.30	-75.00	12.91	299.05	-1.56	11.10	0.1388	1099.1	999999
81	0.00	1.04	0.00	0.52	13.64	298.87	-1.75	11.35	0.1517	749.0	589.1
82	0.00	2.00	0.00	1.00	10.48	298.79	-1.82	18.51	0.0990	1105.0	894.4
83	0.00	1.56	0.00	0.78	13.76	298.71	-1.91	12.15	0.1543	865.0	709.1
84	0.00	1.30	0.00	0.65	11.83	298.69	-1.92	15.70	0.1219	942.0	794.6
85	0.00	1.39	0.00	0.70	13.33	298.59	-2.03	13.54	0.1476	903.0	834.8
86	0.00	1.22	0.00	0.61	10.36	298.49	-2.13	21.77	0.0988	900.0	679.7
87	0.00	1.22	0.00	0.61	10.18	298.40	-2.21	23.32	0.0965	1016.0	758.1
88	0.00	0.52	0.00	0.26	13.63	298.25	-2.37	15.16	0.1541	454.0	504.3
89	0.00	2.00	0.00	1.00	12.79	298.20	-2.42	17.14	0.1403	886.0	689.2
90	0.00	2.35	0.00	1.18	13.45	297.98	-2.64	17.18	0.1524	738.0	704.3
91	0.00	2.17	0.00	1.09	13.87	297.48	-3.14	19.24	0.1620	850.0	685.4
92	0.00	1.13	0.00	0.57	13.66	297.39	-3.23	20.21	0.1591	859.0	681.8
93	0.00	2.26	0.00	1.13	13.24	297.27	-3.34	21.89	0.1530	751.0	608.3
94	0.00	2.09	0.00	1.05	14.71	296.54	-4.07	22.40	0.1812	901.0	700.4
95	0.00	0.96	0.00	0.48	13.50	296.20	-4.42	27.18	0.1649	692.0	544.3

	Proj. U	- Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	- Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	- Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	- Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	- Heliographic latitude B; positive: North, negative: South
	L	- Heliographic longitude L
	LCM	- Longitudinal distance from the Sun's central meridian
	Pos. angle	- Position angle
	r	- Distance from the centre of Sun's disc in terms of Sun's radius
	MU	- Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	- Mean magnetic field within the penumbra contour averaged the pixel values with sign.
