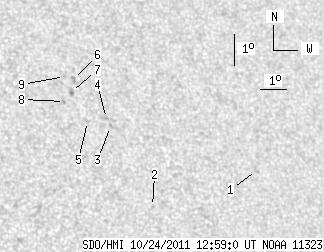

SDO HMI 2011-10-24 12:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 14.51 | 0.00 | 8.81 | 23.25 | 331.44 | 31.37 | 304.17 | 0.5802 | -662.9 | -572.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-24 12:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.35 | 0.00 | 1.49 | 21.34 | 336.44 | 36.37 | 298.15 | 0.6287 | -770.0 | -589.6 | |
| 0.00 | 1.04 | 0.00 | 0.63 | 20.43 | 332.18 | 32.11 | 299.06 | 0.5720 | -551.0 | -458.8 | |
| 0.00 | 1.13 | 0.00 | 0.68 | 22.97 | 331.22 | 31.15 | 303.77 | 0.5751 | -562.0 | -585.4 | |
| 0.00 | 0.78 | 0.00 | 0.47 | 23.23 | 331.13 | 31.06 | 304.23 | 0.5757 | -657.0 | -514.3 | |
| 0.00 | 1.13 | 0.00 | 0.68 | 23.17 | 330.40 | 30.33 | 304.66 | 0.5666 | -647.0 | -507.5 | |
| 0.00 | 2.43 | 0.00 | 1.47 | 24.51 | 330.21 | 30.15 | 306.88 | 0.5735 | -609.0 | -544.5 | |
| 0.00 | 3.13 | 0.00 | 1.88 | 24.13 | 330.04 | 29.97 | 306.44 | 0.5689 | -712.0 | -596.2 | |
| 0.00 | 1.39 | 0.00 | 0.83 | 23.83 | 329.70 | 29.63 | 306.23 | 0.5629 | -933.0 | -800.6 | |
| 0.00 | 1.13 | 0.00 | 0.68 | 24.61 | 329.90 | 29.83 | 307.29 | 0.5707 | -525.0 | -444.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
