SDO HMI 2011-10-24 12:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 63.00 | 322.60 | 41.70 | 212.74 | -21.59 | 332.13 | 32.06 | 228.42 | 0.6622 | -431.6 | -197.0 | |
|
previous
or next observation for the same group /

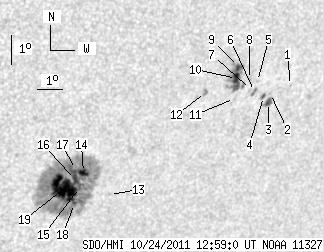

back to the solar disc SDO HMI 2011-10-24 12:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.78 | 0.00 | 0.55 | -19.22 | 339.06 | 39.00 | 236.50 | 0.7149 | 485.0 | 376.3 | |
| 0.00 | 1.04 | 0.00 | 0.73 | -19.43 | 338.31 | 38.25 | 235.75 | 0.7086 | 547.0 | 485.7 | |
| 4.17 | 6.08 | 2.93 | 4.27 | -19.73 | 338.32 | 38.25 | 235.39 | 0.7104 | 539.9 | 400.1 | |
| 1.74 | 2.35 | 1.21 | 1.64 | -19.52 | 338.06 | 37.99 | 235.48 | 0.7065 | 639.9 | 626.3 | |
| 0.00 | 0.87 | 0.00 | 0.60 | -19.01 | 337.68 | 37.61 | 235.86 | 0.6995 | 546.0 | 436.9 | |
| 0.00 | 3.04 | 0.00 | 2.11 | -19.33 | 337.64 | 37.57 | 235.43 | 0.7011 | 656.0 | 572.2 | |
| 0.00 | 1.30 | 0.00 | 0.90 | -19.25 | 337.46 | 37.39 | 235.41 | 0.6988 | 488.0 | 314.1 | |
| 0.00 | 1.13 | 0.00 | 0.78 | -18.92 | 337.33 | 37.27 | 235.74 | 0.6954 | 604.0 | 523.0 | |
| 2.26 | 31.55 | 1.54 | 21.48 | -18.47 | 336.78 | 36.71 | 235.94 | 0.6868 | 870.6 | 707.4 | |
| 4.69 | -9.00 | 3.20 | -9.00 | -18.86 | 336.80 | 36.74 | 235.46 | 0.6895 | 1048.8 | 999999 | |
| 0.00 | 1.13 | 0.00 | 0.78 | -19.52 | 336.90 | 36.83 | 234.70 | 0.6946 | 368.0 | 331.1 | |
| 0.00 | 2.69 | 0.00 | 1.82 | -19.25 | 335.69 | 35.62 | 234.17 | 0.6805 | 843.0 | 758.5 | |
| 0.00 | 0.96 | 0.00 | 0.64 | -22.47 | 332.81 | 32.74 | 228.00 | 0.6749 | -557.0 | -432.6 | |
| 4.78 | 269.68 | 3.13 | 176.44 | -21.67 | 331.62 | 31.55 | 227.95 | 0.6571 | -911.6 | -351.1 | |
| 1.04 | -14.00 | 0.69 | -14.00 | -22.17 | 331.59 | 31.52 | 227.33 | 0.6609 | -538.2 | 999999 | |
| 4.52 | -14.00 | 2.96 | -14.00 | -21.90 | 331.37 | 31.30 | 227.47 | 0.6565 | -830.6 | 999999 | |
| 0.78 | -14.00 | 0.51 | -14.00 | -21.56 | 331.29 | 31.22 | 227.81 | 0.6530 | -999.6 | 999999 | |
| 1.13 | -14.00 | 0.75 | -14.00 | -22.71 | 331.54 | 31.47 | 226.65 | 0.6647 | -427.5 | 999999 | |
| 37.89 | -14.00 | 24.78 | -14.00 | -22.18 | 330.99 | 30.92 | 226.80 | 0.6551 | -1065.5 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
