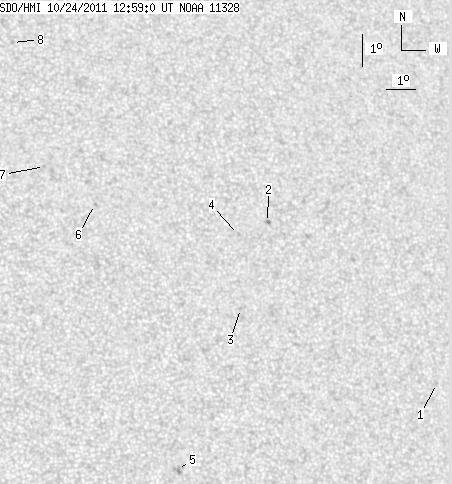

SDO HMI 2011-10-24 12:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 12.60 | 0.00 | 6.97 | 17.64 | 323.07 | 23.00 | 300.86 | 0.4432 | 711.9 | 636.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-24 12:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.48 | 0.00 | 0.86 | 14.93 | 330.95 | 30.88 | 290.21 | 0.5306 | 837.0 | 532.9 | |
| 0.00 | 1.83 | 0.00 | 1.04 | 20.07 | 325.81 | 25.74 | 303.14 | 0.4892 | 693.0 | 663.2 | |
| 0.00 | 0.78 | 0.00 | 0.43 | 17.47 | 324.46 | 24.39 | 299.36 | 0.4538 | 718.0 | 415.3 | |
| 0.00 | 0.87 | 0.00 | 0.49 | 19.74 | 324.74 | 24.67 | 303.50 | 0.4731 | 583.0 | 481.5 | |
| 0.00 | 4.43 | 0.00 | 2.38 | 12.68 | 321.79 | 21.72 | 290.88 | 0.3881 | 944.0 | 797.2 | |
| 0.00 | 0.87 | 0.00 | 0.47 | 20.82 | 319.95 | 19.88 | 310.93 | 0.4225 | 599.0 | 603.6 | |
| 0.00 | 0.78 | 0.00 | 0.43 | 22.05 | 318.42 | 18.35 | 315.35 | 0.4170 | 712.0 | 609.7 | |
| 0.00 | 1.56 | 0.00 | 0.87 | 25.98 | 317.90 | 17.83 | 322.60 | 0.4550 | 609.0 | 495.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
