SDO HMI 2011-10-24 13:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 13.83 | 0.00 | 8.42 | 23.58 | 331.07 | 31.55 | 304.54 | 0.5842 | -717.8 | -613.9 | |
|
previous
or next observation for the same group /

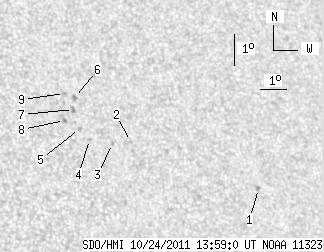

back to the solar disc SDO HMI 2011-10-24 13:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.74 | 0.00 | 1.11 | 21.34 | 336.49 | 36.97 | 297.86 | 0.6358 | -726.0 | -648.2 | |
| 0.00 | 0.70 | 0.00 | 0.43 | 23.04 | 331.94 | 32.42 | 303.00 | 0.5906 | -581.0 | -500.6 | |
| 0.00 | 1.13 | 0.00 | 0.69 | 23.01 | 331.25 | 31.73 | 303.42 | 0.5821 | -712.0 | -629.5 | |
| 0.00 | 0.52 | 0.00 | 0.31 | 23.17 | 330.41 | 30.89 | 304.26 | 0.5733 | -631.0 | -528.0 | |
| 0.00 | 1.74 | 0.00 | 1.05 | 23.53 | 330.13 | 30.61 | 305.03 | 0.5723 | -738.0 | -628.0 | |
| 0.00 | 2.26 | 0.00 | 1.37 | 24.51 | 330.20 | 30.68 | 306.49 | 0.5796 | -717.0 | -571.4 | |
| 0.00 | 2.61 | 0.00 | 1.58 | 24.13 | 330.06 | 30.54 | 306.01 | 0.5755 | -735.0 | -589.3 | |
| 0.00 | 1.65 | 0.00 | 0.99 | 23.80 | 329.63 | 30.11 | 305.82 | 0.5683 | -903.0 | -790.2 | |
| 0.00 | 1.48 | 0.00 | 0.89 | 24.65 | 329.86 | 30.34 | 306.96 | 0.5767 | -717.0 | -539.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
