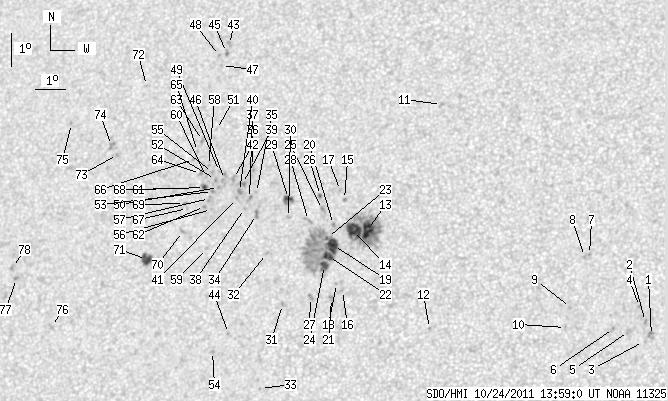

SDO HMI 2011-10-24 13:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 66.14 | 332.79 | 35.61 | 179.68 | 15.82 | 278.63 | -20.89 | 60.48 | 0.3947 | -55.5 | -41.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-24 13:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.52 | 0.00 | 2.29 | 12.93 | 289.72 | -9.80 | 50.43 | 0.2163 | -694.0 | -798.9 | |
| 0.00 | 2.09 | 0.00 | 1.06 | 13.35 | 289.51 | -10.01 | 49.50 | 0.2234 | -1060.0 | -792.8 | |
| 0.00 | 0.78 | 0.00 | 0.40 | 12.74 | 289.48 | -10.04 | 51.77 | 0.2175 | -366.0 | -406.7 | |
| 0.00 | 1.04 | 0.00 | 0.53 | 13.80 | 289.31 | -10.21 | 48.52 | 0.2309 | -882.0 | -696.3 | |
| 0.00 | 3.65 | 0.00 | 1.86 | 13.04 | 289.00 | -10.52 | 51.96 | 0.2269 | -889.0 | -760.5 | |
| 0.00 | 1.22 | 0.00 | 0.62 | 13.12 | 288.53 | -10.99 | 52.84 | 0.2341 | -1003.0 | -810.1 | |
| 0.00 | 1.13 | 0.00 | 0.58 | 15.34 | 287.66 | -11.86 | 47.87 | 0.2685 | -948.0 | -717.4 | |
| 0.00 | 1.30 | 0.00 | 0.67 | 15.28 | 287.51 | -12.01 | 48.41 | 0.2697 | -871.0 | -691.6 | |
| 0.00 | 0.96 | 0.00 | 0.49 | 13.73 | 287.15 | -12.37 | 53.91 | 0.2587 | -817.0 | -633.4 | |
| 0.00 | 0.87 | 0.00 | 0.44 | 13.12 | 287.03 | -12.49 | 56.15 | 0.2548 | -677.0 | -563.3 | |
| 0.00 | 2.35 | 0.00 | 1.25 | 19.81 | 282.51 | -17.01 | 46.93 | 0.3784 | -858.0 | -707.7 | |
| 0.00 | 0.70 | 0.00 | 0.36 | 13.00 | 282.73 | -16.79 | 63.42 | 0.3161 | -813.0 | -694.1 | |
| 13.56 | 86.46 | 7.22 | 46.08 | 15.93 | 280.48 | -19.04 | 58.49 | 0.3696 | -1219.9 | -516.0 | |
| 15.73 | -13.00 | 8.40 | -13.00 | 15.89 | 280.02 | -19.50 | 59.14 | 0.3756 | -973.9 | 999999 | |
| 0.00 | 1.56 | 0.00 | 0.84 | 16.82 | 279.63 | -19.89 | 57.45 | 0.3881 | -842.0 | -693.7 | |
| 0.00 | 1.48 | 0.00 | 0.79 | 14.07 | 279.84 | -19.68 | 63.83 | 0.3656 | -878.0 | -688.2 | |
| 0.00 | 1.13 | 0.00 | 0.61 | 17.09 | 279.46 | -20.05 | 57.03 | 0.3924 | -630.0 | -479.6 | |
| 0.00 | 0.96 | 0.00 | 0.51 | 14.27 | 279.62 | -19.90 | 63.53 | 0.3701 | -890.0 | -697.4 | |
| 10.69 | 104.62 | 5.72 | 56.14 | 15.42 | 279.41 | -20.11 | 60.96 | 0.3807 | -1036.6 | -165.1 | |
| 0.00 | 1.56 | 0.00 | 0.84 | 16.05 | 279.35 | -20.17 | 59.54 | 0.3861 | -799.0 | -690.8 | |
| 0.00 | 3.13 | 0.00 | 1.67 | 13.81 | 279.50 | -20.02 | 64.80 | 0.3690 | -872.0 | -749.7 | |
| 5.91 | -19.00 | 3.16 | -19.00 | 15.08 | 279.28 | -20.24 | 61.91 | 0.3802 | -972.8 | 999999 | |
| 0.61 | -19.00 | 0.33 | -19.00 | 15.65 | 279.19 | -20.33 | 60.65 | 0.3855 | -704.3 | 999999 | |
| 4.52 | -19.00 | 2.42 | -19.00 | 14.80 | 279.18 | -20.34 | 62.69 | 0.3799 | -900.5 | 999999 | |
| 0.00 | 1.91 | 0.00 | 1.03 | 16.50 | 278.93 | -20.59 | 58.98 | 0.3951 | -765.0 | -594.0 | |
| 1.39 | 1.56 | 0.75 | 0.84 | 16.92 | 278.82 | -20.70 | 58.16 | 0.3998 | -564.9 | -567.0 | |
| 0.00 | 3.04 | 0.00 | 1.63 | 13.82 | 278.81 | -20.71 | 65.44 | 0.3792 | -808.0 | -674.1 | |
| 0.00 | 3.22 | 0.00 | 1.73 | 16.15 | 278.51 | -21.01 | 60.23 | 0.3985 | -573.0 | -441.1 | |
| 4.17 | 7.39 | 2.27 | 4.01 | 16.79 | 277.76 | -21.76 | 59.57 | 0.4133 | 921.8 | 546.4 | |
| 0.00 | 1.65 | 0.00 | 0.90 | 16.22 | 277.83 | -21.69 | 60.77 | 0.4084 | -603.0 | -384.2 | |
| 0.00 | 1.48 | 0.00 | 0.79 | 13.58 | 277.91 | -21.61 | 66.82 | 0.3911 | -775.0 | -625.9 | |
| 0.00 | 1.22 | 0.00 | 0.66 | 15.10 | 277.22 | -22.30 | 63.85 | 0.4098 | 823.0 | 640.8 | |
| 0.00 | 1.13 | 0.00 | 0.61 | 11.04 | 277.41 | -22.11 | 73.48 | 0.3870 | 676.0 | 588.8 | |
| 0.00 | 3.30 | 0.00 | 1.80 | 16.27 | 276.75 | -22.77 | 61.69 | 0.4238 | 993.0 | 843.6 | |
| 0.00 | 1.22 | 0.00 | 0.67 | 16.94 | 276.67 | -22.85 | 60.34 | 0.4293 | 787.0 | 672.9 | |
| 0.00 | 2.78 | 0.00 | 1.53 | 17.73 | 276.43 | -23.09 | 58.93 | 0.4380 | 888.0 | 731.0 | |
| 0.00 | 2.69 | 0.00 | 1.48 | 16.75 | 276.45 | -23.06 | 60.94 | 0.4310 | 893.0 | 786.8 | |
| 0.00 | 1.13 | 0.00 | 0.62 | 16.44 | 276.33 | -23.19 | 61.72 | 0.4308 | 831.0 | 657.3 | |
| 0.00 | 3.48 | 0.00 | 1.91 | 17.20 | 276.16 | -23.36 | 60.28 | 0.4380 | 1005.0 | 902.3 | |
| 0.00 | 2.61 | 0.00 | 1.43 | 16.95 | 276.09 | -23.43 | 60.86 | 0.4373 | 847.0 | 831.3 | |
| 0.00 | 1.22 | 0.00 | 0.67 | 16.74 | 276.02 | -23.50 | 61.37 | 0.4369 | 772.0 | 568.4 | |
| 0.00 | 3.22 | 0.00 | 1.77 | 17.34 | 275.83 | -23.69 | 60.29 | 0.4434 | 921.0 | 743.2 | |
| 0.00 | 2.43 | 0.00 | 1.38 | 21.45 | 275.04 | -24.47 | 53.19 | 0.4836 | 621.0 | 566.0 | |
| 0.00 | 1.13 | 0.00 | 0.61 | 12.65 | 276.21 | -23.31 | 70.30 | 0.4118 | 803.0 | 676.7 | |
| 0.00 | 2.35 | 0.00 | 1.32 | 21.20 | 274.98 | -24.54 | 53.70 | 0.4824 | 909.0 | 795.8 | |
| 0.00 | 5.82 | 0.00 | 3.22 | 17.30 | 275.53 | -23.99 | 60.64 | 0.4472 | 854.0 | 756.5 | |
| 0.00 | 0.87 | 0.00 | 0.49 | 20.79 | 274.88 | -24.64 | 54.53 | 0.4805 | 839.0 | 688.5 | |
| 0.00 | 1.22 | 0.00 | 0.69 | 21.10 | 274.76 | -24.76 | 54.10 | 0.4844 | 792.0 | 637.9 | |
| 0.00 | 0.61 | 0.00 | 0.34 | 17.54 | 275.33 | -24.19 | 60.34 | 0.4516 | 720.0 | 548.0 | |
| 0.00 | 1.39 | 0.00 | 0.77 | 17.05 | 275.36 | -24.16 | 61.31 | 0.4479 | 992.0 | 793.3 | |
| 0.00 | 0.70 | 0.00 | 0.39 | 18.82 | 275.03 | -24.49 | 58.08 | 0.4641 | 629.0 | 487.1 | |
| 0.00 | 1.22 | 0.00 | 0.67 | 17.29 | 275.22 | -24.30 | 60.94 | 0.4513 | 819.0 | 725.3 | |
| 0.00 | 1.22 | 0.00 | 0.67 | 16.92 | 275.17 | -24.35 | 61.73 | 0.4497 | 959.0 | 764.5 | |
| 0.00 | 1.74 | 0.00 | 0.95 | 12.09 | 275.73 | -23.79 | 71.91 | 0.4167 | 832.0 | 654.4 | |
| 0.00 | 1.65 | 0.00 | 0.92 | 17.50 | 275.09 | -24.43 | 60.63 | 0.4545 | 771.0 | 617.9 | |
| 0.00 | 0.78 | 0.00 | 0.43 | 16.37 | 275.21 | -24.31 | 62.83 | 0.4458 | 690.0 | 585.6 | |
| 0.00 | 1.65 | 0.00 | 0.91 | 16.70 | 275.10 | -24.42 | 62.24 | 0.4494 | 709.0 | 684.2 | |
| 0.00 | 0.96 | 0.00 | 0.53 | 17.71 | 274.92 | -24.60 | 60.36 | 0.4581 | 721.0 | 607.8 | |
| 0.00 | 0.96 | 0.00 | 0.53 | 15.19 | 275.19 | -24.33 | 65.35 | 0.4392 | 687.0 | 450.5 | |
| 0.00 | 1.04 | 0.00 | 0.58 | 17.37 | 274.90 | -24.62 | 61.05 | 0.4562 | 723.0 | 636.5 | |
| 1.48 | 2.95 | 0.82 | 1.64 | 17.03 | 274.88 | -24.64 | 61.75 | 0.4544 | 834.0 | 704.5 | |
| 0.00 | 1.39 | 0.00 | 0.77 | 16.46 | 274.96 | -24.56 | 62.86 | 0.4498 | 898.0 | 718.5 | |
| 0.00 | 2.43 | 0.00 | 1.36 | 18.46 | 274.60 | -24.92 | 59.16 | 0.4674 | 734.0 | 548.0 | |
| 0.00 | 2.35 | 0.00 | 1.31 | 17.45 | 274.68 | -24.83 | 61.07 | 0.4597 | 740.0 | 592.5 | |
| 0.00 | 0.96 | 0.00 | 0.53 | 18.12 | 274.48 | -25.04 | 59.93 | 0.4667 | 614.0 | 484.6 | |
| 0.00 | 1.13 | 0.00 | 0.63 | 17.87 | 274.38 | -25.14 | 60.50 | 0.4665 | 603.0 | 462.0 | |
| 0.00 | 0.70 | 0.00 | 0.39 | 16.37 | 274.39 | -25.13 | 63.49 | 0.4572 | 699.0 | 607.2 | |
| 0.00 | 1.13 | 0.00 | 0.63 | 16.98 | 274.24 | -25.28 | 62.39 | 0.4629 | 603.0 | 488.2 | |
| 0.00 | 1.22 | 0.00 | 0.68 | 16.52 | 274.27 | -25.25 | 63.28 | 0.4598 | 697.0 | 580.4 | |
| 0.00 | 2.26 | 0.00 | 1.25 | 15.67 | 274.31 | -25.21 | 64.99 | 0.4543 | 854.0 | 692.7 | |
| 8.08 | 9.30 | 4.52 | 5.20 | 14.78 | 273.20 | -26.32 | 67.60 | 0.4657 | 879.0 | 685.6 | |
| 0.00 | 1.13 | 0.00 | 0.65 | 20.07 | 272.35 | -27.17 | 58.06 | 0.5073 | 650.0 | 429.7 | |
| 0.00 | 1.56 | 0.00 | 0.90 | 17.92 | 271.71 | -27.81 | 62.47 | 0.5026 | 876.0 | 751.9 | |
| 0.00 | 3.39 | 0.00 | 1.95 | 18.19 | 271.45 | -28.07 | 62.16 | 0.5076 | 727.0 | 623.8 | |
| 0.00 | 0.78 | 0.00 | 0.46 | 18.80 | 269.90 | -29.62 | 62.12 | 0.5314 | 744.0 | 692.9 | |
| 0.00 | 2.35 | 0.00 | 1.34 | 12.63 | 270.17 | -29.35 | 73.48 | 0.5009 | 791.0 | 609.1 | |
| 0.00 | 1.74 | 0.00 | 1.01 | 14.02 | 268.74 | -30.78 | 71.42 | 0.5259 | 796.0 | 702.1 | |
| 0.00 | 2.52 | 0.00 | 1.47 | 14.34 | 268.55 | -30.97 | 70.91 | 0.5297 | 754.0 | 548.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
