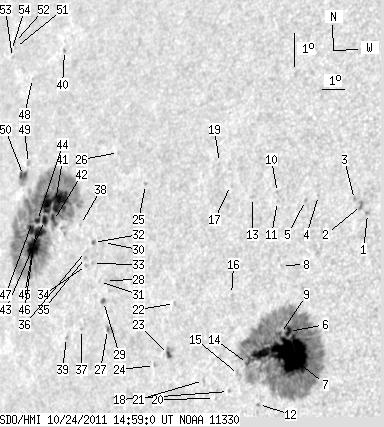

SDO HMI 2011-10-24 14:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 200.01 | 992.04 | 153.46 | 762.53 | 8.15 | 249.23 | -49.74 | 83.77 | 0.7585 | -112.1 | -78.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-24 14:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.00 | 0.00 | 1.31 | 10.78 | 258.01 | -40.96 | 79.44 | 0.6574 | -776.0 | -699.6 | |
| 0.00 | 3.82 | 0.00 | 2.52 | 11.00 | 257.73 | -41.24 | 79.13 | 0.6613 | -875.0 | -694.5 | |
| 0.00 | 1.74 | 0.00 | 1.15 | 11.16 | 257.41 | -41.55 | 78.93 | 0.6655 | -756.0 | -627.8 | |
| 0.00 | 1.13 | 0.00 | 0.77 | 11.20 | 255.92 | -43.04 | 79.06 | 0.6843 | -682.0 | -533.2 | |
| 0.00 | 1.13 | 0.00 | 0.77 | 11.02 | 255.41 | -43.56 | 79.38 | 0.6905 | -612.0 | -475.8 | |
| 4.08 | 508.27 | 2.79 | 347.57 | 7.08 | 255.30 | -43.67 | 85.11 | 0.6901 | -758.6 | -320.3 | |
| 98.79 | -6.00 | 67.40 | -6.00 | 6.39 | 255.34 | -43.63 | 86.11 | 0.6897 | -1021.8 | 999999 | |
| 0.00 | 1.13 | 0.00 | 0.78 | 9.02 | 254.74 | -44.23 | 82.31 | 0.6975 | 449.0 | 342.9 | |
| 1.30 | -6.00 | 0.89 | -6.00 | 7.00 | 254.98 | -43.99 | 85.22 | 0.6941 | -485.9 | 999999 | |
| 0.00 | 1.13 | 0.00 | 0.79 | 11.18 | 254.19 | -44.78 | 79.26 | 0.7056 | -615.0 | -544.1 | |
| 0.00 | 0.87 | 0.00 | 0.60 | 10.91 | 254.24 | -44.73 | 79.64 | 0.7048 | -629.0 | -587.2 | |
| 0.00 | 1.39 | 0.00 | 0.97 | 4.83 | 254.27 | -44.70 | 88.31 | 0.7035 | -536.0 | -467.9 | |
| 0.00 | 1.65 | 0.00 | 1.17 | 10.97 | 253.15 | -45.82 | 79.66 | 0.7180 | -633.0 | -479.5 | |
| 1.39 | -6.00 | 0.97 | -6.00 | 6.02 | 253.69 | -45.28 | 86.60 | 0.7102 | -354.3 | 999999 | |
| 0.00 | 4.17 | 0.00 | 2.94 | 5.67 | 253.34 | -45.63 | 87.08 | 0.7146 | -329.0 | -183.2 | |
| 0.00 | 0.87 | 0.00 | 0.62 | 8.02 | 252.74 | -46.23 | 83.78 | 0.7216 | -596.0 | -503.0 | |
| 0.00 | 0.70 | 0.00 | 0.50 | 11.26 | 252.12 | -46.85 | 79.34 | 0.7305 | -421.0 | -471.6 | |
| 0.00 | 1.13 | 0.00 | 0.80 | 5.13 | 252.96 | -46.01 | 87.81 | 0.7194 | -369.0 | -265.0 | |
| 0.00 | 0.35 | 0.00 | 0.25 | 11.92 | 251.48 | -47.49 | 78.51 | 0.7384 | -448.0 | -447.0 | |
| 0.00 | 0.70 | 0.00 | 0.50 | 4.89 | 252.37 | -46.59 | 88.12 | 0.7266 | 439.0 | 464.6 | |
| 0.00 | 1.39 | 0.00 | 1.01 | 5.39 | 251.84 | -47.13 | 87.40 | 0.7327 | -543.0 | -394.1 | |
| 0.00 | 1.22 | 0.00 | 0.91 | 7.59 | 250.26 | -48.71 | 84.38 | 0.7507 | -625.0 | -581.1 | |
| 2.87 | 6.34 | 2.14 | 4.74 | 6.06 | 250.19 | -48.77 | 86.43 | 0.7517 | -599.7 | -333.6 | |
| 0.00 | 1.56 | 0.00 | 1.18 | 5.69 | 249.60 | -49.37 | 86.90 | 0.7587 | -427.0 | -368.8 | |
| 0.00 | 1.30 | 0.00 | 1.02 | 11.04 | 248.23 | -50.74 | 79.91 | 0.7742 | 669.0 | 588.8 | |
| 0.00 | 1.04 | 0.00 | 0.84 | 11.90 | 246.68 | -52.29 | 78.90 | 0.7912 | 500.0 | 438.4 | |
| 0.52 | 4.69 | 0.41 | 3.72 | 6.61 | 247.24 | -51.73 | 85.62 | 0.7844 | 640.0 | 657.0 | |
| 0.00 | 0.96 | 0.00 | 0.76 | 8.05 | 246.91 | -52.06 | 83.77 | 0.7878 | 537.0 | 505.0 | |
| 2.35 | 2.69 | 1.88 | 2.16 | 7.42 | 246.92 | -52.05 | 84.57 | 0.7877 | 567.2 | 422.0 | |
| 0.00 | 1.30 | 0.00 | 1.05 | 9.17 | 246.59 | -52.38 | 82.35 | 0.7912 | 611.0 | 576.8 | |
| 0.00 | 0.96 | 0.00 | 0.77 | 8.00 | 246.62 | -52.35 | 83.83 | 0.7909 | 425.0 | 411.2 | |
| 1.48 | 1.91 | 1.20 | 1.56 | 9.14 | 246.10 | -52.87 | 82.40 | 0.7964 | 454.6 | 579.0 | |
| 0.00 | 0.96 | 0.00 | 0.78 | 8.51 | 246.17 | -52.80 | 83.19 | 0.7956 | 652.0 | 588.6 | |
| 0.00 | 1.56 | 0.00 | 1.28 | 8.43 | 245.89 | -53.08 | 83.29 | 0.7986 | 516.0 | 413.5 | |
| 0.00 | 1.39 | 0.00 | 1.14 | 8.67 | 245.79 | -53.18 | 83.00 | 0.7996 | 481.0 | 355.5 | |
| 0.00 | 0.96 | 0.00 | 0.79 | 8.84 | 245.75 | -53.22 | 82.77 | 0.8000 | 470.0 | 400.5 | |
| 0.00 | 1.13 | 0.00 | 0.92 | 6.52 | 245.97 | -53.00 | 85.70 | 0.7979 | 628.0 | 557.2 | |
| 0.00 | 0.96 | 0.00 | 0.79 | 9.63 | 245.33 | -53.64 | 81.80 | 0.8044 | 491.0 | 424.6 | |
| 0.00 | 0.96 | 0.00 | 0.79 | 6.23 | 245.26 | -53.71 | 86.04 | 0.8055 | 582.0 | 413.9 | |
| 0.00 | 1.39 | 0.00 | 1.23 | 14.73 | 242.90 | -56.07 | 75.66 | 0.8304 | -380.0 | -303.5 | |
| 38.23 | 406.35 | 32.83 | 353.84 | 10.22 | 243.87 | -55.10 | 81.10 | 0.8191 | 808.7 | 144.6 | |
| 4.43 | -41.00 | 3.80 | -41.00 | 9.65 | 243.91 | -55.06 | 81.80 | 0.8187 | 759.0 | 999999 | |
| 4.78 | -41.00 | 4.15 | -41.00 | 9.61 | 243.44 | -55.53 | 81.84 | 0.8234 | 720.5 | 999999 | |
| 2.43 | -41.00 | 2.13 | -41.00 | 9.58 | 243.07 | -55.90 | 81.88 | 0.8270 | 280.4 | 999999 | |
| 13.21 | -41.00 | 11.56 | -41.00 | 9.28 | 243.09 | -55.88 | 82.24 | 0.8268 | 609.2 | 999999 | |
| 17.98 | -41.00 | 15.76 | -41.00 | 8.77 | 243.05 | -55.92 | 82.87 | 0.8272 | 709.1 | 999999 | |
| 0.87 | -41.00 | 0.77 | -41.00 | 9.54 | 242.81 | -56.16 | 81.94 | 0.8295 | -133.6 | 999999 | |
| 0.00 | 0.78 | 0.00 | 0.72 | 13.77 | 241.46 | -57.51 | 76.91 | 0.8432 | 574.0 | 494.2 | |
| 0.00 | 2.17 | 0.00 | 1.95 | 11.24 | 242.11 | -56.86 | 79.90 | 0.8363 | -441.0 | -308.9 | |
| 5.30 | 11.47 | 4.78 | 10.34 | 10.86 | 241.94 | -57.02 | 80.36 | 0.8378 | -302.3 | -3.3 | |
| 0.00 | 1.04 | 0.00 | 0.99 | 14.62 | 240.11 | -58.86 | 75.99 | 0.8556 | 621.0 | 500.8 | |
| 0.00 | 1.04 | 0.00 | 1.00 | 14.76 | 239.99 | -58.98 | 75.82 | 0.8568 | 435.0 | 409.1 | |
| 0.00 | 1.04 | 0.00 | 0.99 | 14.31 | 240.07 | -58.90 | 76.35 | 0.8559 | 548.0 | 496.5 | |
| 0.00 | 1.30 | 0.00 | 1.25 | 14.51 | 239.92 | -59.05 | 76.12 | 0.8573 | 324.0 | 252.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
