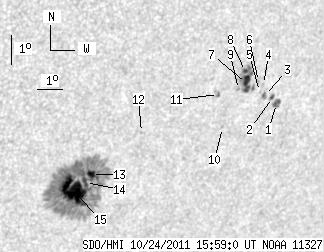

SDO HMI 2011-10-24 15:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 64.79 | 309.09 | 43.95 | 207.60 | -21.64 | 331.96 | 33.54 | 229.58 | 0.6770 | -369.3 | -249.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-24 15:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.13 | 5.39 | 3.68 | 3.87 | -19.70 | 338.33 | 39.91 | 236.48 | 0.7269 | 527.1 | 290.7 | |
| 1.56 | 2.00 | 1.12 | 1.43 | -19.49 | 338.10 | 39.68 | 236.59 | 0.7234 | 583.4 | 591.6 | |
| 1.91 | 2.95 | 1.36 | 2.10 | -19.40 | 337.75 | 39.33 | 236.48 | 0.7194 | 584.9 | 441.4 | |
| 0.00 | 1.04 | 0.00 | 0.74 | -19.03 | 337.60 | 39.18 | 236.84 | 0.7158 | 582.0 | 533.9 | |
| 0.00 | 0.69 | 0.00 | 0.49 | -19.26 | 337.50 | 39.08 | 236.50 | 0.7160 | 243.0 | 419.2 | |
| 0.00 | 1.04 | 0.00 | 0.73 | -18.92 | 337.37 | 38.95 | 236.83 | 0.7127 | 685.0 | 520.0 | |
| 8.86 | 27.19 | 6.20 | 18.98 | -18.96 | 336.89 | 38.47 | 236.48 | 0.7081 | 864.9 | 685.7 | |
| 1.82 | -7.00 | 1.27 | -7.00 | -18.56 | 336.74 | 38.32 | 236.89 | 0.7042 | 987.5 | 999999 | |
| 0.00 | 1.22 | 0.00 | 0.85 | -19.14 | 336.62 | 38.20 | 236.08 | 0.7063 | 777.0 | 716.0 | |
| 0.00 | 0.78 | 0.00 | 0.55 | -20.36 | 336.32 | 37.90 | 234.38 | 0.7108 | 539.0 | 421.2 | |
| 0.00 | 1.39 | 0.00 | 0.96 | -19.26 | 335.85 | 37.43 | 235.43 | 0.6991 | 754.0 | 720.2 | |
| 0.00 | 1.13 | 0.00 | 0.76 | -20.35 | 333.11 | 34.69 | 232.12 | 0.6784 | -614.0 | -452.6 | |
| 4.34 | 264.27 | 2.90 | 176.14 | -21.65 | 331.52 | 33.10 | 229.27 | 0.6721 | -967.1 | -353.2 | |
| 4.08 | -13.00 | 2.72 | -13.00 | -21.91 | 331.36 | 32.94 | 228.83 | 0.6725 | -805.9 | 999999 | |
| 37.09 | -13.00 | 24.70 | -13.00 | -22.16 | 330.96 | 32.54 | 228.21 | 0.6706 | -1084.6 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
