SDO HMI 2011-10-24 15:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 204.77 | 1012.78 | 155.31 | 768.52 | 8.06 | 249.24 | -49.18 | 83.88 | 0.7520 | -168.5 | -68.6 | |
|
previous
or next observation for the same group /

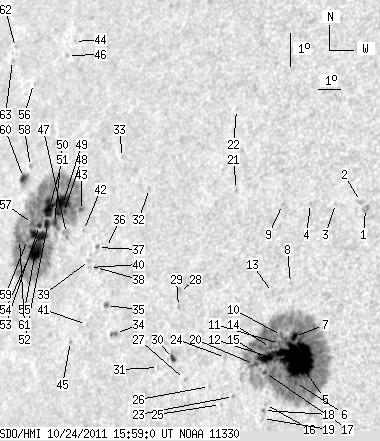

back to the solar disc SDO HMI 2011-10-24 15:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.52 | 0.00 | 2.95 | 11.03 | 257.66 | -40.76 | 79.03 | 0.6551 | -651.0 | -712.1 | |
| 0.00 | 3.13 | 0.00 | 2.05 | 11.23 | 257.42 | -40.99 | 78.76 | 0.6583 | -678.0 | -577.5 | |
| 0.00 | 0.43 | 0.00 | 0.29 | 11.11 | 256.43 | -41.99 | 79.07 | 0.6710 | -444.0 | -408.4 | |
| 0.00 | 0.96 | 0.00 | 0.65 | 11.05 | 255.40 | -43.01 | 79.27 | 0.6838 | -672.0 | -549.3 | |
| 84.53 | 528.27 | 57.00 | 358.03 | 6.40 | 255.49 | -42.93 | 86.10 | 0.6807 | -1124.1 | -326.0 | |
| 1.65 | -5.00 | 1.11 | -5.00 | 5.69 | 255.52 | -42.90 | 87.16 | 0.6805 | -707.3 | 999999 | |
| 4.52 | -5.00 | 3.05 | -5.00 | 7.05 | 255.34 | -43.08 | 85.14 | 0.6826 | -792.8 | 999999 | |
| 0.00 | 0.78 | 0.00 | 0.53 | 8.62 | 254.97 | -43.45 | 82.86 | 0.6876 | 625.0 | 476.6 | |
| 0.00 | 0.87 | 0.00 | 0.60 | 10.95 | 254.24 | -44.17 | 79.54 | 0.6981 | -700.0 | -626.5 | |
| 0.96 | -5.00 | 0.65 | -5.00 | 7.05 | 254.80 | -43.62 | 85.15 | 0.6895 | -557.6 | 999999 | |
| 1.13 | -5.00 | 0.77 | -5.00 | 6.81 | 254.74 | -43.67 | 85.50 | 0.6902 | -504.7 | 999999 | |
| 1.22 | -5.00 | 0.83 | -5.00 | 6.32 | 254.67 | -43.75 | 86.20 | 0.6911 | -661.2 | 999999 | |
| 0.00 | 0.78 | 0.00 | 0.54 | 8.30 | 254.26 | -44.16 | 83.34 | 0.6964 | 206.0 | 187.9 | |
| 1.91 | -5.00 | 1.31 | -5.00 | 6.66 | 254.38 | -44.03 | 85.70 | 0.6947 | -379.7 | 999999 | |
| 10.42 | -5.00 | 7.18 | -5.00 | 6.32 | 254.21 | -44.21 | 86.19 | 0.6969 | -748.2 | 999999 | |
| 0.00 | 0.87 | 0.00 | 0.60 | 4.96 | 254.34 | -44.08 | 88.17 | 0.6957 | -588.0 | -515.1 | |
| 1.22 | -5.00 | 0.84 | -5.00 | 5.90 | 254.21 | -44.21 | 86.79 | 0.6970 | -531.1 | 999999 | |
| 0.00 | 1.22 | 0.00 | 0.84 | 4.77 | 254.28 | -44.14 | 88.43 | 0.6967 | -603.0 | -449.4 | |
| 0.00 | 0.96 | 0.00 | 0.66 | 4.53 | 254.25 | -44.17 | 88.77 | 0.6971 | -499.0 | -412.8 | |
| 2.52 | -5.00 | 1.75 | -5.00 | 6.12 | 253.77 | -44.65 | 86.48 | 0.7024 | -466.8 | 999999 | |
| 0.00 | 1.22 | 0.00 | 0.87 | 11.27 | 252.19 | -46.23 | 79.27 | 0.7231 | -465.0 | -389.8 | |
| 0.00 | 0.43 | 0.00 | 0.31 | 13.66 | 251.63 | -46.79 | 76.06 | 0.7321 | -451.0 | -361.2 | |
| 0.00 | 1.13 | 0.00 | 0.79 | 5.11 | 252.98 | -45.44 | 87.87 | 0.7126 | -348.0 | -315.4 | |
| 0.00 | 2.17 | 0.00 | 1.54 | 6.25 | 252.52 | -45.90 | 86.26 | 0.7178 | -144.0 | -205.1 | |
| 0.00 | 0.61 | 0.00 | 0.43 | 4.84 | 252.44 | -45.98 | 88.23 | 0.7192 | 598.0 | 525.3 | |
| 0.00 | 0.87 | 0.00 | 0.62 | 5.34 | 251.92 | -46.50 | 87.50 | 0.7253 | -516.0 | -467.3 | |
| 0.00 | 1.04 | 0.00 | 0.76 | 5.48 | 250.80 | -47.62 | 87.26 | 0.7385 | -600.0 | -561.8 | |
| 0.00 | 1.91 | 0.00 | 1.41 | 8.08 | 250.23 | -48.19 | 83.73 | 0.7447 | -318.0 | -221.6 | |
| 0.00 | 1.65 | 0.00 | 1.22 | 7.63 | 250.25 | -48.17 | 84.34 | 0.7444 | -667.0 | -553.4 | |
| 2.95 | 6.78 | 2.19 | 5.01 | 6.07 | 250.19 | -48.23 | 86.44 | 0.7454 | -558.2 | -347.3 | |
| 0.00 | 1.22 | 0.00 | 0.91 | 5.76 | 249.59 | -48.83 | 86.83 | 0.7524 | -288.0 | -240.6 | |
| 0.00 | 1.39 | 0.00 | 1.07 | 11.04 | 248.25 | -50.17 | 79.87 | 0.7679 | 690.0 | 583.2 | |
| 0.00 | 0.61 | 0.00 | 0.48 | 11.88 | 246.73 | -51.68 | 78.88 | 0.7848 | 370.0 | 406.0 | |
| 1.30 | 3.56 | 1.02 | 2.79 | 6.63 | 247.47 | -50.95 | 85.61 | 0.7760 | 749.3 | 656.6 | |
| 0.96 | 2.61 | 0.76 | 2.06 | 7.43 | 246.91 | -51.51 | 84.57 | 0.7819 | 704.9 | 532.7 | |
| 0.00 | 0.96 | 0.00 | 0.76 | 9.15 | 246.59 | -51.83 | 82.37 | 0.7854 | 655.0 | 592.2 | |
| 1.39 | 2.00 | 1.12 | 1.61 | 9.12 | 246.15 | -52.27 | 82.42 | 0.7900 | 434.4 | 523.1 | |
| 0.00 | 1.22 | 0.00 | 0.98 | 8.52 | 246.17 | -52.24 | 83.18 | 0.7897 | 604.0 | 540.0 | |
| 0.00 | 1.39 | 0.00 | 1.13 | 8.71 | 245.84 | -52.58 | 82.94 | 0.7933 | 231.0 | 289.4 | |
| 0.00 | 1.13 | 0.00 | 0.91 | 8.50 | 245.88 | -52.54 | 83.20 | 0.7929 | 498.0 | 397.8 | |
| 0.00 | 0.52 | 0.00 | 0.42 | 6.80 | 246.03 | -52.39 | 85.36 | 0.7915 | 625.0 | 564.0 | |
| 0.00 | 1.30 | 0.00 | 1.07 | 9.58 | 245.35 | -53.07 | 81.85 | 0.7985 | 545.0 | 471.9 | |
| 1.48 | 412.12 | 1.22 | 354.21 | 10.16 | 245.11 | -53.30 | 81.12 | 0.8011 | 785.1 | 179.4 | |
| 0.00 | 0.43 | 0.00 | 0.38 | 15.16 | 243.17 | -55.24 | 75.08 | 0.8229 | -589.0 | -560.0 | |
| 0.00 | 1.04 | 0.00 | 0.85 | 6.24 | 245.32 | -53.10 | 86.04 | 0.7991 | 497.0 | 454.8 | |
| 0.00 | 1.13 | 0.00 | 0.98 | 14.71 | 242.96 | -55.45 | 75.63 | 0.8246 | -402.0 | -383.8 | |
| 0.00 | 5.56 | 0.00 | 4.64 | 9.43 | 244.52 | -53.90 | 82.05 | 0.8071 | 785.0 | 603.2 | |
| 2.08 | -43.00 | 1.75 | -43.00 | 10.04 | 244.22 | -54.20 | 81.30 | 0.8102 | 970.8 | 999999 | |
| 17.46 | -43.00 | 14.72 | -43.00 | 10.27 | 244.11 | -54.31 | 81.01 | 0.8114 | 958.4 | 999999 | |
| 2.87 | -43.00 | 2.43 | -43.00 | 9.71 | 243.83 | -54.59 | 81.71 | 0.8141 | 812.8 | 999999 | |
| 13.47 | -43.00 | 11.53 | -43.00 | 10.13 | 243.46 | -54.96 | 81.20 | 0.8178 | 655.2 | 999999 | |
| 4.60 | -43.00 | 3.94 | -43.00 | 9.62 | 243.48 | -54.94 | 81.82 | 0.8175 | 791.7 | 999999 | |
| 2.00 | -43.00 | 1.73 | -43.00 | 9.56 | 243.07 | -55.35 | 81.90 | 0.8216 | 375.2 | 999999 | |
| 12.25 | -43.00 | 10.58 | -43.00 | 9.26 | 243.08 | -55.33 | 82.27 | 0.8214 | 652.1 | 999999 | |
| 19.46 | -43.00 | 16.83 | -43.00 | 8.78 | 243.04 | -55.38 | 82.86 | 0.8219 | 696.6 | 999999 | |
| 0.00 | 0.61 | 0.00 | 0.55 | 13.75 | 241.44 | -56.98 | 76.90 | 0.8383 | 547.0 | 532.4 | |
| 1.30 | -43.00 | 1.14 | -43.00 | 9.60 | 242.68 | -55.74 | 81.86 | 0.8254 | -264.3 | 999999 | |
| 0.00 | 1.39 | 0.00 | 1.23 | 11.28 | 242.11 | -56.31 | 79.84 | 0.8311 | -437.0 | -366.6 | |
| 1.04 | -43.00 | 0.91 | -43.00 | 9.10 | 242.53 | -55.89 | 82.46 | 0.8268 | -240.0 | 999999 | |
| 4.26 | 9.73 | 3.80 | 8.67 | 10.92 | 241.83 | -56.59 | 80.27 | 0.8338 | -380.6 | -113.5 | |
| 5.82 | -43.00 | 5.15 | -43.00 | 9.07 | 242.10 | -56.32 | 82.50 | 0.8310 | -418.2 | 999999 | |
| 0.00 | 1.04 | 0.00 | 0.98 | 14.74 | 239.99 | -58.43 | 75.82 | 0.8519 | 435.0 | 364.8 | |
| 0.00 | 1.22 | 0.00 | 1.14 | 14.34 | 239.99 | -58.43 | 76.28 | 0.8518 | 498.0 | 487.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
