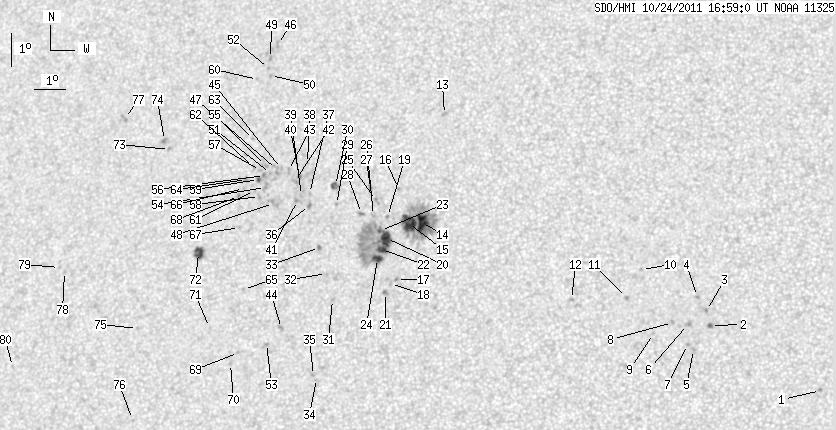

SDO HMI 2011-10-24 16:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 61.41 | 332.69 | 32.69 | 177.74 | 15.73 | 278.65 | -19.22 | 58.66 | 0.3709 | -69.7 | -30.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-24 16:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.48 | 0.00 | 0.74 | 11.09 | 293.19 | -4.68 | 37.51 | 0.1321 | -994.0 | -748.4 | |
| 0.00 | 2.43 | 0.00 | 1.23 | 13.01 | 289.77 | -8.10 | 44.82 | 0.1956 | -1258.0 | -1016.4 | |
| 0.00 | 1.30 | 0.00 | 0.66 | 13.46 | 289.63 | -8.24 | 43.68 | 0.2027 | -1035.0 | -893.3 | |
| 0.00 | 1.48 | 0.00 | 0.75 | 13.88 | 289.34 | -8.53 | 43.23 | 0.2112 | -743.0 | -570.4 | |
| 0.00 | 1.65 | 0.00 | 0.83 | 12.28 | 289.27 | -8.60 | 49.31 | 0.1936 | -1036.0 | -815.7 | |
| 0.00 | 2.69 | 0.00 | 1.36 | 13.03 | 289.06 | -8.81 | 47.11 | 0.2046 | -889.0 | -794.4 | |
| 0.00 | 1.04 | 0.00 | 0.53 | 12.43 | 289.08 | -8.79 | 49.33 | 0.1977 | -843.0 | -622.0 | |
| 0.00 | 1.48 | 0.00 | 0.75 | 13.08 | 288.59 | -9.28 | 48.35 | 0.2111 | -1035.0 | -789.4 | |
| 0.00 | 1.13 | 0.00 | 0.57 | 12.74 | 288.01 | -9.85 | 51.25 | 0.2150 | -842.0 | -611.5 | |
| 0.00 | 0.78 | 0.00 | 0.40 | 14.66 | 287.56 | -10.31 | 46.00 | 0.2418 | -790.0 | -571.6 | |
| 0.00 | 1.91 | 0.00 | 0.97 | 13.81 | 287.13 | -10.74 | 49.85 | 0.2378 | -855.0 | -731.2 | |
| 0.00 | 1.04 | 0.00 | 0.53 | 13.72 | 285.41 | -12.46 | 54.11 | 0.2598 | -649.0 | -387.8 | |
| 0.00 | 2.69 | 0.00 | 1.44 | 19.25 | 280.89 | -16.98 | 48.04 | 0.3723 | -664.0 | -538.8 | |
| 12.60 | 91.90 | 6.65 | 48.54 | 15.94 | 280.46 | -17.40 | 56.31 | 0.3472 | -1305.6 | -468.2 | |
| 17.11 | -14.00 | 9.05 | -14.00 | 15.90 | 280.04 | -17.82 | 57.00 | 0.3526 | -982.6 | 999999 | |
| 0.00 | 1.04 | 0.00 | 0.55 | 16.95 | 279.62 | -18.25 | 55.05 | 0.3671 | -874.0 | -758.1 | |
| 0.00 | 1.56 | 0.00 | 0.82 | 14.20 | 279.80 | -18.06 | 61.67 | 0.3430 | -1079.0 | -872.3 | |
| 0.00 | 0.96 | 0.00 | 0.50 | 14.07 | 279.62 | -18.25 | 62.22 | 0.3448 | -770.0 | -661.6 | |
| 0.00 | 1.48 | 0.00 | 0.78 | 16.09 | 279.34 | -18.53 | 57.45 | 0.3638 | -801.0 | -676.8 | |
| 10.86 | 101.37 | 5.76 | 53.85 | 15.43 | 279.37 | -18.50 | 59.05 | 0.3582 | -1028.7 | -193.5 | |
| 0.00 | 2.43 | 0.00 | 1.28 | 13.80 | 279.48 | -18.39 | 63.12 | 0.3450 | -1026.0 | -830.8 | |
| 4.95 | -20.00 | 2.62 | -20.00 | 15.09 | 279.24 | -18.63 | 60.06 | 0.3575 | -1022.8 | 999999 | |
| 1.56 | -20.00 | 0.83 | -20.00 | 15.66 | 279.15 | -18.71 | 58.74 | 0.3630 | -650.2 | 999999 | |
| 5.47 | -20.00 | 2.90 | -20.00 | 14.81 | 279.13 | -18.73 | 60.88 | 0.3570 | -892.7 | 999999 | |
| 0.00 | 2.78 | 0.00 | 1.48 | 16.57 | 278.93 | -18.94 | 56.85 | 0.3731 | -732.0 | -666.9 | |
| 0.00 | 2.00 | 0.00 | 1.06 | 16.11 | 278.88 | -18.99 | 58.00 | 0.3702 | -720.0 | -553.5 | |
| 0.00 | 3.21 | 0.00 | 1.72 | 16.93 | 278.70 | -19.17 | 56.31 | 0.3792 | -768.0 | -602.2 | |
| 0.00 | 2.69 | 0.00 | 1.44 | 16.16 | 278.48 | -19.39 | 58.37 | 0.3761 | -740.0 | -495.2 | |
| 0.00 | 1.13 | 0.00 | 0.61 | 16.41 | 277.63 | -20.24 | 58.79 | 0.3897 | -606.0 | -418.4 | |
| 0.00 | 5.56 | 0.00 | 3.00 | 16.99 | 277.53 | -20.34 | 57.59 | 0.3954 | 1132.0 | 859.5 | |
| 0.00 | 1.22 | 0.00 | 0.65 | 13.54 | 277.78 | -20.09 | 65.57 | 0.3683 | -850.0 | -608.6 | |
| 0.00 | 1.04 | 0.00 | 0.56 | 14.31 | 277.51 | -20.35 | 63.89 | 0.3770 | 763.0 | 482.0 | |
| 0.00 | 2.26 | 0.00 | 1.21 | 15.09 | 277.21 | -20.66 | 62.32 | 0.3864 | 1048.0 | 847.6 | |
| 0.00 | 0.52 | 0.00 | 0.28 | 11.15 | 277.45 | -20.41 | 72.09 | 0.3612 | 291.0 | 453.8 | |
| 0.00 | 1.13 | 0.00 | 0.60 | 11.24 | 277.35 | -20.52 | 71.93 | 0.3632 | 876.0 | 666.1 | |
| 0.00 | 2.17 | 0.00 | 1.17 | 16.35 | 276.74 | -21.13 | 59.89 | 0.4016 | 1133.0 | 898.4 | |
| 0.00 | 1.30 | 0.00 | 0.71 | 16.72 | 276.70 | -21.17 | 59.12 | 0.4047 | 734.0 | 636.6 | |
| 0.00 | 0.96 | 0.00 | 0.52 | 17.63 | 276.52 | -21.35 | 57.34 | 0.4139 | 777.0 | 622.0 | |
| 0.00 | 1.48 | 0.00 | 0.80 | 16.65 | 276.44 | -21.43 | 59.55 | 0.4078 | 746.0 | 806.8 | |
| 0.00 | 1.22 | 0.00 | 0.66 | 17.22 | 276.30 | -21.57 | 58.44 | 0.4138 | 1096.0 | 999.4 | |
| 0.00 | 3.21 | 0.00 | 1.74 | 16.49 | 276.32 | -21.55 | 60.02 | 0.4083 | 861.0 | 634.5 | |
| 0.00 | 2.08 | 0.00 | 1.13 | 17.07 | 276.15 | -21.72 | 58.94 | 0.4147 | 728.0 | 804.5 | |
| 0.00 | 3.04 | 0.00 | 1.66 | 17.39 | 275.91 | -21.96 | 58.49 | 0.4203 | 925.0 | 777.1 | |
| 0.00 | 2.43 | 0.00 | 1.31 | 12.61 | 276.19 | -21.68 | 69.25 | 0.3871 | 894.0 | 736.4 | |
| 0.00 | 1.22 | 0.00 | 0.66 | 17.45 | 275.67 | -22.20 | 58.62 | 0.4240 | 828.0 | 724.4 | |
| 0.00 | 2.78 | 0.00 | 1.55 | 21.25 | 274.97 | -22.89 | 51.90 | 0.4627 | 786.0 | 645.3 | |
| 0.00 | 4.43 | 0.00 | 2.42 | 17.41 | 275.50 | -22.37 | 58.87 | 0.4260 | 811.0 | 740.0 | |
| 0.00 | 4.69 | 0.00 | 2.56 | 16.37 | 275.53 | -22.34 | 61.06 | 0.4184 | 728.0 | 697.8 | |
| 0.00 | 2.17 | 0.00 | 1.21 | 20.81 | 274.80 | -23.07 | 52.89 | 0.4611 | 946.0 | 701.6 | |
| 0.00 | 1.13 | 0.00 | 0.63 | 20.28 | 274.89 | -22.98 | 53.78 | 0.4558 | 835.0 | 665.4 | |
| 0.00 | 1.04 | 0.00 | 0.57 | 17.28 | 275.32 | -22.55 | 59.32 | 0.4276 | 937.0 | 778.6 | |
| 0.00 | 0.96 | 0.00 | 0.53 | 20.50 | 274.78 | -23.08 | 53.49 | 0.4589 | 861.0 | 765.0 | |
| 0.00 | 1.22 | 0.00 | 0.65 | 12.15 | 275.74 | -22.13 | 70.72 | 0.3918 | 747.0 | 645.2 | |
| 0.00 | 3.74 | 0.00 | 2.04 | 16.85 | 275.20 | -22.67 | 60.35 | 0.4262 | 1063.0 | 812.5 | |
| 0.00 | 2.43 | 0.00 | 1.33 | 17.52 | 275.12 | -22.75 | 59.02 | 0.4320 | 913.0 | 693.2 | |
| 0.00 | 2.17 | 0.00 | 1.19 | 17.22 | 275.12 | -22.75 | 59.66 | 0.4298 | 945.0 | 868.5 | |
| 0.00 | 1.48 | 0.00 | 0.81 | 17.36 | 274.97 | -22.90 | 59.50 | 0.4329 | 795.0 | 641.6 | |
| 0.00 | 1.74 | 0.00 | 0.95 | 16.57 | 275.03 | -22.83 | 61.11 | 0.4266 | 829.0 | 687.7 | |
| 1.30 | 1.91 | 0.71 | 1.05 | 17.09 | 274.94 | -22.93 | 60.11 | 0.4314 | 916.8 | 671.1 | |
| 0.00 | 1.22 | 0.00 | 0.68 | 20.14 | 274.46 | -23.41 | 54.49 | 0.4601 | 677.0 | 542.9 | |
| 0.00 | 0.26 | 0.00 | 0.14 | 16.75 | 274.84 | -23.02 | 60.91 | 0.4304 | 695.0 | 581.0 | |
| 0.00 | 1.91 | 0.00 | 1.05 | 17.45 | 274.72 | -23.15 | 59.56 | 0.4368 | 689.0 | 537.0 | |
| 0.00 | 1.13 | 0.00 | 0.62 | 18.30 | 274.60 | -23.27 | 57.94 | 0.4444 | 776.0 | 650.5 | |
| 0.00 | 2.43 | 0.00 | 1.34 | 17.07 | 274.53 | -23.34 | 60.52 | 0.4369 | 859.0 | 507.2 | |
| 0.00 | 1.13 | 0.00 | 0.61 | 13.74 | 274.82 | -23.04 | 67.58 | 0.4131 | 749.0 | 555.2 | |
| 0.00 | 1.04 | 0.00 | 0.57 | 16.80 | 274.46 | -23.40 | 61.16 | 0.4359 | 758.0 | 545.6 | |
| 0.00 | 1.22 | 0.00 | 0.67 | 15.61 | 274.48 | -23.39 | 63.68 | 0.4284 | 907.0 | 666.8 | |
| 0.00 | 1.56 | 0.00 | 0.86 | 16.55 | 274.33 | -23.54 | 61.80 | 0.4362 | 849.0 | 688.2 | |
| 0.00 | 0.69 | 0.00 | 0.38 | 11.85 | 274.84 | -23.03 | 72.04 | 0.4042 | 802.0 | 705.9 | |
| 0.00 | 1.74 | 0.00 | 0.94 | 11.51 | 274.61 | -23.26 | 72.99 | 0.4064 | 835.0 | 592.5 | |
| 0.00 | 0.78 | 0.00 | 0.43 | 12.56 | 273.81 | -24.06 | 70.99 | 0.4227 | 788.0 | 661.0 | |
| 7.56 | 8.86 | 4.17 | 4.89 | 14.81 | 273.19 | -24.68 | 66.43 | 0.4423 | 947.4 | 737.1 | |
| 0.00 | 2.17 | 0.00 | 1.22 | 17.89 | 271.76 | -26.11 | 61.25 | 0.4796 | 688.0 | 681.4 | |
| 0.00 | 2.26 | 0.00 | 1.28 | 18.16 | 271.54 | -26.33 | 60.91 | 0.4842 | 732.0 | 690.1 | |
| 0.00 | 1.30 | 0.00 | 0.73 | 12.44 | 271.39 | -26.48 | 72.58 | 0.4582 | 707.0 | 559.3 | |
| 0.00 | 0.26 | 0.00 | 0.14 | 9.71 | 271.48 | -26.38 | 78.48 | 0.4489 | 609.0 | 549.7 | |
| 0.00 | 2.87 | 0.00 | 1.65 | 18.78 | 270.02 | -27.85 | 60.93 | 0.5080 | 752.0 | 697.1 | |
| 0.00 | 1.22 | 0.00 | 0.70 | 14.05 | 268.65 | -29.21 | 70.65 | 0.5038 | 776.0 | 605.1 | |
| 0.00 | 1.04 | 0.00 | 0.60 | 14.16 | 268.46 | -29.40 | 70.52 | 0.5070 | 730.0 | 591.4 | |
| 0.00 | 1.22 | 0.00 | 0.70 | 11.12 | 267.20 | -30.67 | 76.86 | 0.5160 | -401.0 | -251.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
