SDO HMI 2011-10-24 17:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 13.91 | 0.00 | 7.76 | 18.47 | 321.80 | 24.48 | 301.36 | 0.4646 | 515.2 | 416.2 | |
|
previous
or next observation for the same group /

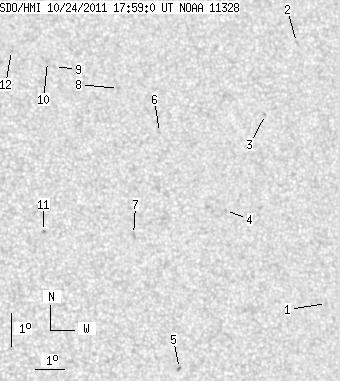

back to the solar disc SDO HMI 2011-10-24 17:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.22 | 0.00 | 0.70 | 14.27 | 327.20 | 29.88 | 289.44 | 0.5141 | 668.0 | 478.8 | |
| 0.00 | 0.96 | 0.00 | 0.57 | 22.28 | 327.65 | 30.33 | 303.24 | 0.5609 | -578.0 | -378.9 | |
| 0.00 | 0.78 | 0.00 | 0.45 | 20.10 | 326.03 | 28.71 | 300.79 | 0.5273 | 703.0 | 580.9 | |
| 0.00 | 0.61 | 0.00 | 0.34 | 17.22 | 324.09 | 26.78 | 296.96 | 0.4847 | 771.0 | 619.3 | |
| 0.00 | 1.30 | 0.00 | 0.71 | 12.51 | 321.91 | 24.59 | 288.58 | 0.4305 | 914.0 | 814.0 | |
| 0.00 | 1.22 | 0.00 | 0.68 | 19.69 | 322.18 | 24.87 | 303.23 | 0.4753 | 662.0 | 471.1 | |
| 0.00 | 2.52 | 0.00 | 1.39 | 16.61 | 320.83 | 23.52 | 298.35 | 0.4363 | 818.0 | 629.4 | |
| 0.00 | 1.13 | 0.00 | 0.63 | 21.10 | 320.99 | 23.67 | 307.00 | 0.4710 | 695.0 | 546.0 | |
| 0.00 | 0.78 | 0.00 | 0.43 | 21.85 | 318.89 | 21.58 | 310.71 | 0.4522 | 654.0 | 433.1 | |
| 0.00 | 1.13 | 0.00 | 0.63 | 22.01 | 318.68 | 21.36 | 311.27 | 0.4511 | 887.0 | 656.8 | |
| 0.00 | 1.22 | 0.00 | 0.66 | 16.80 | 317.83 | 20.52 | 301.78 | 0.3964 | -775.0 | -652.7 | |
| 0.00 | 1.04 | 0.00 | 0.57 | 22.39 | 317.49 | 20.18 | 313.44 | 0.4411 | 763.0 | 605.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
