SDO HMI 2011-10-24 18:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 55.60 | 289.70 | 38.24 | 198.42 | -21.63 | 331.89 | 35.13 | 230.82 | 0.6922 | -438.3 | -251.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-24 18:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

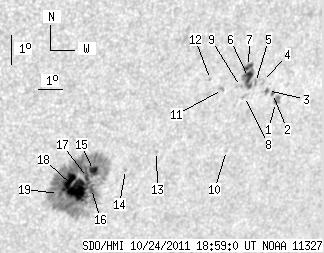

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.96 | 4.43 | 0.71 | 3.27 | -19.77 | 338.33 | 41.56 | 237.38 | 0.7436 | 475.6 | 557.1 | |
| 1.48 | 2.00 | 1.08 | 1.47 | -19.46 | 338.10 | 41.34 | 237.62 | 0.7398 | 464.5 | 425.2 | |
| 1.13 | 2.69 | 0.82 | 1.96 | -19.34 | 337.86 | 41.09 | 237.61 | 0.7367 | 544.4 | 515.4 | |
| 0.00 | 1.74 | 0.00 | 1.26 | -19.03 | 337.55 | 40.79 | 237.81 | 0.7320 | 550.0 | 573.4 | |
| 0.00 | 2.35 | 0.00 | 1.69 | -19.05 | 337.26 | 40.50 | 237.63 | 0.7292 | 706.0 | 535.1 | |
| 4.69 | 19.20 | 3.36 | 13.74 | -18.87 | 336.92 | 40.16 | 237.65 | 0.7247 | 904.3 | 731.2 | |
| 3.74 | -6.00 | 2.66 | -6.00 | -18.50 | 336.82 | 40.05 | 238.03 | 0.7217 | 835.1 | 999999 | |
| 0.00 | 2.43 | 0.00 | 1.75 | -19.48 | 336.94 | 40.17 | 236.90 | 0.7283 | 525.0 | 413.9 | |
| 0.00 | 1.04 | 0.00 | 0.75 | -19.14 | 336.67 | 39.91 | 237.15 | 0.7237 | 626.0 | 552.7 | |
| 0.00 | 1.22 | 0.00 | 0.89 | -21.24 | 336.74 | 39.98 | 234.66 | 0.7364 | 542.0 | 363.7 | |
| 0.00 | 1.91 | 0.00 | 1.35 | -19.20 | 335.95 | 39.18 | 236.64 | 0.7167 | 839.0 | 703.4 | |
| 0.00 | 0.87 | 0.00 | 0.61 | -18.84 | 335.36 | 38.60 | 236.72 | 0.7086 | 676.0 | 543.6 | |
| 0.00 | 0.61 | 0.00 | 0.42 | -21.11 | 333.83 | 37.06 | 232.91 | 0.7072 | -517.0 | -445.6 | |
| 0.00 | 1.39 | 0.00 | 0.96 | -21.64 | 332.75 | 35.98 | 231.50 | 0.7002 | -483.0 | -394.0 | |
| 5.73 | 247.82 | 3.90 | 168.30 | -21.61 | 331.47 | 34.71 | 230.60 | 0.6875 | -885.2 | -374.7 | |
| 1.30 | -15.00 | 0.89 | -15.00 | -22.21 | 331.57 | 34.80 | 229.94 | 0.6927 | -346.7 | 999999 | |
| 2.26 | -15.00 | 1.54 | -15.00 | -21.83 | 331.30 | 34.54 | 230.20 | 0.6874 | -786.5 | 999999 | |
| 33.62 | -15.00 | 22.81 | -15.00 | -22.14 | 330.88 | 34.12 | 229.50 | 0.6856 | -1092.1 | 999999 | |
| 0.69 | -15.00 | 0.47 | -15.00 | -22.31 | 330.31 | 33.54 | 228.84 | 0.6813 | -865.6 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
