SDO HMI 2011-10-24 19:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 10.07 | 0.00 | 6.31 | 23.94 | 330.22 | 34.01 | 303.39 | 0.6145 | -653.9 | -529.0 | |
|
previous
or next observation for the same group /

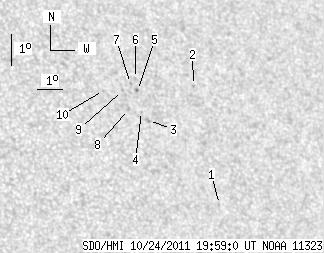

back to the solar disc SDO HMI 2011-10-24 19:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.69 | 0.00 | 0.44 | 20.70 | 332.19 | 35.98 | 297.37 | 0.6212 | -618.0 | -463.8 | |
| 0.00 | 1.04 | 0.00 | 0.67 | 24.44 | 332.29 | 36.08 | 302.87 | 0.6406 | -693.0 | -576.2 | |
| 0.00 | 1.91 | 0.00 | 1.19 | 23.43 | 330.18 | 33.97 | 302.63 | 0.6110 | -720.0 | -536.9 | |
| 0.00 | 0.43 | 0.00 | 0.27 | 23.73 | 329.99 | 33.78 | 303.19 | 0.6104 | -566.0 | -485.2 | |
| 0.00 | 1.13 | 0.00 | 0.71 | 24.39 | 330.03 | 33.82 | 304.15 | 0.6148 | -736.0 | -626.1 | |
| 0.00 | 1.22 | 0.00 | 0.76 | 24.77 | 330.07 | 33.86 | 304.69 | 0.6175 | -452.0 | -293.7 | |
| 0.00 | 0.96 | 0.00 | 0.60 | 24.62 | 329.83 | 33.61 | 304.62 | 0.6138 | -539.0 | -496.0 | |
| 0.00 | 1.04 | 0.00 | 0.65 | 23.81 | 329.50 | 33.29 | 303.62 | 0.6054 | -874.0 | -703.2 | |
| 0.00 | 0.69 | 0.00 | 0.43 | 24.42 | 329.45 | 33.24 | 304.56 | 0.6083 | -630.0 | -528.8 | |
| 0.00 | 0.96 | 0.00 | 0.59 | 24.45 | 328.72 | 32.51 | 305.10 | 0.6002 | -711.0 | -558.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
