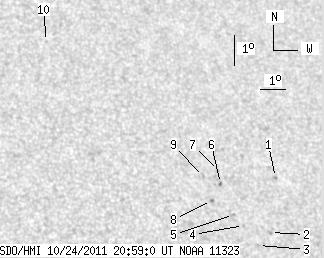

SDO HMI 2011-10-24 20:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 11.56 | 0.00 | 7.30 | 24.14 | 330.10 | 34.44 | 303.44 | 0.6213 | -561.7 | -495.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-24 20:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.30 | 0.00 | 0.84 | 24.45 | 332.23 | 36.57 | 302.61 | 0.6462 | -794.0 | -629.3 | |
| 0.00 | 1.48 | 0.00 | 0.94 | 22.74 | 331.48 | 35.82 | 300.54 | 0.6290 | -650.0 | -558.4 | |
| 0.00 | 1.04 | 0.00 | 0.66 | 22.36 | 330.89 | 35.23 | 300.29 | 0.6201 | -760.0 | -621.2 | |
| 0.00 | 0.87 | 0.00 | 0.55 | 23.01 | 330.49 | 34.83 | 301.49 | 0.6187 | -652.0 | -538.9 | |
| 0.00 | 0.96 | 0.00 | 0.60 | 23.37 | 330.20 | 34.54 | 302.20 | 0.6173 | -722.0 | -586.1 | |
| 0.00 | 1.30 | 0.00 | 0.82 | 24.37 | 329.99 | 34.33 | 303.80 | 0.6205 | -627.0 | -561.1 | |
| 0.00 | 1.22 | 0.00 | 0.77 | 24.78 | 330.04 | 34.38 | 304.37 | 0.6234 | -429.0 | -299.9 | |
| 0.00 | 1.13 | 0.00 | 0.71 | 23.85 | 329.48 | 33.82 | 303.35 | 0.6116 | -830.0 | -703.8 | |
| 0.00 | 1.48 | 0.00 | 0.93 | 24.62 | 329.39 | 33.73 | 304.54 | 0.6152 | -700.0 | -537.4 | |
| 0.00 | 0.78 | 0.00 | 0.48 | 29.19 | 324.65 | 28.99 | 314.64 | 0.5968 | 547.0 | 382.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
