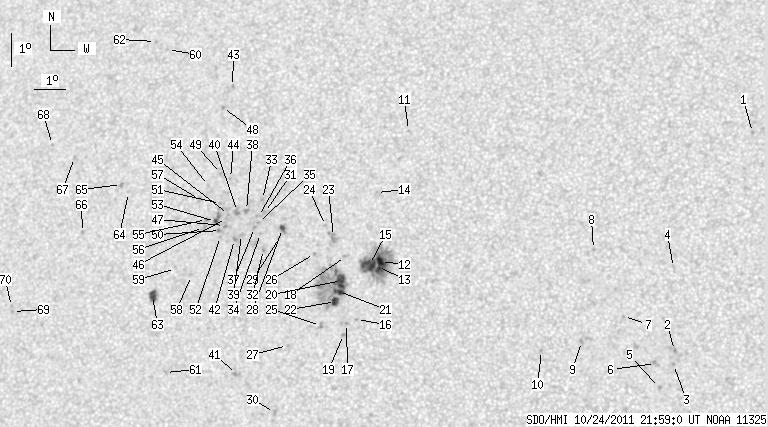

SDO HMI 2011-10-24 21:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 42.30 | 285.05 | 22.24 | 149.97 | 15.83 | 278.71 | -16.39 | 54.37 | 0.3336 | 5.3 | -141.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-24 21:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.87 | 0.00 | 0.45 | 20.14 | 292.12 | -2.99 | 10.68 | 0.2651 | -827.0 | -624.6 | |
| 0.00 | 2.09 | 0.00 | 1.05 | 13.48 | 289.83 | -5.28 | 31.52 | 0.1720 | -1040.0 | -778.0 | |
| 0.00 | 1.04 | 0.00 | 0.52 | 13.06 | 289.81 | -5.30 | 32.99 | 0.1661 | -1069.0 | -867.3 | |
| 0.00 | 1.82 | 0.00 | 0.92 | 15.99 | 289.73 | -5.37 | 25.45 | 0.2104 | -483.0 | -461.4 | |
| 0.00 | 1.56 | 0.00 | 0.78 | 12.37 | 289.39 | -5.72 | 37.52 | 0.1605 | -965.0 | -801.7 | |
| 0.00 | 3.04 | 0.00 | 1.53 | 13.09 | 289.25 | -5.85 | 35.53 | 0.1718 | -923.0 | -742.0 | |
| 0.00 | 0.52 | 0.00 | 0.26 | 14.49 | 288.22 | -6.88 | 35.34 | 0.2015 | -770.0 | -584.2 | |
| 0.00 | 1.30 | 0.00 | 0.66 | 16.51 | 287.22 | -7.89 | 33.55 | 0.2392 | -828.0 | -632.1 | |
| 0.00 | 2.35 | 0.00 | 1.19 | 13.72 | 286.95 | -8.16 | 42.47 | 0.2051 | -894.0 | -750.7 | |
| 0.00 | 1.04 | 0.00 | 0.53 | 13.44 | 285.72 | -9.39 | 47.39 | 0.2165 | -910.0 | -696.8 | |
| 0.00 | 1.04 | 0.00 | 0.55 | 20.06 | 281.07 | -14.04 | 41.19 | 0.3475 | -737.0 | -558.8 | |
| 4.17 | 78.10 | 2.17 | 40.69 | 16.03 | 280.50 | -14.61 | 51.58 | 0.3108 | -1346.5 | -660.6 | |
| 0.52 | -12.00 | 0.27 | -12.00 | 15.88 | 280.41 | -14.69 | 52.14 | 0.3104 | -1321.3 | 999999 | |
| 0.00 | 0.87 | 0.00 | 0.46 | 18.13 | 280.20 | -14.91 | 46.98 | 0.3359 | -779.0 | -667.7 | |
| 9.82 | -12.00 | 5.12 | -12.00 | 15.94 | 280.15 | -14.95 | 52.46 | 0.3143 | -1074.9 | 999999 | |
| 0.00 | 1.30 | 0.00 | 0.68 | 14.26 | 279.86 | -15.25 | 57.55 | 0.3034 | -921.0 | -670.9 | |
| 0.00 | 1.04 | 0.00 | 0.54 | 14.14 | 279.55 | -15.56 | 58.40 | 0.3067 | -942.0 | -816.8 | |
| 0.00 | 2.26 | 0.00 | 1.18 | 16.16 | 279.36 | -15.74 | 53.22 | 0.3268 | -775.0 | -606.7 | |
| 0.00 | 1.74 | 0.00 | 0.90 | 13.80 | 279.48 | -15.63 | 59.48 | 0.3051 | -981.0 | -787.5 | |
| 8.95 | 88.96 | 4.68 | 46.56 | 15.43 | 279.29 | -15.81 | 55.23 | 0.3212 | -1037.7 | -290.6 | |
| 4.60 | -20.00 | 2.41 | -20.00 | 15.10 | 279.22 | -15.88 | 56.24 | 0.3193 | -1028.2 | 999999 | |
| 4.60 | -20.00 | 2.40 | -20.00 | 14.79 | 279.15 | -15.96 | 57.18 | 0.3177 | -1029.5 | 999999 | |
| 0.00 | 6.52 | 0.00 | 3.43 | 16.76 | 278.92 | -16.18 | 52.44 | 0.3382 | -715.0 | -695.0 | |
| 0.00 | 0.43 | 0.00 | 0.23 | 17.09 | 278.63 | -16.47 | 52.10 | 0.3450 | -734.0 | -581.6 | |
| 0.00 | 3.30 | 0.00 | 1.72 | 14.05 | 278.72 | -16.38 | 59.85 | 0.3178 | -813.0 | -661.3 | |
| 0.00 | 1.30 | 0.00 | 0.69 | 16.23 | 278.35 | -16.75 | 54.64 | 0.3409 | -784.0 | -514.3 | |
| 0.00 | 0.96 | 0.00 | 0.50 | 13.43 | 277.71 | -17.39 | 62.94 | 0.3280 | -636.0 | -405.1 | |
| 2.09 | 3.82 | 1.11 | 2.03 | 16.96 | 277.24 | -17.86 | 54.48 | 0.3621 | 1008.4 | 473.2 | |
| 0.00 | 1.30 | 0.00 | 0.69 | 16.68 | 277.17 | -17.93 | 55.23 | 0.3606 | 400.0 | 438.4 | |
| 0.00 | 2.69 | 0.00 | 1.41 | 11.40 | 277.44 | -17.67 | 69.09 | 0.3199 | 957.0 | 736.4 | |
| 0.00 | 1.91 | 0.00 | 1.02 | 17.43 | 276.60 | -18.50 | 54.28 | 0.3746 | 957.0 | 749.9 | |
| 0.00 | 2.26 | 0.00 | 1.20 | 16.31 | 276.69 | -18.42 | 56.80 | 0.3641 | 1129.0 | 820.5 | |
| 0.00 | 1.22 | 0.00 | 0.65 | 17.83 | 276.50 | -18.61 | 53.54 | 0.3794 | 911.0 | 651.4 | |
| 0.00 | 0.96 | 0.00 | 0.51 | 16.79 | 276.54 | -18.57 | 55.85 | 0.3700 | 951.0 | 734.0 | |
| 0.00 | 1.04 | 0.00 | 0.56 | 17.12 | 276.44 | -18.67 | 55.21 | 0.3741 | 1026.0 | 850.1 | |
| 0.00 | 2.09 | 0.00 | 1.11 | 17.30 | 276.42 | -18.69 | 54.81 | 0.3759 | 898.0 | 830.3 | |
| 0.00 | 1.13 | 0.00 | 0.60 | 16.97 | 276.32 | -18.78 | 55.72 | 0.3743 | 993.0 | 787.2 | |
| 0.00 | 2.61 | 0.00 | 1.40 | 17.48 | 276.00 | -19.10 | 54.97 | 0.3828 | 1043.0 | 813.6 | |
| 0.00 | 2.09 | 0.00 | 1.11 | 16.74 | 275.92 | -19.19 | 56.76 | 0.3780 | 901.0 | 726.3 | |
| 0.00 | 3.56 | 0.00 | 1.91 | 17.44 | 275.71 | -19.40 | 55.44 | 0.3864 | 968.0 | 889.7 | |
| 0.00 | 3.21 | 0.00 | 1.70 | 12.51 | 276.14 | -18.97 | 67.19 | 0.3458 | 1012.0 | 807.5 | |
| 0.00 | 1.74 | 0.00 | 0.93 | 16.58 | 275.70 | -19.40 | 57.39 | 0.3796 | 936.0 | 844.8 | |
| 0.00 | 1.56 | 0.00 | 0.86 | 21.27 | 275.06 | -20.05 | 48.43 | 0.4288 | 890.0 | 736.8 | |
| 0.00 | 0.70 | 0.00 | 0.38 | 18.44 | 275.36 | -19.74 | 53.70 | 0.3994 | 887.0 | 732.0 | |
| 0.00 | 1.04 | 0.00 | 0.56 | 17.34 | 275.42 | -19.68 | 56.02 | 0.3894 | 1034.0 | 806.4 | |
| 0.00 | 0.96 | 0.00 | 0.51 | 17.21 | 275.37 | -19.73 | 56.36 | 0.3891 | 884.0 | 699.4 | |
| 0.00 | 1.82 | 0.00 | 0.98 | 17.00 | 275.33 | -19.78 | 56.89 | 0.3880 | 1052.0 | 921.8 | |
| 0.00 | 1.13 | 0.00 | 0.62 | 20.61 | 274.81 | -20.29 | 50.00 | 0.4256 | 939.0 | 764.0 | |
| 0.00 | 1.48 | 0.00 | 0.80 | 18.58 | 275.04 | -20.06 | 53.79 | 0.4047 | 730.0 | 638.4 | |
| 0.00 | 2.35 | 0.00 | 1.26 | 16.84 | 275.21 | -19.89 | 57.39 | 0.3883 | 890.0 | 784.6 | |
| 0.00 | 1.04 | 0.00 | 0.56 | 17.66 | 275.12 | -19.99 | 55.67 | 0.3961 | 504.0 | 499.6 | |
| 0.00 | 0.87 | 0.00 | 0.47 | 16.66 | 275.23 | -19.87 | 57.78 | 0.3866 | 832.0 | 580.0 | |
| 1.56 | 9.04 | 0.84 | 4.86 | 17.11 | 275.02 | -20.09 | 57.01 | 0.3930 | 885.0 | 711.1 | |
| 0.00 | 1.13 | 0.00 | 0.61 | 18.20 | 274.66 | -20.45 | 55.07 | 0.4066 | 703.0 | 585.2 | |
| 0.00 | 1.30 | 0.00 | 0.70 | 17.16 | 274.71 | -20.39 | 57.26 | 0.3976 | 833.0 | 688.7 | |
| 0.00 | 2.35 | 0.00 | 1.26 | 16.92 | 274.64 | -20.47 | 57.89 | 0.3966 | 676.0 | 573.5 | |
| 0.00 | 2.09 | 0.00 | 1.13 | 17.77 | 274.41 | -20.70 | 56.30 | 0.4063 | 651.0 | 564.2 | |
| 0.00 | 1.13 | 0.00 | 0.61 | 15.45 | 274.40 | -20.70 | 61.50 | 0.3894 | 775.0 | 664.2 | |
| 0.00 | 1.04 | 0.00 | 0.56 | 15.64 | 273.85 | -21.25 | 61.62 | 0.3985 | 266.0 | 315.8 | |
| 0.00 | 0.52 | 0.00 | 0.29 | 22.35 | 272.65 | -22.46 | 49.42 | 0.4671 | 752.0 | 574.5 | |
| 0.00 | 1.74 | 0.00 | 0.93 | 12.50 | 273.83 | -21.28 | 69.21 | 0.3806 | 749.0 | 566.9 | |
| 0.00 | 1.04 | 0.00 | 0.59 | 22.59 | 272.19 | -22.92 | 49.53 | 0.4746 | 686.0 | 526.6 | |
| 5.99 | 7.47 | 3.24 | 4.04 | 14.80 | 273.18 | -21.93 | 64.19 | 0.4028 | 929.9 | 842.9 | |
| 0.00 | 0.78 | 0.00 | 0.43 | 17.90 | 271.99 | -23.11 | 58.58 | 0.4396 | 579.0 | 583.9 | |
| 0.00 | 2.09 | 0.00 | 1.15 | 18.14 | 271.72 | -23.39 | 58.37 | 0.4449 | 860.0 | 698.8 | |
| 0.00 | 1.30 | 0.00 | 0.72 | 16.63 | 270.60 | -24.51 | 62.45 | 0.4502 | 683.0 | 541.7 | |
| 0.00 | 1.22 | 0.00 | 0.68 | 18.91 | 269.98 | -25.12 | 58.47 | 0.4732 | 805.0 | 711.6 | |
| 0.00 | 0.87 | 0.00 | 0.49 | 19.28 | 269.15 | -25.96 | 58.50 | 0.4865 | 757.0 | 639.8 | |
| 0.00 | 0.87 | 0.00 | 0.49 | 14.15 | 268.52 | -26.58 | 69.03 | 0.4666 | 814.0 | 694.1 | |
| 0.00 | 1.04 | 0.00 | 0.58 | 14.30 | 268.47 | -26.64 | 68.76 | 0.4681 | 689.0 | 550.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
