SDO HMI 2011-10-24 21:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 7.03 | 0.00 | 4.03 | 16.23 | 323.28 | 28.17 | 294.53 | 0.5000 | 420.0 | 356.3 | |
|
previous
or next observation for the same group /

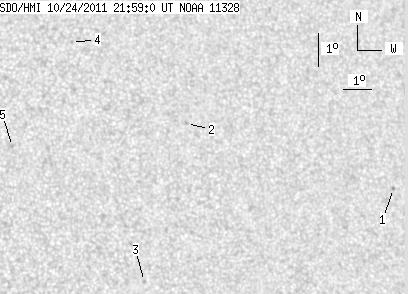

back to the solar disc SDO HMI 2011-10-24 21:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.30 | 0.00 | 0.81 | 14.94 | 331.21 | 36.11 | 288.20 | 0.6016 | 711.0 | 607.1 | |
| 0.00 | 1.65 | 0.00 | 0.95 | 17.25 | 324.00 | 28.90 | 295.58 | 0.5137 | 819.0 | 663.5 | |
| 0.00 | 1.48 | 0.00 | 0.82 | 12.55 | 321.87 | 26.77 | 287.51 | 0.4629 | 795.0 | 540.3 | |
| 0.00 | 1.30 | 0.00 | 0.74 | 19.89 | 320.39 | 25.28 | 303.22 | 0.4821 | 606.0 | 492.4 | |
| 0.00 | 1.30 | 0.00 | 0.71 | 16.78 | 317.90 | 22.79 | 299.39 | 0.4275 | -831.0 | -689.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
