SDO HMI 2011-10-24 21:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 187.50 | 1062.94 | 133.16 | 755.80 | 8.04 | 249.43 | -45.68 | 83.89 | 0.7112 | -129.2 | -75.2 | |
|
previous
or next observation for the same group /

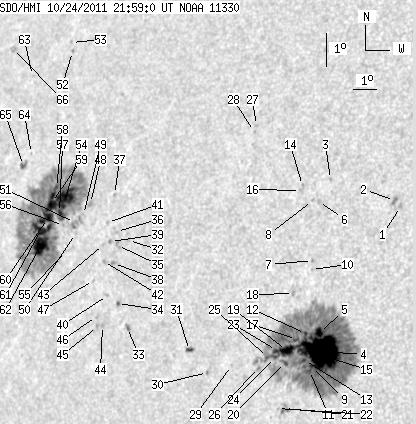

back to the solar disc SDO HMI 2011-10-24 21:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.78 | 0.00 | 1.73 | 10.87 | 258.09 | -37.02 | 78.72 | 0.6052 | -780.0 | -544.7 | |
| 0.00 | 2.69 | 0.00 | 1.68 | 11.04 | 257.83 | -37.27 | 78.49 | 0.6089 | -874.0 | -776.7 | |
| 0.00 | 1.04 | 0.00 | 0.67 | 11.53 | 255.26 | -39.85 | 78.12 | 0.6439 | -553.0 | -473.7 | |
| 73.76 | 561.57 | 47.23 | 361.55 | 6.39 | 255.58 | -39.53 | 86.16 | 0.6362 | -1344.7 | -382.2 | |
| 5.21 | -4.00 | 3.35 | -4.00 | 6.95 | 255.45 | -39.66 | 85.27 | 0.6380 | -915.6 | 999999 | |
| 0.00 | 1.56 | 0.00 | 1.01 | 10.85 | 254.89 | -40.21 | 79.23 | 0.6478 | -670.0 | -592.1 | |
| 0.00 | 1.13 | 0.00 | 0.73 | 9.07 | 254.92 | -40.19 | 81.97 | 0.6458 | 701.0 | 592.9 | |
| 0.00 | 0.96 | 0.00 | 0.62 | 10.86 | 254.65 | -40.45 | 79.24 | 0.6509 | -630.0 | -541.0 | |
| 1.13 | -4.00 | 0.73 | -4.00 | 5.92 | 255.23 | -39.88 | 86.89 | 0.6410 | -781.8 | 999999 | |
| 0.00 | 0.61 | 0.00 | 0.39 | 8.80 | 254.92 | -40.19 | 82.39 | 0.6457 | 508.0 | 400.0 | |
| 0.78 | -4.00 | 0.50 | -4.00 | 5.79 | 255.16 | -39.94 | 87.08 | 0.6419 | -549.9 | 999999 | |
| 1.48 | -4.00 | 0.95 | -4.00 | 6.89 | 254.90 | -40.20 | 85.37 | 0.6452 | -646.9 | 999999 | |
| 1.04 | -4.00 | 0.67 | -4.00 | 6.08 | 254.94 | -40.17 | 86.63 | 0.6448 | -560.8 | 999999 | |
| 0.00 | 1.39 | 0.00 | 0.91 | 11.29 | 254.18 | -40.93 | 78.65 | 0.6576 | -737.0 | -539.9 | |
| 0.87 | -4.00 | 0.56 | -4.00 | 6.40 | 254.79 | -40.31 | 86.13 | 0.6467 | -752.7 | 999999 | |
| 0.00 | 1.74 | 0.00 | 1.14 | 11.13 | 254.12 | -40.98 | 78.90 | 0.6581 | -679.0 | -596.3 | |
| 2.00 | -4.00 | 1.30 | -4.00 | 6.69 | 254.57 | -40.54 | 85.68 | 0.6497 | -562.7 | 999999 | |
| 0.00 | 2.17 | 0.00 | 1.42 | 8.05 | 254.30 | -40.81 | 83.59 | 0.6535 | -610.0 | -525.6 | |
| 10.34 | -4.00 | 6.75 | -4.00 | 6.34 | 254.20 | -40.90 | 86.22 | 0.6545 | -885.4 | 999999 | |
| 2.09 | -4.00 | 1.36 | -4.00 | 5.98 | 254.20 | -40.91 | 86.77 | 0.6546 | -613.3 | 999999 | |
| 0.00 | 4.95 | 0.00 | 3.23 | 4.61 | 254.27 | -40.84 | 88.87 | 0.6542 | -627.0 | -645.8 | |
| 0.00 | 0.87 | 0.00 | 0.57 | 4.59 | 253.99 | -41.11 | 88.88 | 0.6579 | -391.0 | -303.6 | |
| 1.48 | -4.00 | 0.97 | -4.00 | 6.31 | 253.81 | -41.30 | 86.25 | 0.6597 | -623.5 | 999999 | |
| 1.13 | -4.00 | 0.74 | -4.00 | 6.10 | 253.79 | -41.32 | 86.57 | 0.6600 | -521.9 | 999999 | |
| 1.13 | -4.00 | 0.75 | -4.00 | 6.09 | 253.47 | -41.64 | 86.59 | 0.6642 | -445.8 | 999999 | |
| 0.00 | 1.39 | 0.00 | 0.92 | 5.77 | 253.14 | -41.97 | 87.06 | 0.6686 | -197.0 | -54.5 | |
| 0.00 | 0.96 | 0.00 | 0.65 | 12.97 | 251.96 | -43.15 | 76.49 | 0.6878 | -625.0 | -547.7 | |
| 0.00 | 1.22 | 0.00 | 0.83 | 12.78 | 251.91 | -43.19 | 76.76 | 0.6881 | -550.0 | -494.7 | |
| 0.00 | 1.04 | 0.00 | 0.70 | 5.76 | 252.03 | -43.07 | 87.03 | 0.6827 | -582.0 | -460.2 | |
| 0.00 | 1.39 | 0.00 | 0.95 | 5.49 | 251.06 | -44.04 | 87.39 | 0.6951 | -504.0 | -465.1 | |
| 2.43 | 3.39 | 1.69 | 2.36 | 6.10 | 250.24 | -44.86 | 86.49 | 0.7051 | -676.5 | -548.2 | |
| 0.00 | 1.30 | 0.00 | 0.96 | 9.20 | 247.13 | -47.98 | 82.21 | 0.7425 | 721.0 | 609.9 | |
| 1.48 | 2.87 | 1.08 | 2.10 | 6.61 | 247.48 | -47.62 | 85.71 | 0.7382 | 854.2 | 797.9 | |
| 1.30 | 1.56 | 0.96 | 1.16 | 7.29 | 246.94 | -48.17 | 84.78 | 0.7444 | 595.1 | 683.7 | |
| 0.00 | 3.04 | 0.00 | 2.26 | 9.02 | 246.66 | -48.44 | 82.47 | 0.7478 | 598.0 | 592.7 | |
| 0.00 | 0.70 | 0.00 | 0.52 | 9.43 | 246.54 | -48.57 | 81.92 | 0.7493 | 664.0 | 598.0 | |
| 0.00 | 1.30 | 0.00 | 0.98 | 10.52 | 246.23 | -48.88 | 80.47 | 0.7533 | 635.0 | 477.7 | |
| 0.00 | 2.35 | 0.00 | 1.75 | 8.47 | 246.58 | -48.53 | 83.20 | 0.7487 | 734.0 | 622.0 | |
| 0.00 | 1.48 | 0.00 | 1.11 | 9.11 | 246.32 | -48.78 | 82.35 | 0.7517 | 483.0 | 457.1 | |
| 0.00 | 1.48 | 0.00 | 1.10 | 7.50 | 246.46 | -48.65 | 84.50 | 0.7500 | 564.0 | 434.2 | |
| 0.00 | 1.13 | 0.00 | 0.85 | 9.67 | 246.08 | -49.03 | 81.62 | 0.7546 | 575.0 | 453.2 | |
| 0.00 | 1.13 | 0.00 | 0.85 | 8.50 | 246.11 | -49.00 | 83.17 | 0.7540 | 504.0 | 479.5 | |
| 0.00 | 0.61 | 0.00 | 0.46 | 9.00 | 246.02 | -49.09 | 82.50 | 0.7551 | 601.0 | 556.6 | |
| 0.00 | 1.91 | 0.00 | 1.43 | 6.60 | 246.35 | -48.75 | 85.71 | 0.7513 | 56.0 | 79.7 | |
| 0.00 | 1.65 | 0.00 | 1.24 | 6.55 | 246.13 | -48.97 | 85.76 | 0.7539 | 357.0 | 491.2 | |
| 0.00 | 1.04 | 0.00 | 0.78 | 6.85 | 246.05 | -49.06 | 85.37 | 0.7548 | 589.0 | 348.4 | |
| 0.00 | 0.78 | 0.00 | 0.59 | 7.90 | 245.75 | -49.36 | 83.96 | 0.7581 | 554.0 | 468.7 | |
| 0.00 | 4.26 | 0.00 | 3.26 | 10.18 | 245.18 | -49.93 | 80.98 | 0.7649 | 745.0 | 546.1 | |
| 0.00 | 1.30 | 0.00 | 1.00 | 9.83 | 244.92 | -50.19 | 81.44 | 0.7677 | 723.0 | 668.0 | |
| 0.00 | 1.22 | 0.00 | 0.94 | 9.24 | 244.66 | -50.45 | 82.22 | 0.7704 | 321.0 | 275.1 | |
| 0.00 | 10.16 | 0.00 | 7.88 | 9.57 | 244.55 | -50.56 | 81.80 | 0.7717 | 834.0 | 635.8 | |
| 0.00 | 1.30 | 0.00 | 1.05 | 14.65 | 243.08 | -52.03 | 75.39 | 0.7904 | -522.0 | -370.5 | |
| 0.00 | 0.78 | 0.00 | 0.63 | 14.91 | 242.94 | -52.17 | 75.07 | 0.7921 | -451.0 | -378.8 | |
| 20.59 | 415.36 | 16.17 | 331.37 | 10.28 | 243.96 | -51.15 | 80.90 | 0.7783 | 1036.9 | 215.5 | |
| 0.00 | 0.35 | 0.00 | 0.27 | 8.68 | 244.29 | -50.82 | 82.96 | 0.7744 | 362.0 | 305.0 | |
| 0.00 | 1.04 | 0.00 | 0.82 | 9.44 | 244.04 | -51.06 | 81.98 | 0.7772 | 615.0 | 581.2 | |
| 1.65 | -54.00 | 1.30 | -54.00 | 9.81 | 243.77 | -51.34 | 81.51 | 0.7802 | 948.2 | 999999 | |
| 0.70 | -54.00 | 0.55 | -54.00 | 10.55 | 243.46 | -51.65 | 80.58 | 0.7838 | 538.0 | 999999 | |
| 11.47 | -54.00 | 9.13 | -54.00 | 10.08 | 243.32 | -51.79 | 81.17 | 0.7851 | 750.3 | 999999 | |
| 9.56 | -54.00 | 7.62 | -54.00 | 9.60 | 243.23 | -51.88 | 81.80 | 0.7860 | 840.3 | 999999 | |
| 12.16 | -54.00 | 9.74 | -54.00 | 9.28 | 243.00 | -52.11 | 82.21 | 0.7883 | 738.5 | 999999 | |
| 20.33 | -54.00 | 16.26 | -54.00 | 8.77 | 243.06 | -52.05 | 82.85 | 0.7877 | 842.3 | 999999 | |
| 0.00 | 0.87 | 0.00 | 0.73 | 13.79 | 241.32 | -53.79 | 76.63 | 0.8077 | 670.0 | 550.9 | |
| 0.00 | 0.87 | 0.00 | 0.71 | 11.47 | 241.97 | -53.14 | 79.48 | 0.7997 | -418.0 | -359.7 | |
| 3.39 | 4.95 | 2.80 | 4.09 | 11.09 | 241.67 | -53.44 | 79.97 | 0.8027 | -376.4 | -355.4 | |
| 0.00 | 3.30 | 0.00 | 2.85 | 14.52 | 240.05 | -55.06 | 75.83 | 0.8207 | 614.0 | 541.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
