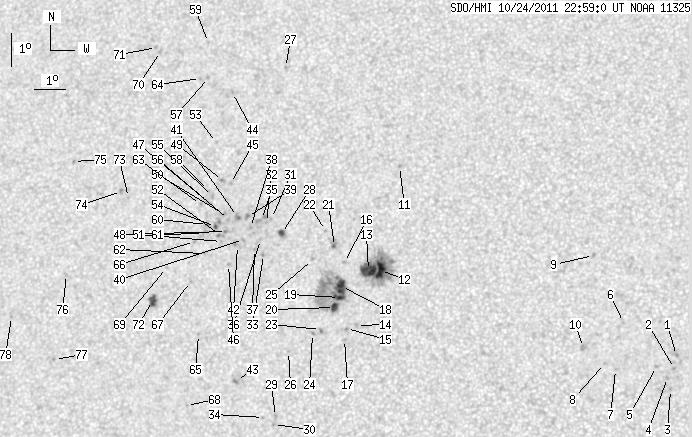

SDO HMI 2011-10-24 22:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 50.82 | 294.25 | 26.62 | 154.68 | 15.94 | 278.47 | -16.09 | 53.67 | 0.3303 | 45.9 | -52.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-24 22:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.39 | 0.00 | 0.70 | 13.49 | 289.86 | -4.69 | 28.59 | 0.1671 | -1086.0 | -888.3 | |
| 0.00 | 1.30 | 0.00 | 0.65 | 13.10 | 289.81 | -4.75 | 30.07 | 0.1616 | -1187.0 | -917.7 | |
| 0.00 | 1.39 | 0.00 | 0.70 | 12.46 | 289.70 | -4.86 | 32.80 | 0.1534 | -1062.0 | -775.2 | |
| 0.00 | 1.65 | 0.00 | 0.83 | 12.82 | 289.60 | -4.96 | 32.06 | 0.1595 | -894.0 | -629.1 | |
| 0.00 | 1.22 | 0.00 | 0.61 | 13.15 | 289.25 | -5.30 | 32.68 | 0.1674 | -1036.0 | -871.5 | |
| 0.00 | 1.04 | 0.00 | 0.53 | 14.47 | 288.20 | -6.35 | 33.29 | 0.1961 | -768.0 | -482.1 | |
| 0.00 | 0.87 | 0.00 | 0.44 | 13.05 | 287.99 | -6.56 | 38.74 | 0.1787 | -859.0 | -594.0 | |
| 0.00 | 1.04 | 0.00 | 0.53 | 13.23 | 287.65 | -6.90 | 39.52 | 0.1847 | -875.0 | -801.1 | |
| 0.00 | 1.82 | 0.00 | 0.93 | 16.49 | 287.20 | -7.36 | 31.80 | 0.2340 | -886.0 | -731.8 | |
| 0.00 | 3.48 | 0.00 | 1.76 | 13.70 | 286.99 | -7.57 | 40.43 | 0.1982 | -747.0 | -696.2 | |
| 0.00 | 1.13 | 0.00 | 0.59 | 19.11 | 280.86 | -13.69 | 42.47 | 0.3327 | -721.0 | -548.8 | |
| 9.64 | 76.29 | 5.01 | 39.64 | 15.93 | 280.50 | -14.06 | 50.84 | 0.3026 | -1412.3 | -597.4 | |
| 12.77 | -12.00 | 6.65 | -12.00 | 15.92 | 280.12 | -14.44 | 51.57 | 0.3075 | -1031.8 | 999999 | |
| 0.00 | 1.74 | 0.00 | 0.90 | 14.25 | 279.85 | -14.70 | 56.70 | 0.2957 | -908.0 | -644.0 | |
| 0.00 | 1.39 | 0.00 | 0.72 | 14.15 | 279.54 | -15.02 | 57.50 | 0.2992 | -897.0 | -764.2 | |
| 0.00 | 1.48 | 0.00 | 0.77 | 16.14 | 279.33 | -15.23 | 52.38 | 0.3199 | -869.0 | -660.4 | |
| 0.00 | 1.56 | 0.00 | 0.81 | 13.82 | 279.50 | -15.06 | 58.54 | 0.2971 | -949.0 | -734.4 | |
| 8.34 | 85.58 | 4.35 | 44.67 | 15.41 | 279.29 | -15.27 | 54.37 | 0.3137 | -1044.4 | -294.8 | |
| 4.00 | -18.00 | 2.08 | -18.00 | 15.08 | 279.25 | -15.31 | 55.34 | 0.3112 | -1070.7 | 999999 | |
| 4.60 | -18.00 | 2.40 | -18.00 | 14.77 | 279.11 | -15.44 | 56.41 | 0.3105 | -978.1 | 999999 | |
| 0.96 | 5.30 | 0.50 | 2.78 | 16.62 | 278.97 | -15.59 | 51.79 | 0.3292 | -889.1 | -714.9 | |
| 0.00 | 1.13 | 0.00 | 0.59 | 17.10 | 278.63 | -15.92 | 51.17 | 0.3381 | -688.0 | -484.0 | |
| 0.00 | 1.48 | 0.00 | 0.77 | 14.10 | 278.71 | -15.84 | 58.93 | 0.3105 | -818.0 | -741.1 | |
| 0.00 | 1.56 | 0.00 | 0.82 | 13.97 | 278.47 | -16.09 | 59.65 | 0.3130 | -753.0 | -589.1 | |
| 0.00 | 1.39 | 0.00 | 0.73 | 16.21 | 278.29 | -16.26 | 53.92 | 0.3342 | -440.0 | -381.5 | |
| 0.00 | 0.52 | 0.00 | 0.27 | 13.41 | 277.74 | -16.82 | 62.24 | 0.3194 | -558.0 | -396.8 | |
| 0.00 | 0.87 | 0.00 | 0.47 | 22.08 | 276.77 | -17.78 | 43.73 | 0.4112 | 797.0 | 659.3 | |
| 3.30 | 5.73 | 1.75 | 3.04 | 16.98 | 277.21 | -17.34 | 53.69 | 0.3553 | 905.2 | 488.9 | |
| 0.00 | 1.56 | 0.00 | 0.81 | 11.45 | 277.46 | -17.10 | 68.37 | 0.3114 | 1005.0 | 790.3 | |
| 0.00 | 1.13 | 0.00 | 0.59 | 11.21 | 277.41 | -17.15 | 69.15 | 0.3109 | 979.0 | 686.4 | |
| 0.00 | 1.39 | 0.00 | 0.74 | 17.42 | 276.84 | -17.71 | 53.18 | 0.3642 | 770.0 | 635.0 | |
| 0.00 | 1.13 | 0.00 | 0.60 | 17.30 | 276.69 | -17.86 | 53.69 | 0.3650 | 995.0 | 696.6 | |
| 0.00 | 1.74 | 0.00 | 0.92 | 16.32 | 276.69 | -17.87 | 56.00 | 0.3567 | 997.0 | 818.2 | |
| 0.00 | 1.13 | 0.00 | 0.59 | 11.41 | 277.08 | -17.48 | 68.87 | 0.3170 | 762.0 | 578.1 | |
| 0.00 | 3.82 | 0.00 | 2.04 | 17.38 | 276.52 | -18.04 | 53.73 | 0.3681 | 677.0 | 807.4 | |
| 0.00 | 1.30 | 0.00 | 0.69 | 16.77 | 276.55 | -18.01 | 55.11 | 0.3624 | 868.0 | 675.9 | |
| 0.00 | 1.13 | 0.00 | 0.60 | 16.47 | 276.38 | -18.17 | 56.08 | 0.3621 | 837.0 | 702.2 | |
| 0.00 | 1.04 | 0.00 | 0.56 | 17.13 | 276.18 | -18.37 | 54.78 | 0.3703 | 850.0 | 674.1 | |
| 0.00 | 2.87 | 0.00 | 1.53 | 17.46 | 276.05 | -18.51 | 54.20 | 0.3749 | 1070.0 | 800.5 | |
| 0.00 | 1.65 | 0.00 | 0.88 | 16.76 | 275.99 | -18.56 | 55.90 | 0.3697 | 905.0 | 772.8 | |
| 0.00 | 3.21 | 0.00 | 1.72 | 17.45 | 275.72 | -18.83 | 54.66 | 0.3792 | 1018.0 | 915.5 | |
| 0.00 | 3.21 | 0.00 | 1.71 | 16.57 | 275.81 | -18.74 | 56.57 | 0.3706 | 761.0 | 645.9 | |
| 0.00 | 2.78 | 0.00 | 1.46 | 12.50 | 276.14 | -18.42 | 66.67 | 0.3374 | 986.0 | 842.3 | |
| 0.00 | 1.30 | 0.00 | 0.71 | 21.26 | 275.09 | -19.47 | 47.67 | 0.4219 | 866.0 | 680.9 | |
| 0.00 | 1.65 | 0.00 | 0.89 | 18.46 | 275.38 | -19.18 | 52.92 | 0.3923 | 836.0 | 688.7 | |
| 0.00 | 1.39 | 0.00 | 0.74 | 15.99 | 275.58 | -18.98 | 58.26 | 0.3692 | 817.0 | 605.9 | |
| 0.00 | 1.82 | 0.00 | 0.98 | 17.35 | 275.43 | -19.12 | 55.26 | 0.3821 | 975.0 | 740.2 | |
| 0.00 | 1.82 | 0.00 | 0.98 | 16.99 | 275.41 | -19.15 | 56.13 | 0.3794 | 966.0 | 862.0 | |
| 0.00 | 2.00 | 0.00 | 1.08 | 18.54 | 275.10 | -19.46 | 53.10 | 0.3966 | 723.0 | 658.3 | |
| 0.00 | 2.61 | 0.00 | 1.40 | 17.53 | 275.22 | -19.34 | 55.15 | 0.3865 | 594.0 | 636.5 | |
| 0.00 | 0.87 | 0.00 | 0.46 | 16.68 | 275.27 | -19.28 | 57.01 | 0.3787 | 819.0 | 723.5 | |
| 0.00 | 2.87 | 0.00 | 1.53 | 16.86 | 275.22 | -19.33 | 56.65 | 0.3809 | 845.0 | 787.1 | |
| 0.00 | 0.96 | 0.00 | 0.52 | 19.70 | 274.75 | -19.80 | 51.15 | 0.4112 | 782.0 | 588.1 | |
| 1.30 | 4.34 | 0.70 | 2.33 | 17.13 | 275.03 | -19.53 | 56.28 | 0.3857 | 1016.5 | 828.4 | |
| 0.00 | 1.74 | 0.00 | 0.94 | 18.04 | 274.82 | -19.73 | 54.52 | 0.3959 | 763.0 | 572.8 | |
| 0.00 | 2.17 | 0.00 | 1.17 | 17.85 | 274.71 | -19.84 | 55.07 | 0.3958 | 777.0 | 653.2 | |
| 0.00 | 1.65 | 0.00 | 0.91 | 21.70 | 274.21 | -20.35 | 48.02 | 0.4365 | 756.0 | 549.3 | |
| 0.00 | 1.04 | 0.00 | 0.56 | 18.22 | 274.67 | -19.88 | 54.33 | 0.3994 | 738.0 | 578.6 | |
| 0.00 | 1.13 | 0.00 | 0.63 | 22.79 | 274.04 | -20.52 | 46.29 | 0.4489 | 670.0 | 577.4 | |
| 0.00 | 2.26 | 0.00 | 1.21 | 17.18 | 274.76 | -19.80 | 56.50 | 0.3897 | 838.0 | 628.5 | |
| 0.00 | 4.26 | 0.00 | 2.29 | 16.90 | 274.66 | -19.90 | 57.25 | 0.3889 | 541.0 | 512.6 | |
| 0.00 | 1.39 | 0.00 | 0.74 | 16.30 | 274.72 | -19.83 | 58.56 | 0.3834 | 755.0 | 574.2 | |
| 0.00 | 1.30 | 0.00 | 0.70 | 17.78 | 274.45 | -20.10 | 55.54 | 0.3986 | 774.0 | 608.9 | |
| 0.00 | 0.78 | 0.00 | 0.43 | 21.66 | 273.94 | -20.62 | 48.44 | 0.4392 | 706.0 | 593.0 | |
| 0.00 | 0.96 | 0.00 | 0.51 | 13.84 | 274.80 | -19.76 | 64.44 | 0.3654 | 697.0 | 568.5 | |
| 0.00 | 1.48 | 0.00 | 0.79 | 16.65 | 274.38 | -20.17 | 58.13 | 0.3907 | 746.0 | 527.2 | |
| 0.00 | 1.13 | 0.00 | 0.60 | 15.44 | 274.38 | -20.17 | 60.96 | 0.3819 | 831.0 | 692.1 | |
| 0.00 | 0.96 | 0.00 | 0.51 | 11.70 | 274.58 | -19.97 | 70.26 | 0.3569 | 823.0 | 639.5 | |
| 0.00 | 0.87 | 0.00 | 0.47 | 15.84 | 273.54 | -21.01 | 60.92 | 0.3964 | 673.0 | 520.6 | |
| 0.00 | 2.17 | 0.00 | 1.21 | 22.46 | 272.43 | -22.13 | 48.85 | 0.4642 | 753.0 | 610.2 | |
| 0.00 | 1.30 | 0.00 | 0.73 | 22.58 | 272.27 | -22.29 | 48.82 | 0.4672 | 614.0 | 538.5 | |
| 5.91 | 7.12 | 3.18 | 3.84 | 14.82 | 273.19 | -21.37 | 63.62 | 0.3948 | 953.2 | 866.1 | |
| 0.00 | 0.87 | 0.00 | 0.48 | 17.92 | 272.02 | -22.54 | 57.96 | 0.4321 | 832.0 | 581.4 | |
| 0.00 | 2.00 | 0.00 | 1.10 | 18.10 | 271.75 | -22.80 | 57.87 | 0.4368 | 881.0 | 726.7 | |
| 0.00 | 1.30 | 0.00 | 0.73 | 18.96 | 269.98 | -24.58 | 57.87 | 0.4664 | 775.0 | 664.5 | |
| 0.00 | 1.56 | 0.00 | 0.86 | 15.51 | 270.23 | -24.33 | 64.63 | 0.4412 | 720.0 | 529.4 | |
| 0.00 | 0.87 | 0.00 | 0.48 | 12.94 | 270.12 | -24.44 | 70.35 | 0.4300 | 675.0 | 567.8 | |
| 0.00 | 0.87 | 0.00 | 0.48 | 14.18 | 268.52 | -26.04 | 68.65 | 0.4589 | 729.0 | 629.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
