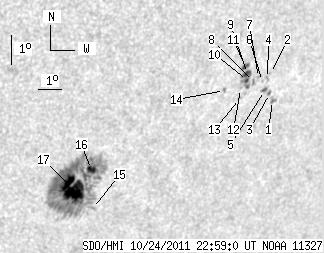

SDO HMI 2011-10-24 22:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 50.40 | 255.19 | 35.69 | 179.78 | -21.64 | 331.86 | 37.30 | 232.37 | 0.7134 | -323.0 | -283.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-24 22:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.21 | 0.00 | 2.46 | -19.69 | 338.39 | 43.84 | 238.73 | 0.7653 | 631.0 | 443.6 | |
| 0.00 | 0.96 | 0.00 | 0.72 | -18.78 | 338.00 | 43.45 | 239.60 | 0.7571 | 355.0 | 271.4 | |
| 1.13 | 1.74 | 0.86 | 1.32 | -19.44 | 338.18 | 43.62 | 238.91 | 0.7620 | 457.8 | 390.6 | |
| 0.00 | 1.56 | 0.00 | 1.18 | -18.94 | 337.92 | 43.37 | 239.37 | 0.7571 | 503.0 | 418.1 | |
| 2.00 | 2.26 | 1.51 | 1.71 | -19.33 | 337.92 | 43.36 | 238.91 | 0.7590 | 514.2 | 444.2 | |
| 0.00 | 0.96 | 0.00 | 0.72 | -19.03 | 337.73 | 43.18 | 239.17 | 0.7557 | 687.0 | 580.4 | |
| 0.00 | 1.22 | 0.00 | 0.91 | -18.88 | 337.51 | 42.96 | 239.22 | 0.7528 | 637.0 | 523.2 | |
| 0.00 | 1.91 | 0.00 | 1.43 | -19.00 | 337.33 | 42.78 | 238.99 | 0.7516 | 702.0 | 524.5 | |
| 3.39 | 17.20 | 2.51 | 12.76 | -18.72 | 336.99 | 42.43 | 239.14 | 0.7468 | 748.7 | 669.0 | |
| 1.65 | -9.00 | 1.23 | -9.00 | -18.95 | 337.06 | 42.51 | 238.90 | 0.7487 | 811.5 | 999999 | |
| 2.61 | -9.00 | 1.93 | -9.00 | -18.48 | 336.83 | 42.27 | 239.34 | 0.7440 | 741.6 | 999999 | |
| 0.00 | 0.52 | 0.00 | 0.39 | -19.20 | 336.84 | 42.28 | 238.48 | 0.7477 | 659.0 | 596.8 | |
| 0.00 | 1.39 | 0.00 | 1.04 | -19.53 | 336.90 | 42.35 | 238.12 | 0.7500 | 505.0 | 460.3 | |
| 0.00 | 1.74 | 0.00 | 1.28 | -19.22 | 336.16 | 41.61 | 238.07 | 0.7412 | 791.0 | 635.4 | |
| 0.00 | 2.00 | 0.00 | 1.42 | -22.86 | 331.84 | 37.29 | 230.99 | 0.7207 | 179.0 | 152.6 | |
| 5.21 | 218.52 | 3.64 | 152.44 | -21.53 | 331.39 | 36.83 | 232.25 | 0.7077 | -813.7 | -409.0 | |
| 34.41 | -16.00 | 24.01 | -16.00 | -22.16 | 330.86 | 36.30 | 231.11 | 0.7068 | -954.8 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
