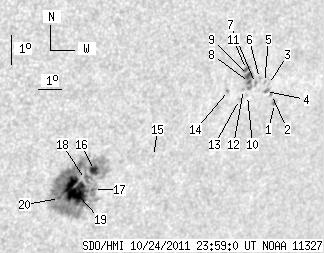

SDO HMI 2011-10-24 23:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 51.25 | 251.65 | 36.49 | 178.54 | -21.65 | 331.81 | 37.81 | 232.71 | 0.7183 | -393.6 | -279.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-24 23:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.30 | 2.61 | 1.01 | 2.02 | -19.73 | 338.43 | 44.43 | 238.99 | 0.7711 | 436.3 | 423.4 | |
| 0.00 | 1.65 | 0.00 | 1.27 | -19.42 | 338.19 | 44.19 | 239.23 | 0.7674 | 546.0 | 392.5 | |
| 0.00 | 1.04 | 0.00 | 0.80 | -19.08 | 337.94 | 43.94 | 239.51 | 0.7634 | 421.0 | 361.3 | |
| 1.13 | 2.61 | 0.86 | 1.99 | -19.31 | 337.89 | 43.88 | 239.21 | 0.7639 | 481.9 | 524.3 | |
| 0.00 | 1.04 | 0.00 | 0.79 | -19.00 | 337.74 | 43.74 | 239.50 | 0.7610 | 577.0 | 515.5 | |
| 0.00 | 1.91 | 0.00 | 1.45 | -18.86 | 337.48 | 43.47 | 239.53 | 0.7577 | 610.0 | 517.3 | |
| 0.00 | 2.35 | 0.00 | 1.77 | -19.01 | 337.35 | 43.35 | 239.28 | 0.7572 | 644.0 | 516.3 | |
| 1.39 | 14.51 | 1.04 | 10.87 | -18.96 | 337.08 | 43.07 | 239.19 | 0.7543 | 772.3 | 649.6 | |
| 2.69 | -8.00 | 2.02 | -8.00 | -18.73 | 336.96 | 42.95 | 239.41 | 0.7520 | 786.7 | 999999 | |
| 0.00 | 1.13 | 0.00 | 0.85 | -19.39 | 337.13 | 43.12 | 238.71 | 0.7569 | 459.0 | 339.8 | |
| 2.17 | -8.00 | 1.62 | -8.00 | -18.52 | 336.81 | 42.80 | 239.58 | 0.7495 | 761.6 | 999999 | |
| 0.00 | 1.13 | 0.00 | 0.85 | -19.18 | 336.89 | 42.88 | 238.83 | 0.7535 | 692.0 | 563.7 | |
| 0.00 | 1.74 | 0.00 | 1.31 | -19.50 | 336.82 | 42.81 | 238.41 | 0.7544 | 658.0 | 438.9 | |
| 0.00 | 1.13 | 0.00 | 0.84 | -19.17 | 336.24 | 42.23 | 238.49 | 0.7471 | 829.0 | 744.9 | |
| 0.00 | 1.13 | 0.00 | 0.82 | -21.18 | 333.72 | 39.71 | 234.59 | 0.7334 | -438.0 | -310.8 | |
| 5.56 | 217.67 | 3.91 | 152.91 | -21.50 | 331.40 | 37.39 | 232.67 | 0.7129 | -813.3 | -400.6 | |
| 0.87 | -16.00 | 0.62 | -16.00 | -22.14 | 331.55 | 37.55 | 232.02 | 0.7185 | -378.4 | 999999 | |
| 0.43 | -16.00 | 0.31 | -16.00 | -21.79 | 331.12 | 37.11 | 232.14 | 0.7120 | -690.8 | 999999 | |
| 34.58 | -16.00 | 24.31 | -16.00 | -22.17 | 330.83 | 36.83 | 231.48 | 0.7118 | -956.6 | 999999 | |
| 1.13 | -16.00 | 0.79 | -16.00 | -22.37 | 330.25 | 36.25 | 230.83 | 0.7076 | -757.4 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
