SDO HMI 2011-10-24 23:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 12.24 | 0.00 | 7.07 | 19.02 | 321.75 | 27.75 | 299.80 | 0.5123 | 272.5 | 256.6 | |
|
previous
or next observation for the same group /

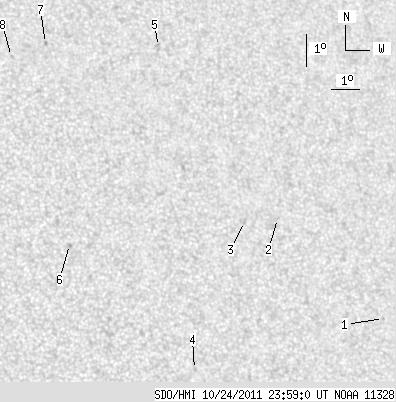

back to the solar disc SDO HMI 2011-10-24 23:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.13 | 0.00 | 0.68 | 14.13 | 328.56 | 34.56 | 287.37 | 0.5786 | 494.0 | 350.8 | |
| 0.00 | 1.04 | 0.00 | 0.62 | 17.33 | 325.23 | 31.23 | 294.36 | 0.5454 | -696.0 | -607.1 | |
| 0.00 | 1.82 | 0.00 | 1.06 | 17.29 | 324.02 | 30.02 | 294.98 | 0.5291 | 662.0 | 579.2 | |
| 0.00 | 1.13 | 0.00 | 0.64 | 12.90 | 321.60 | 27.60 | 287.86 | 0.4764 | 668.0 | 550.7 | |
| 0.00 | 2.95 | 0.00 | 1.73 | 22.80 | 322.02 | 28.01 | 305.92 | 0.5367 | 550.0 | 538.9 | |
| 0.00 | 1.65 | 0.00 | 0.91 | 16.83 | 317.82 | 23.82 | 298.58 | 0.4420 | -877.0 | -782.6 | |
| 0.00 | 1.65 | 0.00 | 0.94 | 23.05 | 317.99 | 23.99 | 310.11 | 0.4912 | 613.0 | 515.3 | |
| 0.00 | 0.87 | 0.00 | 0.49 | 22.68 | 316.73 | 22.72 | 310.87 | 0.4732 | 766.0 | 567.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
