SDO HMI 2011-10-24 23:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 162.77 | 1096.37 | 112.65 | 765.52 | 8.09 | 249.37 | -44.63 | 83.80 | 0.6985 | -193.5 | -62.6 | |
|
previous
or next observation for the same group /

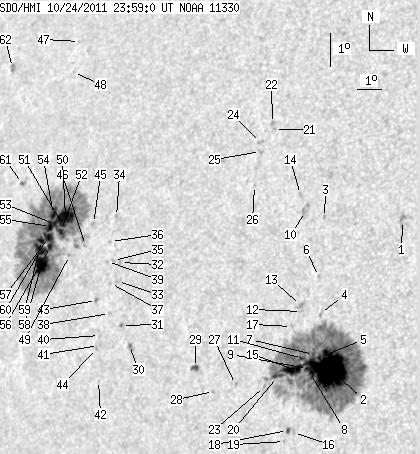

back to the solar disc SDO HMI 2011-10-24 23:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 6.00 | 0.00 | 3.68 | 11.00 | 257.87 | -36.13 | 78.33 | 0.5933 | -634.0 | -641.7 | |
| 71.34 | 563.43 | 44.97 | 357.08 | 6.42 | 255.63 | -38.37 | 86.11 | 0.6206 | -1359.9 | -401.7 | |
| 0.00 | 1.39 | 0.00 | 0.89 | 10.93 | 254.88 | -39.12 | 78.94 | 0.6336 | -676.0 | -602.4 | |
| 0.00 | 2.09 | 0.00 | 1.32 | 8.06 | 255.11 | -38.89 | 83.47 | 0.6279 | -352.0 | -242.9 | |
| 1.04 | -2.00 | 0.66 | -2.00 | 6.75 | 255.18 | -38.83 | 85.57 | 0.6268 | -745.4 | 999999 | |
| 0.00 | 0.78 | 0.00 | 0.50 | 9.16 | 254.90 | -39.10 | 81.74 | 0.6315 | 785.0 | 593.2 | |
| 0.87 | -2.00 | 0.55 | -2.00 | 6.83 | 254.97 | -39.03 | 85.45 | 0.6295 | -690.2 | 999999 | |
| 0.70 | -2.00 | 0.44 | -2.00 | 6.26 | 254.91 | -39.09 | 86.36 | 0.6304 | -768.2 | 999999 | |
| 1.22 | -2.00 | 0.78 | -2.00 | 6.40 | 254.78 | -39.22 | 86.13 | 0.6321 | -746.5 | 999999 | |
| 0.00 | 6.52 | 0.00 | 4.21 | 11.07 | 254.11 | -39.90 | 78.83 | 0.6439 | -758.0 | -567.7 | |
| 2.00 | -2.00 | 1.28 | -2.00 | 6.69 | 254.56 | -39.44 | 85.68 | 0.6351 | -643.4 | 999999 | |
| 0.00 | 1.04 | 0.00 | 0.67 | 8.08 | 254.37 | -39.63 | 83.48 | 0.6379 | -788.0 | -594.5 | |
| 0.00 | 2.78 | 0.00 | 1.79 | 8.26 | 254.31 | -39.69 | 83.21 | 0.6388 | -340.0 | -332.4 | |
| 0.00 | 1.82 | 0.00 | 1.18 | 11.57 | 253.83 | -40.18 | 78.11 | 0.6482 | -530.0 | -447.5 | |
| 12.60 | -2.00 | 8.10 | -2.00 | 6.34 | 254.24 | -39.76 | 86.22 | 0.6394 | -861.3 | 999999 | |
| 0.00 | 2.17 | 0.00 | 1.39 | 4.46 | 254.39 | -39.61 | 89.17 | 0.6381 | -675.0 | -471.5 | |
| 0.00 | 1.22 | 0.00 | 0.78 | 7.61 | 254.03 | -39.97 | 84.23 | 0.6423 | -447.0 | -303.5 | |
| 1.65 | 2.26 | 1.06 | 1.45 | 4.51 | 254.15 | -39.85 | 89.08 | 0.6412 | -655.2 | -688.1 | |
| 0.00 | 1.04 | 0.00 | 0.67 | 4.18 | 254.06 | -39.95 | 89.60 | 0.6427 | -337.0 | -316.2 | |
| 2.95 | -2.00 | 1.91 | -2.00 | 6.09 | 253.64 | -40.37 | 86.59 | 0.6475 | -512.0 | 999999 | |
| 0.00 | 1.13 | 0.00 | 0.75 | 13.45 | 252.41 | -41.60 | 75.50 | 0.6692 | -659.0 | -553.1 | |
| 0.00 | 1.65 | 0.00 | 1.10 | 13.62 | 252.29 | -41.72 | 75.27 | 0.6710 | -549.0 | -549.2 | |
| 0.00 | 1.13 | 0.00 | 0.74 | 5.77 | 253.15 | -40.85 | 87.09 | 0.6540 | -95.0 | -148.0 | |
| 0.00 | 2.69 | 0.00 | 1.80 | 13.03 | 251.92 | -42.08 | 76.22 | 0.6747 | -635.0 | -542.3 | |
| 0.00 | 2.00 | 0.00 | 1.34 | 12.76 | 251.98 | -42.03 | 76.60 | 0.6736 | -676.0 | -557.5 | |
| 0.00 | 1.13 | 0.00 | 0.75 | 11.73 | 251.93 | -42.07 | 78.14 | 0.6727 | -586.0 | -406.0 | |
| 0.00 | 1.22 | 0.00 | 0.81 | 5.76 | 251.99 | -42.02 | 87.06 | 0.6692 | -642.0 | -462.2 | |
| 0.00 | 1.04 | 0.00 | 0.70 | 5.50 | 251.11 | -42.89 | 87.42 | 0.6805 | -591.0 | -518.4 | |
| 2.09 | 3.74 | 1.42 | 2.55 | 6.17 | 250.31 | -43.70 | 86.41 | 0.6905 | -804.9 | -546.3 | |
| 1.39 | 3.48 | 1.00 | 2.49 | 6.64 | 247.43 | -46.57 | 85.68 | 0.7257 | 857.4 | 745.2 | |
| 0.00 | 0.87 | 0.00 | 0.63 | 7.22 | 247.01 | -47.00 | 84.89 | 0.7308 | 765.0 | 685.5 | |
| 0.00 | 1.48 | 0.00 | 1.08 | 9.09 | 246.67 | -47.33 | 82.33 | 0.7349 | 606.0 | 624.6 | |
| 0.00 | 1.30 | 0.00 | 0.95 | 8.51 | 246.63 | -47.37 | 83.12 | 0.7352 | 628.0 | 621.4 | |
| 0.00 | 1.56 | 0.00 | 1.15 | 10.44 | 246.24 | -47.77 | 80.51 | 0.7406 | 554.0 | 489.1 | |
| 0.00 | 1.04 | 0.00 | 0.76 | 9.12 | 246.35 | -47.65 | 82.29 | 0.7387 | 611.0 | 542.0 | |
| 0.00 | 1.13 | 0.00 | 0.83 | 9.68 | 246.11 | -47.89 | 81.55 | 0.7417 | 538.0 | 447.8 | |
| 0.00 | 1.30 | 0.00 | 0.95 | 8.43 | 246.33 | -47.67 | 83.23 | 0.7387 | 527.0 | 416.2 | |
| 0.00 | 1.22 | 0.00 | 0.89 | 7.54 | 246.43 | -47.58 | 84.45 | 0.7376 | 643.0 | 513.7 | |
| 0.00 | 0.87 | 0.00 | 0.64 | 9.08 | 246.09 | -47.91 | 82.36 | 0.7417 | 609.0 | 509.4 | |
| 0.00 | 0.87 | 0.00 | 0.64 | 6.86 | 246.07 | -47.93 | 85.37 | 0.7418 | 574.0 | 463.5 | |
| 0.00 | 0.61 | 0.00 | 0.45 | 6.56 | 246.07 | -47.94 | 85.77 | 0.7419 | 641.0 | 628.1 | |
| 0.00 | 0.78 | 0.00 | 0.57 | 5.52 | 246.19 | -47.81 | 87.18 | 0.7408 | 586.0 | 501.9 | |
| 0.00 | 1.22 | 0.00 | 0.90 | 7.89 | 245.79 | -48.22 | 83.98 | 0.7450 | 607.0 | 465.9 | |
| 0.00 | 1.74 | 0.00 | 1.28 | 6.46 | 245.99 | -48.01 | 85.90 | 0.7428 | 467.0 | 482.4 | |
| 0.00 | 1.30 | 0.00 | 0.98 | 10.17 | 245.24 | -48.76 | 80.94 | 0.7519 | 512.0 | 558.4 | |
| 0.00 | 1.13 | 0.00 | 0.85 | 9.49 | 245.01 | -49.00 | 81.85 | 0.7543 | 703.0 | 610.2 | |
| 0.00 | 1.22 | 0.00 | 0.96 | 15.55 | 243.11 | -50.89 | 74.11 | 0.7796 | -483.0 | -378.1 | |
| 0.00 | 0.87 | 0.00 | 0.68 | 14.60 | 243.13 | -50.87 | 75.32 | 0.7784 | -449.0 | -349.4 | |
| 0.00 | 1.30 | 0.00 | 0.99 | 9.14 | 244.33 | -49.68 | 82.33 | 0.7618 | 706.0 | 639.7 | |
| 15.12 | 456.29 | 11.62 | 355.34 | 10.26 | 243.91 | -50.09 | 80.88 | 0.7668 | 1085.4 | 269.2 | |
| 0.96 | -50.00 | 0.73 | -50.00 | 10.01 | 243.87 | -50.14 | 81.20 | 0.7672 | 1052.6 | 999999 | |
| 2.61 | -50.00 | 2.01 | -50.00 | 9.83 | 243.76 | -50.24 | 81.45 | 0.7683 | 935.2 | 999999 | |
| 1.91 | -50.00 | 1.48 | -50.00 | 10.02 | 243.48 | -50.52 | 81.21 | 0.7714 | 886.0 | 999999 | |
| 3.04 | -50.00 | 2.36 | -50.00 | 10.31 | 243.33 | -50.68 | 80.84 | 0.7732 | 659.1 | 999999 | |
| 3.91 | -50.00 | 3.04 | -50.00 | 9.94 | 243.26 | -50.74 | 81.31 | 0.7738 | 827.7 | 999999 | |
| 2.61 | -50.00 | 2.02 | -50.00 | 9.35 | 243.39 | -50.62 | 82.08 | 0.7723 | 1089.3 | 999999 | |
| 5.65 | -50.00 | 4.40 | -50.00 | 9.61 | 243.24 | -50.77 | 81.75 | 0.7740 | 945.0 | 999999 | |
| 16.34 | -50.00 | 12.77 | -50.00 | 8.78 | 243.06 | -50.94 | 82.82 | 0.7757 | 855.9 | 999999 | |
| 2.95 | -50.00 | 2.32 | -50.00 | 9.50 | 242.92 | -51.08 | 81.90 | 0.7774 | 549.9 | 999999 | |
| 8.26 | -50.00 | 6.47 | -50.00 | 9.23 | 242.93 | -51.07 | 82.25 | 0.7773 | 704.8 | 999999 | |
| 1.56 | 3.22 | 1.26 | 2.59 | 11.13 | 241.61 | -52.39 | 79.87 | 0.7919 | -498.2 | -351.6 | |
| 0.00 | 3.30 | 0.00 | 2.77 | 14.54 | 240.05 | -53.95 | 75.71 | 0.8099 | 640.0 | 528.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
