Sunspot Group 11324

group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP

11324	58.84	300.17	29.78	152.59	12.51	303.03	9.58	312.09	0.2159	89.9	125.9

previous or next observation for the same group / back to the solar disc

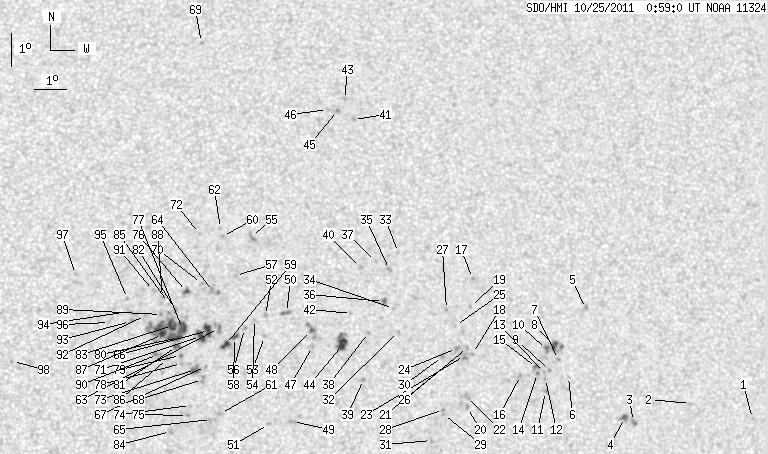

SDO HMI 2011-10-25 00:59:00 UT
No observation available

See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP

1	0.00	1.04	0.00	0.57	9.65	317.13	23.68	282.36	0.4070	-656.0	-495.5
2	0.00	1.48	0.00	0.79	10.17	315.13	21.68	284.57	0.3774	-658.0	-496.6
3	0.00	3.04	0.00	1.61	9.69	313.26	19.80	284.31	0.3462	-941.0	-793.2
4	3.13	5.39	1.65	2.84	9.81	312.97	19.52	284.84	0.3421	-915.0	-611.4
5	0.00	2.78	0.00	1.47	13.12	311.95	18.50	294.98	0.3424	-753.0	-533.3
6	0.00	0.70	0.00	0.36	11.09	311.26	17.81	289.89	0.3206	-608.0	-433.8
7	0.00	1.39	0.00	0.73	11.61	310.98	17.52	291.71	0.3189	-788.0	-641.1
8	4.00	14.95	2.09	7.81	12.03	310.88	17.42	293.06	0.3197	-961.8	-801.6
9	0.00	1.30	0.00	0.68	11.29	310.67	17.22	291.05	0.3124	-923.0	-743.3
10	0.00	2.61	0.00	1.36	11.92	310.61	17.16	293.01	0.3150	-1010.0	-941.9
11	0.00	2.00	0.00	1.04	10.66	310.50	17.05	289.27	0.3066	-804.0	-627.0
12	0.00	1.39	0.00	0.72	11.05	310.53	17.07	290.46	0.3089	-762.0	-600.8
13	0.00	1.39	0.00	0.72	11.23	310.51	17.05	291.04	0.3096	-896.0	-717.5
14	0.00	1.04	0.00	0.54	11.21	310.28	16.83	291.19	0.3060	-1123.0	-1042.8
15	0.00	3.04	0.00	1.58	11.39	310.26	16.81	291.78	0.3066	-984.0	-834.3
16	0.00	2.35	0.00	1.22	11.16	309.74	16.29	291.63	0.2973	-1053.0	-875.6
17	0.00	1.13	0.00	0.59	14.11	308.40	14.95	302.53	0.2981	-943.0	-788.7
18	0.00	1.22	0.00	0.63	11.85	308.26	14.81	295.72	0.2790	-867.0	-694.4
19	0.00	1.30	0.00	0.67	13.27	308.28	14.83	300.19	0.2895	-741.0	-609.7
20	0.00	1.91	0.00	0.98	10.24	308.02	14.57	290.47	0.2655	-893.0	-685.7
21	0.00	1.65	0.00	0.85	12.04	308.12	14.66	296.54	0.2780	-713.0	-572.2
22	0.00	3.39	0.00	1.74	10.57	308.01	14.56	291.67	0.2670	-875.0	-704.9
23	0.00	4.61	0.00	2.37	11.80	308.01	14.56	295.90	0.2747	-932.0	-822.2
24	0.00	2.69	0.00	1.39	12.02	307.77	14.32	296.98	0.2726	-1018.0	-826.7
25	0.00	1.04	0.00	0.54	12.71	307.78	14.32	299.24	0.2778	-869.0	-725.2
26	0.00	1.22	0.00	0.63	11.66	307.59	14.14	296.04	0.2675	-854.0	-728.1
27	0.00	1.22	0.00	0.63	13.19	307.52	14.07	301.22	0.2780	-837.0	-672.3
28	0.00	1.13	0.00	0.58	10.20	307.27	13.82	291.24	0.2534	-898.0	-810.5
29	0.00	1.30	0.00	0.67	10.05	307.27	13.81	290.69	0.2524	-989.0	-710.0
30	0.00	2.09	0.00	1.07	11.79	307.32	13.86	296.89	0.2642	-932.0	-772.1
31	0.00	1.22	0.00	0.62	9.28	306.86	13.41	288.21	0.2420	-894.0	-765.1
32	0.00	1.30	0.00	0.67	12.56	305.98	12.53	301.94	0.2506	-785.0	-641.6
33	0.00	1.22	0.00	0.63	14.94	306.11	12.66	309.27	0.2747	-761.0	-560.4
34	0.00	1.13	0.00	0.58	13.26	305.86	12.40	304.54	0.2550	-844.0	-600.0
35	0.00	2.43	0.00	1.25	14.44	305.80	12.34	308.43	0.2654	-1075.0	-767.6
36	0.00	4.35	0.00	2.22	13.47	305.55	12.10	305.90	0.2528	-1026.0	-725.6
37	0.00	1.39	0.00	0.71	14.69	305.37	11.92	310.13	0.2624	-758.0	-644.2
38	0.00	1.65	0.00	0.84	12.55	305.04	11.59	303.84	0.2371	878.0	675.2
39	0.00	1.48	0.00	0.75	11.14	304.83	11.37	298.94	0.2221	984.0	743.0
40	0.00	2.52	0.00	1.29	14.51	304.89	11.43	310.73	0.2544	-940.0	-659.4
41	0.00	1.65	0.00	0.86	19.02	304.94	11.49	322.14	0.3082	-926.0	-644.1
42	0.00	1.22	0.00	0.62	13.13	304.54	11.08	307.05	0.2356	602.0	508.6
43	0.00	1.30	0.00	0.68	19.64	304.69	11.24	323.99	0.3137	-719.0	-596.6
44	8.00	15.56	4.06	7.90	12.20	304.22	10.76	304.44	0.2224	-1053.2	-780.4
45	0.00	1.22	0.00	0.63	19.30	304.45	10.99	323.92	0.3069	-1087.0	-972.9
46	0.00	1.22	0.00	0.63	19.34	304.13	10.67	324.77	0.3043	-947.0	-610.4
47	0.00	1.65	0.00	0.84	12.16	303.29	9.83	306.64	0.2090	-856.0	-527.2
48	1.74	7.04	0.88	3.57	12.64	303.27	9.82	308.52	0.2137	-1019.2	-815.7
49	0.00	3.13	0.00	1.57	9.92	302.60	9.14	298.54	0.1790	794.0	644.6
50	0.00	4.08	0.00	2.07	13.19	302.52	9.07	312.75	0.2099	1019.0	703.6
51	0.00	1.30	0.00	0.65	9.84	301.86	8.41	300.12	0.1673	940.0	696.1
52	0.00	1.48	0.00	0.75	13.11	301.87	8.41	314.55	0.2009	-132.0	-236.4
53	0.00	0.96	0.00	0.48	12.48	301.81	8.36	312.34	0.1929	-740.0	-523.8
54	0.00	1.22	0.00	0.61	12.99	301.52	8.07	315.30	0.1953	709.0	517.6
55	0.00	3.30	0.00	1.68	15.50	301.52	8.07	323.30	0.2273	900.0	754.6
56	0.00	2.00	0.00	1.01	12.73	301.20	7.75	315.42	0.1883	758.0	582.8
57	0.00	1.30	0.00	0.66	14.33	300.98	7.53	321.77	0.2060	771.0	571.9
58	1.65	3.30	0.83	1.66	12.46	300.89	7.44	315.55	0.1813	766.5	643.2
59	3.91	5.04	1.97	2.54	12.25	300.61	7.15	315.81	0.1754	984.3	857.5
60	0.00	1.04	0.00	0.53	15.51	300.61	7.16	326.48	0.2185	914.0	750.4
61	0.00	1.91	0.00	0.96	10.19	300.40	6.95	306.87	0.1495	831.0	667.0
62	0.00	0.96	0.00	0.49	15.75	300.56	7.11	327.30	0.2215	733.0	592.5
63	0.00	5.13	0.00	2.58	12.74	300.40	6.95	318.52	0.1790	800.0	733.3
64	0.00	4.95	0.00	2.50	13.85	300.28	6.83	322.92	0.1924	922.0	796.5
65	0.00	3.48	0.00	1.74	10.01	300.12	6.67	306.99	0.1439	774.0	647.2
66	6.60	17.64	3.32	8.87	12.68	300.09	6.64	319.58	0.1748	1016.5	808.7
67	0.00	1.04	0.00	0.52	11.60	299.98	6.52	315.63	0.1599	809.0	678.0
68	0.00	3.22	0.00	1.61	11.21	299.88	6.42	314.28	0.1540	627.0	715.5
69	0.00	1.56	0.00	0.81	21.46	300.19	6.74	338.85	0.3041	849.0	724.7
70	0.00	2.17	0.00	1.10	14.10	299.92	6.46	325.17	0.1921	769.0	623.8
71	5.65	-66.00	2.84	-66.00	12.50	299.84	6.39	319.96	0.1697	1145.8	999999
72	0.00	1.22	0.00	0.62	15.61	299.90	6.45	329.40	0.2135	830.0	519.7
73	0.00	6.43	0.00	3.22	11.51	299.67	6.21	316.60	0.1551	991.0	942.0
74	0.00	1.22	0.00	0.61	10.43	299.49	6.04	312.09	0.1401	775.0	610.7
75	0.00	1.22	0.00	0.61	10.14	299.40	5.94	310.89	0.1355	1023.0	728.2
76	2.17	3.91	1.09	1.97	13.86	299.45	5.99	326.42	0.1842	941.6	761.0
77	8.95	63.70	4.50	31.97	12.75	299.30	5.84	323.35	0.1672	1006.9	936.9
78	0.00	0.87	0.00	0.44	11.70	299.24	5.79	319.41	0.1525	796.0	659.8
79	0.00	1.39	0.00	0.70	11.94	299.22	5.77	320.56	0.1554	1182.0	935.6
80	2.35	-77.00	1.18	-77.00	12.48	299.20	5.75	322.81	0.1625	1005.1	999999
81	0.00	3.56	0.00	1.79	12.21	299.10	5.65	322.23	0.1578	1116.0	940.1
82	0.00	2.69	0.00	1.35	13.32	299.10	5.64	326.29	0.1732	888.0	748.5
83	7.39	-77.00	3.71	-77.00	12.84	298.99	5.54	325.13	0.1654	1127.1	999999
84	0.00	2.95	0.00	1.47	9.66	298.87	5.42	310.66	0.1233	832.0	498.4
85	0.00	0.70	0.00	0.35	13.53	298.88	5.43	327.96	0.1743	477.0	526.2
86	0.00	1.13	0.00	0.57	11.85	298.82	5.37	322.18	0.1499	959.0	752.6
87	3.30	-77.00	1.66	-77.00	12.57	298.68	5.23	325.71	0.1586	1257.8	999999
88	0.00	1.56	0.00	0.79	13.68	298.70	5.25	329.28	0.1749	732.0	544.3
89	0.00	1.56	0.00	0.79	13.17	298.66	5.21	327.88	0.1670	758.0	587.7
90	0.00	2.69	0.00	1.35	11.97	298.51	5.06	324.27	0.1485	1003.0	790.3
91	0.00	1.65	0.00	0.83	13.90	298.43	4.98	331.21	0.1757	919.0	707.1
92	0.00	1.22	0.00	0.61	13.15	298.17	4.72	330.28	0.1623	900.0	690.6
93	0.00	2.52	0.00	1.26	12.97	297.71	4.25	332.21	0.1557	746.0	596.8
94	0.00	1.91	0.00	0.96	13.27	297.65	4.20	333.42	0.1599	671.0	661.5
95	0.00	1.13	0.00	0.57	13.66	297.63	4.17	334.63	0.1658	989.0	788.8
96	0.00	1.13	0.00	0.57	12.94	297.06	3.61	335.82	0.1505	687.0	554.4
97	0.00	1.13	0.00	0.57	14.39	296.04	2.58	344.88	0.1682	680.0	596.5
98	0.00	1.13	0.00	0.56	11.78	294.09	0.64	354.65	0.1174	-728.0	-588.6

	Proj. U	- Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	- Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	- Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	- Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	- Heliographic latitude B; positive: North, negative: South
	L	- Heliographic longitude L
	LCM	- Longitudinal distance from the Sun's central meridian
	Pos. angle	- Position angle
	r	- Distance from the centre of Sun's disc in terms of Sun's radius
	MU	- Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	- Mean magnetic field within the penumbra contour averaged the pixel values with sign.
