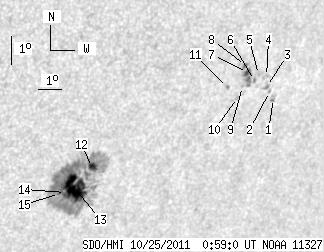

SDO HMI 2011-10-25 00:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 46.16 | 247.01 | 32.92 | 176.42 | -21.70 | 331.72 | 38.27 | 232.97 | 0.7229 | -463.8 | -273.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-25 00:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.48 | 0.00 | 2.72 | -19.67 | 338.45 | 45.00 | 239.35 | 0.7762 | 540.0 | 424.4 | |
| 0.00 | 1.22 | 0.00 | 0.94 | -19.43 | 338.18 | 44.73 | 239.50 | 0.7725 | 434.0 | 389.1 | |
| 0.00 | 3.22 | 0.00 | 2.48 | -19.25 | 337.99 | 44.53 | 239.61 | 0.7699 | 607.0 | 496.8 | |
| 0.00 | 2.35 | 0.00 | 1.80 | -18.92 | 337.87 | 44.42 | 239.95 | 0.7672 | 484.0 | 473.8 | |
| 0.00 | 0.87 | 0.00 | 0.66 | -18.83 | 337.49 | 44.04 | 239.86 | 0.7631 | 562.0 | 503.4 | |
| 0.00 | 1.30 | 0.00 | 0.99 | -19.02 | 337.38 | 43.92 | 239.58 | 0.7629 | 591.0 | 511.9 | |
| 3.48 | 13.47 | 2.63 | 10.19 | -18.73 | 336.98 | 43.52 | 239.71 | 0.7576 | 736.7 | 696.7 | |
| 1.48 | -7.00 | 1.11 | -7.00 | -18.50 | 336.81 | 43.36 | 239.91 | 0.7548 | 740.9 | 999999 | |
| 0.00 | 1.13 | 0.00 | 0.86 | -19.18 | 336.91 | 43.45 | 239.13 | 0.7591 | 741.0 | 581.8 | |
| 0.00 | 1.83 | 0.00 | 1.39 | -19.54 | 336.81 | 43.35 | 238.66 | 0.7598 | 604.0 | 517.1 | |
| 0.00 | 1.22 | 0.00 | 0.91 | -19.17 | 336.25 | 42.80 | 238.79 | 0.7526 | 815.0 | 710.2 | |
| 5.04 | 216.92 | 3.57 | 153.48 | -21.50 | 331.33 | 37.88 | 233.01 | 0.7176 | -802.4 | -402.9 | |
| 34.68 | -12.00 | 24.56 | -12.00 | -22.17 | 330.85 | 37.40 | 231.88 | 0.7172 | -945.4 | 999999 | |
| 0.35 | -12.00 | 0.25 | -12.00 | -22.28 | 330.48 | 37.03 | 231.49 | 0.7144 | -1036.0 | 999999 | |
| 1.13 | -12.00 | 0.80 | -12.00 | -22.30 | 330.25 | 36.79 | 231.30 | 0.7123 | -836.1 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
