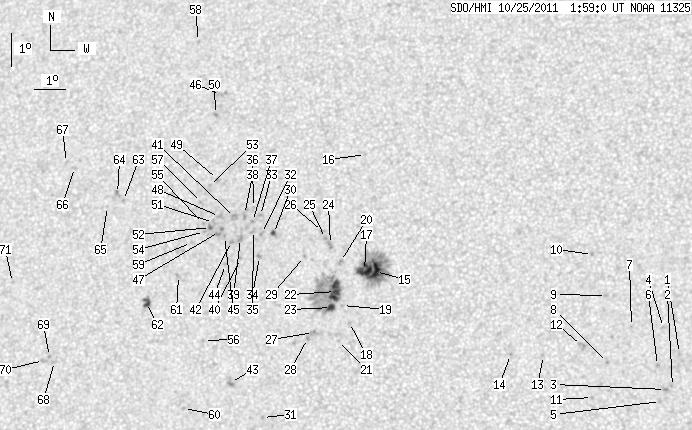

SDO HMI 2011-10-25 01:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 45.46 | 285.20 | 23.61 | 148.69 | 15.82 | 278.60 | -14.31 | 50.43 | 0.3066 | -80.4 | -97.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-25 01:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.13 | 0.00 | 0.57 | 13.54 | 290.02 | -2.89 | 18.41 | 0.1557 | -991.0 | -770.6 | |
| 0.00 | 0.78 | 0.00 | 0.39 | 12.55 | 289.82 | -3.09 | 22.04 | 0.1408 | -852.0 | -777.0 | |
| 0.00 | 1.65 | 0.00 | 0.83 | 12.46 | 289.60 | -3.30 | 23.66 | 0.1408 | -1116.0 | -880.4 | |
| 0.00 | 1.30 | 0.00 | 0.66 | 14.33 | 289.51 | -3.39 | 19.63 | 0.1713 | -632.0 | -577.0 | |
| 0.00 | 1.39 | 0.00 | 0.70 | 12.10 | 289.45 | -3.45 | 25.72 | 0.1362 | -789.0 | -594.9 | |
| 0.00 | 1.56 | 0.00 | 0.78 | 13.18 | 289.35 | -3.56 | 23.21 | 0.1539 | -1031.0 | -807.3 | |
| 0.00 | 0.78 | 0.00 | 0.39 | 14.35 | 288.53 | -4.38 | 24.64 | 0.1781 | -751.0 | -597.8 | |
| 0.00 | 1.39 | 0.00 | 0.70 | 13.26 | 287.81 | -5.09 | 31.25 | 0.1673 | -1076.0 | -827.0 | |
| 0.00 | 1.48 | 0.00 | 0.75 | 15.28 | 287.73 | -5.17 | 26.12 | 0.1983 | -922.0 | -641.1 | |
| 0.00 | 1.56 | 0.00 | 0.79 | 16.52 | 287.26 | -5.64 | 25.38 | 0.2208 | -887.0 | -675.6 | |
| 0.00 | 1.13 | 0.00 | 0.57 | 12.20 | 287.37 | -5.53 | 37.18 | 0.1566 | -905.0 | -661.1 | |
| 0.00 | 3.82 | 0.00 | 1.93 | 13.76 | 287.00 | -5.90 | 33.45 | 0.1821 | -510.0 | -663.7 | |
| 0.00 | 0.61 | 0.00 | 0.31 | 13.45 | 285.83 | -7.07 | 39.34 | 0.1897 | -593.0 | -614.7 | |
| 0.00 | 1.13 | 0.00 | 0.57 | 13.47 | 284.81 | -8.09 | 43.04 | 0.2014 | -808.0 | -687.8 | |
| 7.91 | 80.05 | 4.08 | 41.33 | 15.91 | 280.47 | -12.44 | 47.50 | 0.2821 | -1423.1 | -600.9 | |
| 0.00 | 1.13 | 0.00 | 0.59 | 19.48 | 279.89 | -13.01 | 40.27 | 0.3299 | -760.0 | -509.8 | |
| 11.21 | -15.00 | 5.80 | -15.00 | 15.94 | 280.12 | -12.79 | 48.20 | 0.2867 | -1044.6 | 999999 | |
| 0.00 | 0.78 | 0.00 | 0.40 | 14.35 | 279.74 | -13.16 | 53.51 | 0.2757 | -992.0 | -800.2 | |
| 0.00 | 1.04 | 0.00 | 0.54 | 14.86 | 279.49 | -13.42 | 52.50 | 0.2839 | -945.0 | -703.9 | |
| 0.00 | 2.26 | 0.00 | 1.17 | 16.20 | 279.33 | -13.57 | 49.13 | 0.2993 | -799.0 | -476.0 | |
| 0.00 | 1.04 | 0.00 | 0.54 | 13.81 | 279.43 | -13.48 | 55.80 | 0.2749 | -896.0 | -645.2 | |
| 14.34 | 77.70 | 7.42 | 40.25 | 15.28 | 279.24 | -13.67 | 51.80 | 0.2913 | -1069.3 | -336.0 | |
| 4.00 | -22.00 | 2.07 | -22.00 | 14.80 | 279.14 | -13.76 | 53.37 | 0.2879 | -1048.9 | 999999 | |
| 0.00 | 3.04 | 0.00 | 1.58 | 16.71 | 278.98 | -13.93 | 48.52 | 0.3090 | -891.0 | -781.7 | |
| 0.00 | 1.56 | 0.00 | 0.82 | 16.88 | 278.80 | -14.10 | 48.41 | 0.3131 | -756.0 | -610.8 | |
| 0.00 | 1.91 | 0.00 | 1.00 | 17.10 | 278.69 | -14.21 | 48.10 | 0.3167 | -601.0 | -397.1 | |
| 0.00 | 3.39 | 0.00 | 1.75 | 14.03 | 278.62 | -14.28 | 56.57 | 0.2881 | -936.0 | -712.4 | |
| 0.00 | 1.74 | 0.00 | 0.90 | 13.84 | 278.44 | -14.46 | 57.43 | 0.2890 | -890.0 | -722.8 | |
| 0.00 | 1.22 | 0.00 | 0.63 | 16.32 | 278.17 | -14.73 | 51.01 | 0.3154 | -661.0 | -574.1 | |
| 1.74 | 2.26 | 0.91 | 1.19 | 17.00 | 277.12 | -15.79 | 51.15 | 0.3355 | 917.8 | 938.3 | |
| 0.00 | 1.04 | 0.00 | 0.54 | 11.44 | 277.16 | -15.74 | 66.83 | 0.2905 | 887.0 | 724.2 | |
| 0.00 | 2.43 | 0.00 | 1.28 | 16.99 | 276.73 | -16.17 | 51.82 | 0.3404 | 884.0 | 721.4 | |
| 0.00 | 2.43 | 0.00 | 1.28 | 17.54 | 276.65 | -16.26 | 50.65 | 0.3467 | 827.0 | 671.0 | |
| 0.00 | 2.35 | 0.00 | 1.23 | 16.29 | 276.72 | -16.18 | 53.55 | 0.3340 | 1036.0 | 782.3 | |
| 0.00 | 2.43 | 0.00 | 1.28 | 17.08 | 276.46 | -16.44 | 52.04 | 0.3447 | 913.0 | 781.9 | |
| 0.00 | 0.70 | 0.00 | 0.37 | 17.78 | 276.40 | -16.51 | 50.50 | 0.3522 | 722.0 | 581.6 | |
| 0.00 | 1.13 | 0.00 | 0.60 | 17.35 | 276.40 | -16.50 | 51.48 | 0.3480 | 1051.0 | 812.9 | |
| 0.00 | 3.91 | 0.00 | 2.07 | 17.56 | 276.12 | -16.78 | 51.44 | 0.3536 | 898.0 | 783.0 | |
| 0.00 | 3.56 | 0.00 | 1.88 | 16.82 | 276.06 | -16.84 | 53.27 | 0.3476 | 1061.0 | 834.5 | |
| 0.00 | 1.30 | 0.00 | 0.69 | 16.21 | 276.12 | -16.79 | 54.68 | 0.3414 | 746.0 | 603.9 | |
| 0.00 | 3.74 | 0.00 | 1.98 | 17.46 | 275.80 | -17.10 | 52.16 | 0.3567 | 859.0 | 846.5 | |
| 0.00 | 1.91 | 0.00 | 1.01 | 16.72 | 275.78 | -17.13 | 53.94 | 0.3504 | 912.0 | 852.3 | |
| 0.00 | 4.69 | 0.00 | 2.45 | 12.46 | 276.08 | -16.82 | 64.96 | 0.3132 | 885.0 | 757.2 | |
| 0.00 | 0.96 | 0.00 | 0.50 | 16.02 | 275.65 | -17.26 | 55.85 | 0.3461 | 735.0 | 615.0 | |
| 0.00 | 1.30 | 0.00 | 0.69 | 16.87 | 275.53 | -17.37 | 53.95 | 0.3549 | 912.0 | 755.1 | |
| 0.00 | 5.30 | 0.00 | 2.87 | 21.22 | 274.92 | -17.98 | 45.59 | 0.4046 | 682.0 | 624.8 | |
| 0.00 | 3.91 | 0.00 | 2.07 | 17.02 | 275.36 | -17.55 | 53.85 | 0.3586 | 833.0 | 897.5 | |
| 0.00 | 3.13 | 0.00 | 1.66 | 17.47 | 275.31 | -17.59 | 52.86 | 0.3632 | 801.0 | 685.3 | |
| 0.00 | 1.22 | 0.00 | 0.65 | 18.60 | 275.13 | -17.77 | 50.60 | 0.3760 | 703.0 | 615.4 | |
| 0.00 | 1.48 | 0.00 | 0.80 | 20.60 | 274.83 | -18.07 | 46.93 | 0.3992 | 1005.0 | 822.4 | |
| 0.00 | 2.17 | 0.00 | 1.15 | 17.29 | 275.13 | -17.77 | 53.55 | 0.3639 | 863.0 | 754.9 | |
| 1.39 | 2.35 | 0.74 | 1.25 | 17.13 | 275.05 | -17.85 | 54.03 | 0.3636 | 983.8 | 866.7 | |
| 0.00 | 1.30 | 0.00 | 0.70 | 18.41 | 274.88 | -18.02 | 51.37 | 0.3773 | 573.0 | 452.7 | |
| 0.00 | 0.78 | 0.00 | 0.42 | 17.00 | 274.87 | -18.04 | 54.58 | 0.3649 | 769.0 | 598.4 | |
| 0.00 | 1.30 | 0.00 | 0.69 | 17.25 | 274.81 | -18.09 | 54.10 | 0.3678 | 900.0 | 638.9 | |
| 0.00 | 1.30 | 0.00 | 0.69 | 13.70 | 275.13 | -17.77 | 62.58 | 0.3356 | 859.0 | 657.5 | |
| 0.00 | 1.13 | 0.00 | 0.60 | 17.89 | 274.68 | -18.23 | 52.83 | 0.3751 | 687.0 | 633.8 | |
| 0.00 | 0.70 | 0.00 | 0.38 | 22.85 | 273.95 | -18.95 | 44.04 | 0.4323 | 779.0 | 617.1 | |
| 0.00 | 0.87 | 0.00 | 0.46 | 16.66 | 274.48 | -18.43 | 55.93 | 0.3672 | 635.0 | 431.9 | |
| 0.00 | 0.78 | 0.00 | 0.41 | 11.64 | 274.64 | -18.27 | 68.90 | 0.3305 | 802.0 | 618.4 | |
| 0.00 | 2.09 | 0.00 | 1.11 | 15.65 | 274.15 | -18.75 | 58.78 | 0.3636 | 713.0 | 643.5 | |
| 4.87 | 6.43 | 2.59 | 3.43 | 14.80 | 273.18 | -19.72 | 61.98 | 0.3712 | 950.0 | 761.4 | |
| 0.00 | 1.56 | 0.00 | 0.85 | 17.87 | 272.08 | -20.82 | 56.17 | 0.4089 | 961.0 | 625.2 | |
| 0.00 | 3.13 | 0.00 | 1.70 | 18.08 | 271.86 | -21.05 | 55.99 | 0.4136 | 868.0 | 644.7 | |
| 0.00 | 0.96 | 0.00 | 0.52 | 17.67 | 271.57 | -21.33 | 57.17 | 0.4142 | 787.0 | 646.4 | |
| 0.00 | 2.17 | 0.00 | 1.20 | 18.83 | 270.30 | -22.60 | 56.16 | 0.4398 | 656.0 | 477.3 | |
| 0.00 | 1.48 | 0.00 | 0.82 | 18.97 | 270.01 | -22.90 | 56.18 | 0.4447 | 783.0 | 544.9 | |
| 0.00 | 2.09 | 0.00 | 1.13 | 12.93 | 270.33 | -22.57 | 69.09 | 0.4022 | 692.0 | 658.5 | |
| 0.00 | 0.87 | 0.00 | 0.47 | 13.07 | 270.15 | -22.75 | 68.88 | 0.4056 | 826.0 | 652.3 | |
| 0.00 | 2.69 | 0.00 | 1.46 | 12.95 | 269.96 | -22.94 | 69.31 | 0.4078 | 774.0 | 687.7 | |
| 0.00 | 1.30 | 0.00 | 0.72 | 15.26 | 268.67 | -24.24 | 65.07 | 0.4386 | 616.0 | 463.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
