SDO HMI 2011-10-25 02:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 40.08 | 287.18 | 20.75 | 149.60 | 16.12 | 278.32 | -14.03 | 49.32 | 0.3056 | 15.3 | -40.0 | |
|
previous
or next observation for the same group /

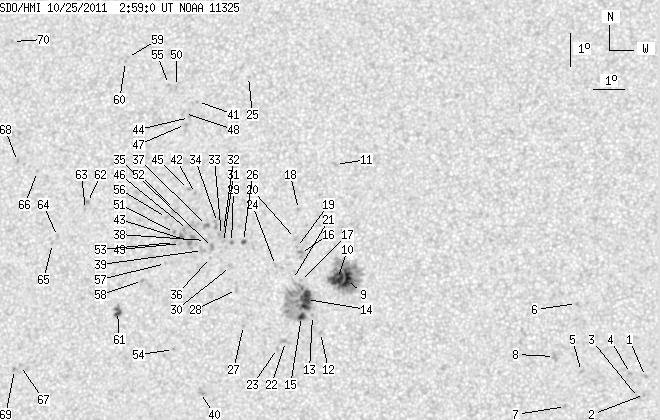

back to the solar disc SDO HMI 2011-10-25 02:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.39 | 0.00 | 0.70 | 13.12 | 289.84 | -2.51 | 16.98 | 0.1468 | -967.0 | -819.5 | |
| 0.00 | 1.22 | 0.00 | 0.61 | 12.58 | 289.82 | -2.54 | 18.33 | 0.1380 | -824.0 | -695.9 | |
| 0.00 | 1.48 | 0.00 | 0.74 | 12.48 | 289.63 | -2.72 | 19.77 | 0.1376 | -1022.0 | -815.4 | |
| 0.00 | 1.39 | 0.00 | 0.70 | 13.21 | 289.38 | -2.97 | 19.66 | 0.1508 | -1068.0 | -747.7 | |
| 0.00 | 1.04 | 0.00 | 0.52 | 13.26 | 287.88 | -4.48 | 28.08 | 0.1621 | -991.0 | -745.0 | |
| 0.00 | 0.87 | 0.00 | 0.44 | 15.31 | 287.68 | -4.67 | 23.85 | 0.1952 | -805.0 | -739.7 | |
| 0.00 | 1.56 | 0.00 | 0.78 | 12.20 | 287.41 | -4.95 | 34.17 | 0.1508 | -815.0 | -591.5 | |
| 0.00 | 4.26 | 0.00 | 2.14 | 13.70 | 287.04 | -5.32 | 30.94 | 0.1759 | -800.0 | -675.7 | |
| 7.65 | 83.88 | 3.94 | 43.23 | 15.95 | 280.46 | -11.90 | 46.18 | 0.2760 | -1413.0 | -572.7 | |
| 8.69 | -9.00 | 4.48 | -9.00 | 15.97 | 280.17 | -12.18 | 46.77 | 0.2798 | -1110.6 | 999999 | |
| 0.00 | 1.83 | 0.00 | 0.96 | 19.45 | 279.86 | -12.49 | 39.20 | 0.3242 | -849.0 | -592.5 | |
| 0.00 | 1.65 | 0.00 | 0.85 | 14.33 | 279.73 | -12.62 | 52.47 | 0.2682 | -1093.0 | -733.7 | |
| 0.00 | 0.87 | 0.00 | 0.45 | 14.84 | 279.45 | -12.91 | 51.54 | 0.2770 | -1045.0 | -822.8 | |
| 14.43 | 69.97 | 7.45 | 36.17 | 15.32 | 279.23 | -13.13 | 50.61 | 0.2847 | -1055.0 | -327.2 | |
| 3.39 | -14.00 | 1.75 | -14.00 | 14.80 | 279.10 | -13.25 | 52.35 | 0.2812 | -1031.6 | 999999 | |
| 0.00 | 3.48 | 0.00 | 1.81 | 16.71 | 278.94 | -13.41 | 47.47 | 0.3028 | -672.0 | -721.0 | |
| 0.00 | 1.30 | 0.00 | 0.68 | 15.89 | 279.00 | -13.36 | 49.50 | 0.2935 | -552.0 | -445.1 | |
| 0.00 | 1.39 | 0.00 | 0.73 | 18.05 | 278.78 | -13.58 | 44.56 | 0.3196 | -705.0 | -521.2 | |
| 0.00 | 1.04 | 0.00 | 0.54 | 16.89 | 278.80 | -13.55 | 47.30 | 0.3065 | -638.0 | -558.0 | |
| 0.00 | 2.09 | 0.00 | 1.09 | 17.16 | 278.75 | -13.61 | 46.73 | 0.3101 | -459.0 | -279.3 | |
| 0.00 | 0.96 | 0.00 | 0.50 | 15.92 | 278.74 | -13.61 | 49.95 | 0.2970 | -7.0 | 21.5 | |
| 0.00 | 3.65 | 0.00 | 1.88 | 14.04 | 278.64 | -13.71 | 55.51 | 0.2803 | -908.0 | -728.3 | |
| 0.00 | 1.56 | 0.00 | 0.81 | 13.82 | 278.40 | -13.95 | 56.60 | 0.2817 | -867.0 | -609.7 | |
| 0.00 | 1.13 | 0.00 | 0.59 | 16.33 | 278.17 | -14.19 | 49.97 | 0.3085 | -717.0 | -481.6 | |
| 0.00 | 1.56 | 0.00 | 0.84 | 22.12 | 276.75 | -15.61 | 40.11 | 0.3886 | 781.0 | 608.2 | |
| 1.83 | 2.17 | 0.96 | 1.14 | 17.04 | 277.08 | -15.27 | 50.17 | 0.3294 | 978.1 | 720.8 | |
| 0.00 | 0.96 | 0.00 | 0.50 | 14.49 | 277.28 | -15.08 | 56.55 | 0.3032 | 934.0 | 729.9 | |
| 0.00 | 1.83 | 0.00 | 0.95 | 15.57 | 276.97 | -15.38 | 54.08 | 0.3169 | 881.0 | 657.3 | |
| 0.00 | 1.48 | 0.00 | 0.78 | 17.00 | 276.70 | -15.66 | 50.93 | 0.3339 | 1110.0 | 933.0 | |
| 0.00 | 2.43 | 0.00 | 1.27 | 16.27 | 276.73 | -15.63 | 52.69 | 0.3266 | 811.0 | 670.4 | |
| 0.00 | 1.13 | 0.00 | 0.59 | 16.99 | 276.44 | -15.92 | 51.38 | 0.3372 | 696.0 | 673.9 | |
| 0.00 | 1.65 | 0.00 | 0.87 | 17.33 | 276.41 | -15.94 | 50.62 | 0.3408 | 1028.0 | 852.3 | |
| 0.00 | 2.87 | 0.00 | 1.51 | 17.20 | 276.36 | -16.00 | 51.00 | 0.3403 | 472.0 | 678.0 | |
| 0.00 | 5.65 | 0.00 | 2.98 | 17.60 | 276.19 | -16.16 | 50.35 | 0.3462 | 467.0 | 730.3 | |
| 0.00 | 3.22 | 0.00 | 1.69 | 16.83 | 276.10 | -16.26 | 52.32 | 0.3401 | 1038.0 | 850.6 | |
| 0.00 | 0.96 | 0.00 | 0.50 | 16.52 | 276.06 | -16.30 | 53.13 | 0.3377 | 688.0 | 549.5 | |
| 0.00 | 2.87 | 0.00 | 1.52 | 17.50 | 275.84 | -16.51 | 51.15 | 0.3496 | 1033.0 | 916.4 | |
| 0.00 | 1.30 | 0.00 | 0.69 | 17.04 | 275.85 | -16.50 | 52.21 | 0.3452 | 775.0 | 598.9 | |
| 0.00 | 3.65 | 0.00 | 1.92 | 16.73 | 275.78 | -16.57 | 53.06 | 0.3433 | 881.0 | 714.0 | |
| 0.00 | 3.65 | 0.00 | 1.90 | 12.44 | 276.05 | -16.31 | 64.38 | 0.3055 | 966.0 | 760.8 | |
| 0.00 | 1.04 | 0.00 | 0.56 | 21.30 | 275.14 | -17.22 | 44.27 | 0.3968 | 897.0 | 714.9 | |
| 0.00 | 0.87 | 0.00 | 0.46 | 18.46 | 275.39 | -16.97 | 49.67 | 0.3647 | 832.0 | 727.9 | |
| 0.00 | 6.61 | 0.00 | 3.49 | 17.00 | 275.37 | -16.99 | 53.07 | 0.3511 | 1072.0 | 874.7 | |
| 0.00 | 2.35 | 0.00 | 1.26 | 20.80 | 274.93 | -17.43 | 45.56 | 0.3938 | 831.0 | 714.4 | |
| 0.00 | 1.13 | 0.00 | 0.60 | 18.58 | 275.14 | -17.21 | 49.79 | 0.3689 | 743.0 | 629.1 | |
| 0.00 | 11.65 | 0.00 | 6.17 | 17.36 | 275.23 | -17.12 | 52.41 | 0.3562 | 488.0 | 716.5 | |
| 0.00 | 1.39 | 0.00 | 0.75 | 20.58 | 274.82 | -17.53 | 46.15 | 0.3928 | 1047.0 | 823.5 | |
| 0.00 | 0.52 | 0.00 | 0.28 | 20.92 | 274.75 | -17.61 | 45.60 | 0.3972 | 532.0 | 564.7 | |
| 0.00 | 1.48 | 0.00 | 0.78 | 16.93 | 275.05 | -17.31 | 53.71 | 0.3547 | 808.0 | 703.5 | |
| 0.00 | 1.30 | 0.00 | 0.71 | 21.75 | 274.37 | -17.98 | 44.60 | 0.4101 | 709.0 | 567.2 | |
| 0.00 | 0.87 | 0.00 | 0.46 | 17.26 | 274.82 | -17.54 | 53.27 | 0.3606 | 775.0 | 661.8 | |
| 0.00 | 2.69 | 0.00 | 1.43 | 17.96 | 274.75 | -17.61 | 51.77 | 0.3679 | 756.0 | 629.5 | |
| 0.00 | 2.78 | 0.00 | 1.47 | 16.95 | 274.85 | -17.51 | 53.94 | 0.3575 | 683.0 | 546.8 | |
| 0.00 | 0.87 | 0.00 | 0.46 | 13.71 | 275.09 | -17.26 | 61.91 | 0.3282 | 885.0 | 724.8 | |
| 0.00 | 1.48 | 0.00 | 0.80 | 21.80 | 274.10 | -18.26 | 44.91 | 0.4138 | 721.0 | 526.8 | |
| 0.00 | 1.65 | 0.00 | 0.88 | 17.71 | 274.51 | -17.84 | 52.68 | 0.3687 | 582.0 | 523.3 | |
| 0.00 | 1.04 | 0.00 | 0.55 | 16.31 | 274.61 | -17.74 | 55.82 | 0.3550 | 745.0 | 540.6 | |
| 0.00 | 1.04 | 0.00 | 0.55 | 15.77 | 273.91 | -18.44 | 58.06 | 0.3603 | 699.0 | 588.2 | |
| 0.00 | 0.70 | 0.00 | 0.38 | 22.61 | 272.58 | -19.77 | 45.59 | 0.4389 | 623.0 | 546.8 | |
| 0.00 | 0.61 | 0.00 | 0.33 | 22.48 | 272.53 | -19.82 | 45.89 | 0.4382 | 812.0 | 649.4 | |
| 4.09 | 6.52 | 2.17 | 3.46 | 14.81 | 273.19 | -19.17 | 61.32 | 0.3634 | 940.5 | 800.9 | |
| 0.00 | 2.78 | 0.00 | 1.51 | 18.09 | 271.84 | -20.51 | 55.33 | 0.4067 | 837.0 | 609.3 | |
| 0.00 | 0.43 | 0.00 | 0.24 | 17.88 | 271.80 | -20.55 | 55.84 | 0.4055 | 704.0 | 517.4 | |
| 0.00 | 2.00 | 0.00 | 1.08 | 17.02 | 270.97 | -21.39 | 58.62 | 0.4102 | 748.0 | 541.9 | |
| 0.00 | 1.13 | 0.00 | 0.61 | 16.81 | 270.83 | -21.53 | 59.24 | 0.4105 | 681.0 | 576.8 | |
| 0.00 | 1.13 | 0.00 | 0.62 | 18.99 | 270.04 | -22.32 | 55.53 | 0.4374 | 695.0 | 580.9 | |
| 0.00 | 1.39 | 0.00 | 0.75 | 13.09 | 270.16 | -22.19 | 68.41 | 0.3974 | 778.0 | 640.4 | |
| 0.00 | 1.56 | 0.00 | 0.87 | 19.27 | 269.31 | -23.04 | 55.73 | 0.4490 | 731.0 | 505.3 | |
| 0.00 | 1.91 | 0.00 | 1.03 | 12.96 | 269.98 | -22.38 | 68.86 | 0.3995 | 707.0 | 669.7 | |
| 0.00 | 0.87 | 0.00 | 0.49 | 22.98 | 268.51 | -23.84 | 49.83 | 0.4890 | 650.0 | 507.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
