SDO HMI 2011-10-25 02:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 181.04 | 1091.59 | 120.30 | 741.50 | 8.04 | 249.41 | -42.94 | 83.82 | 0.6775 | -330.6 | -35.3 | |
|
previous
or next observation for the same group /

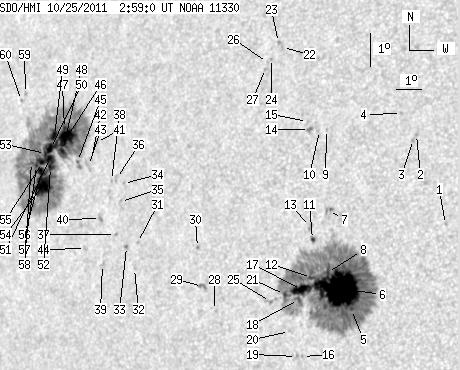

back to the solar disc SDO HMI 2011-10-25 02:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.39 | 0.00 | 0.82 | 8.53 | 259.34 | -33.01 | 82.15 | 0.5460 | -707.0 | -536.1 | |
| 0.00 | 1.30 | 0.00 | 0.78 | 11.17 | 257.98 | -34.37 | 77.66 | 0.5692 | -807.0 | -636.9 | |
| 0.00 | 1.74 | 0.00 | 1.05 | 11.01 | 257.89 | -34.46 | 77.95 | 0.5702 | -663.0 | -672.2 | |
| 0.00 | 0.96 | 0.00 | 0.58 | 11.77 | 257.34 | -35.01 | 76.77 | 0.5793 | -561.0 | -491.1 | |
| 0.78 | 562.65 | 0.48 | 348.56 | 5.83 | 256.14 | -36.22 | 87.07 | 0.5908 | -1183.0 | -378.9 | |
| 95.18 | -5.00 | 58.71 | -5.00 | 6.43 | 255.60 | -36.75 | 86.06 | 0.5982 | -1317.5 | 999999 | |
| 0.00 | 4.61 | 0.00 | 2.87 | 8.73 | 254.99 | -37.36 | 82.25 | 0.6076 | 494.0 | 508.2 | |
| 1.30 | -5.00 | 0.81 | -5.00 | 6.89 | 255.15 | -37.20 | 85.30 | 0.6046 | -685.5 | 999999 | |
| 0.00 | 0.96 | 0.00 | 0.60 | 11.15 | 254.59 | -37.76 | 78.36 | 0.6157 | -760.0 | -565.9 | |
| 0.00 | 0.61 | 0.00 | 0.38 | 11.10 | 254.33 | -38.03 | 78.48 | 0.6192 | -254.0 | -360.0 | |
| 1.48 | 2.35 | 0.93 | 1.47 | 7.84 | 254.48 | -37.87 | 83.76 | 0.6140 | -617.9 | -543.3 | |
| 2.35 | -5.00 | 1.47 | -5.00 | 6.71 | 254.56 | -37.80 | 85.61 | 0.6127 | -660.1 | 999999 | |
| 0.00 | 2.87 | 0.00 | 1.80 | 8.22 | 254.37 | -37.99 | 83.14 | 0.6158 | -608.0 | -416.2 | |
| 0.00 | 3.48 | 0.00 | 2.20 | 11.11 | 253.94 | -38.42 | 78.52 | 0.6244 | -744.0 | -628.0 | |
| 0.00 | 0.96 | 0.00 | 0.61 | 11.35 | 253.82 | -38.53 | 78.17 | 0.6263 | -715.0 | -535.8 | |
| 0.00 | 1.04 | 0.00 | 0.65 | 4.34 | 254.39 | -37.96 | 89.48 | 0.6156 | -588.0 | -561.1 | |
| 13.82 | -5.00 | 8.68 | -5.00 | 6.33 | 254.21 | -38.14 | 86.23 | 0.6175 | -880.4 | 999999 | |
| 2.35 | -5.00 | 1.48 | -5.00 | 6.02 | 254.12 | -38.23 | 86.72 | 0.6187 | -661.7 | 999999 | |
| 0.00 | 1.56 | 0.00 | 0.98 | 4.32 | 254.17 | -38.19 | 89.48 | 0.6188 | -773.0 | -608.9 | |
| 0.00 | 0.96 | 0.00 | 0.60 | 5.05 | 253.85 | -38.50 | 88.28 | 0.6227 | -463.0 | -378.5 | |
| 1.91 | -5.00 | 1.21 | -5.00 | 6.14 | 253.57 | -38.78 | 86.52 | 0.6262 | -459.1 | 999999 | |
| 0.00 | 1.39 | 0.00 | 0.90 | 13.51 | 252.44 | -39.91 | 75.06 | 0.6480 | -712.0 | -535.5 | |
| 0.00 | 1.22 | 0.00 | 0.79 | 13.65 | 252.26 | -40.10 | 74.88 | 0.6507 | -556.0 | -511.6 | |
| 0.00 | 0.87 | 0.00 | 0.57 | 13.15 | 252.07 | -40.28 | 75.68 | 0.6521 | -670.0 | -599.4 | |
| 0.00 | 3.91 | 0.00 | 2.50 | 5.90 | 253.05 | -39.30 | 86.89 | 0.6333 | -495.0 | -371.8 | |
| 0.00 | 1.04 | 0.00 | 0.68 | 13.02 | 251.94 | -40.42 | 75.90 | 0.6536 | -635.0 | -508.4 | |
| 0.00 | 0.96 | 0.00 | 0.62 | 12.84 | 251.89 | -40.46 | 76.19 | 0.6539 | -672.0 | -541.5 | |
| 0.00 | 0.52 | 0.00 | 0.34 | 5.51 | 250.88 | -41.48 | 87.43 | 0.6623 | -346.0 | -492.7 | |
| 0.00 | 4.52 | 0.00 | 3.00 | 6.20 | 250.33 | -42.03 | 86.39 | 0.6692 | -743.0 | -572.8 | |
| 0.00 | 1.22 | 0.00 | 0.81 | 7.34 | 250.00 | -42.35 | 84.67 | 0.6734 | -685.0 | -557.4 | |
| 0.00 | 1.04 | 0.00 | 0.73 | 7.34 | 247.50 | -44.85 | 84.69 | 0.7049 | 773.0 | 669.5 | |
| 0.00 | 1.04 | 0.00 | 0.73 | 6.56 | 247.47 | -44.89 | 85.80 | 0.7053 | 800.0 | 652.4 | |
| 0.00 | 1.74 | 0.00 | 1.22 | 7.19 | 247.05 | -45.30 | 84.90 | 0.7104 | 792.0 | 612.3 | |
| 0.00 | 1.13 | 0.00 | 0.80 | 9.06 | 246.65 | -45.71 | 82.29 | 0.7156 | 715.0 | 562.0 | |
| 0.00 | 0.96 | 0.00 | 0.68 | 8.52 | 246.60 | -45.75 | 83.05 | 0.7160 | 736.0 | 628.9 | |
| 0.00 | 2.78 | 0.00 | 1.98 | 9.19 | 246.32 | -46.03 | 82.12 | 0.7196 | 439.0 | 520.9 | |
| 0.00 | 1.30 | 0.00 | 0.92 | 7.52 | 246.53 | -45.82 | 84.45 | 0.7167 | 712.0 | 581.1 | |
| 0.00 | 0.87 | 0.00 | 0.62 | 9.12 | 246.12 | -46.24 | 82.23 | 0.7220 | 528.0 | 444.7 | |
| 0.00 | 1.74 | 0.00 | 1.24 | 6.59 | 246.09 | -46.27 | 85.74 | 0.7221 | 661.0 | 543.7 | |
| 0.00 | 2.87 | 0.00 | 2.06 | 7.96 | 245.82 | -46.54 | 83.85 | 0.7253 | 736.0 | 509.4 | |
| 0.00 | 2.61 | 0.00 | 1.89 | 10.20 | 245.25 | -47.10 | 80.78 | 0.7327 | 621.0 | 439.4 | |
| 0.00 | 1.22 | 0.00 | 0.88 | 9.71 | 245.12 | -47.23 | 81.45 | 0.7340 | 571.0 | 628.4 | |
| 0.00 | 4.61 | 0.00 | 3.35 | 9.50 | 245.03 | -47.32 | 81.75 | 0.7350 | 717.0 | 641.3 | |
| 0.00 | 2.26 | 0.00 | 1.64 | 7.02 | 245.29 | -47.07 | 85.14 | 0.7316 | 144.0 | 207.3 | |
| 1.30 | 3.82 | 0.96 | 2.81 | 9.59 | 244.52 | -47.84 | 81.66 | 0.7410 | 769.9 | 706.4 | |
| 16.25 | 455.99 | 12.10 | 343.82 | 10.27 | 243.88 | -48.47 | 80.77 | 0.7486 | 1114.0 | 274.7 | |
| 1.30 | -46.00 | 0.97 | -46.00 | 10.53 | 243.74 | -48.62 | 80.43 | 0.7504 | 778.8 | 999999 | |
| 2.09 | -46.00 | 1.56 | -46.00 | 9.87 | 243.78 | -48.58 | 81.31 | 0.7496 | 988.9 | 999999 | |
| 3.82 | -46.00 | 2.88 | -46.00 | 10.29 | 243.32 | -49.03 | 80.77 | 0.7550 | 742.9 | 999999 | |
| 4.43 | -46.00 | 3.34 | -46.00 | 9.89 | 243.22 | -49.13 | 81.30 | 0.7560 | 885.7 | 999999 | |
| 2.96 | -46.00 | 2.22 | -46.00 | 9.62 | 243.27 | -49.08 | 81.66 | 0.7553 | 1088.1 | 999999 | |
| 1.56 | -46.00 | 1.18 | -46.00 | 9.33 | 243.33 | -49.02 | 82.05 | 0.7546 | 1154.0 | 999999 | |
| 1.22 | -46.00 | 0.92 | -46.00 | 9.73 | 243.02 | -49.33 | 81.53 | 0.7582 | 706.8 | 999999 | |
| 18.34 | -46.00 | 13.86 | -46.00 | 8.77 | 243.06 | -49.29 | 82.80 | 0.7575 | 871.4 | 999999 | |
| 2.00 | -46.00 | 1.52 | -46.00 | 9.45 | 242.93 | -49.42 | 81.90 | 0.7591 | 737.4 | 999999 | |
| 4.43 | -46.00 | 3.36 | -46.00 | 9.18 | 242.94 | -49.41 | 82.25 | 0.7589 | 797.6 | 999999 | |
| 1.39 | -46.00 | 1.06 | -46.00 | 9.34 | 242.67 | -49.68 | 82.05 | 0.7619 | 324.0 | 999999 | |
| 0.78 | -46.00 | 0.60 | -46.00 | 9.42 | 242.42 | -49.93 | 81.96 | 0.7647 | 112.7 | 999999 | |
| 0.00 | 1.56 | 0.00 | 1.22 | 11.45 | 241.69 | -50.67 | 79.35 | 0.7737 | -409.0 | -262.5 | |
| 0.00 | 0.96 | 0.00 | 0.75 | 11.23 | 241.55 | -50.81 | 79.64 | 0.7751 | -489.0 | -381.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
